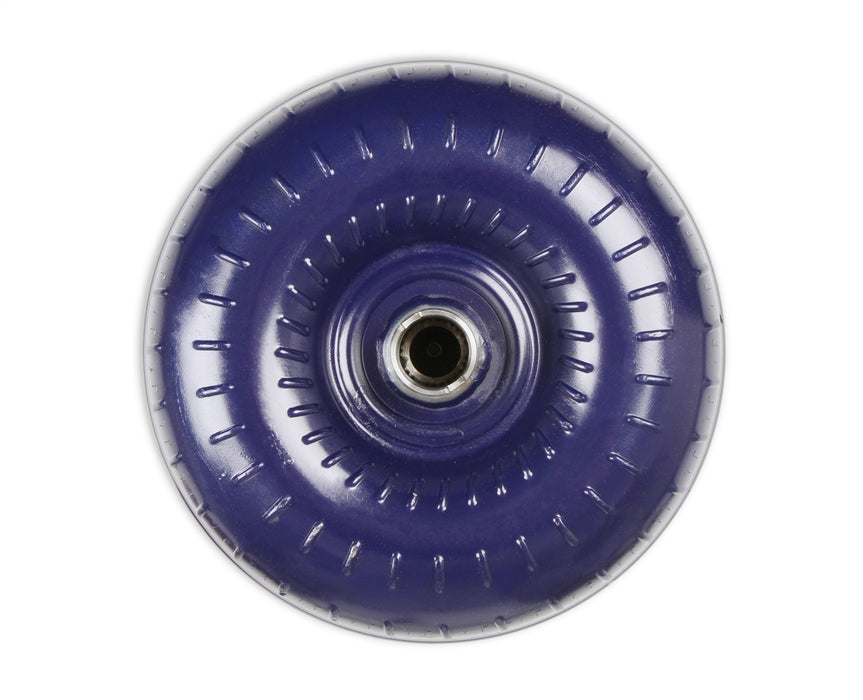

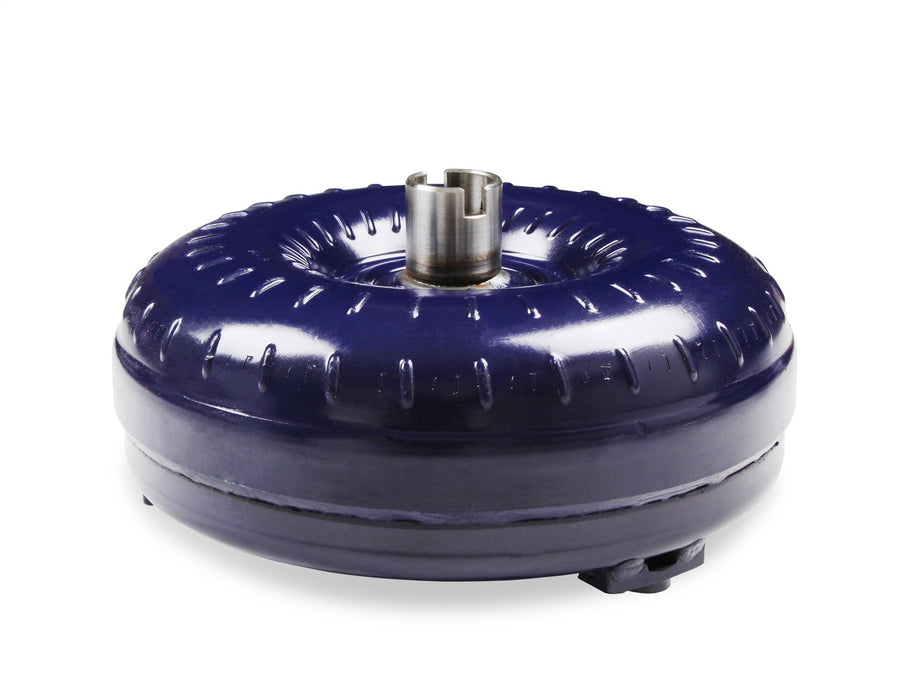

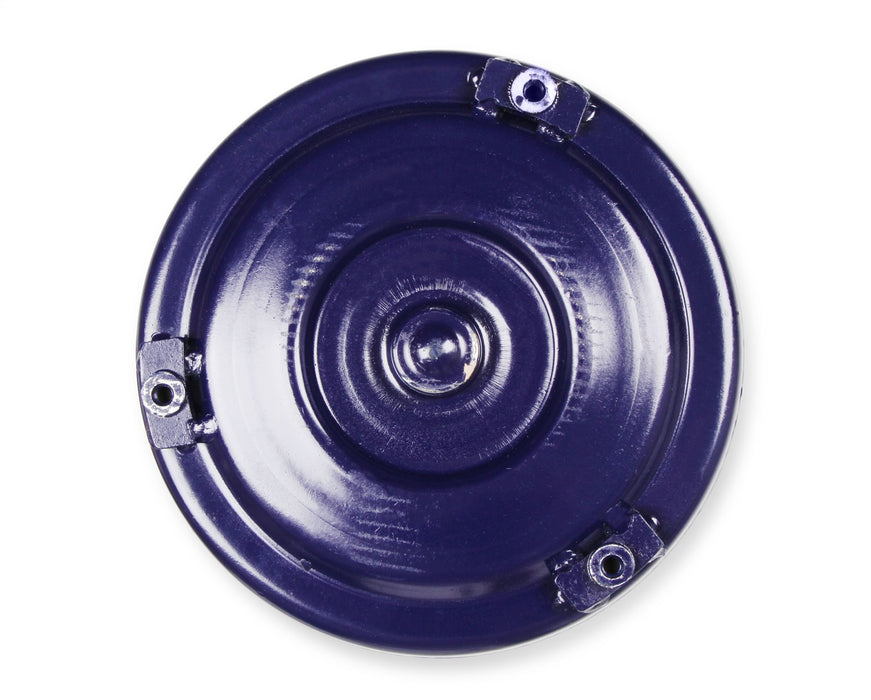

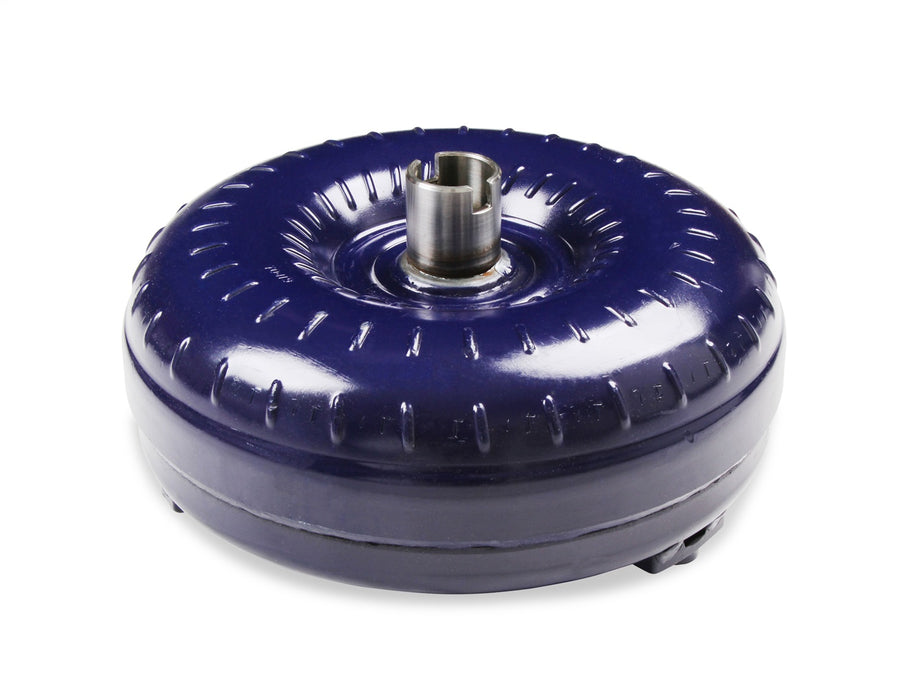

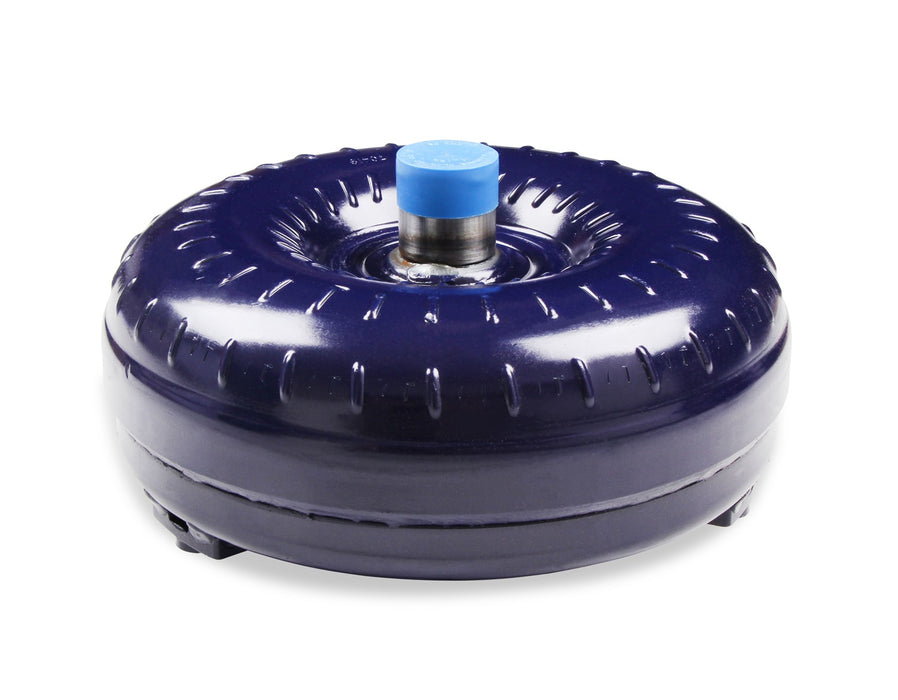

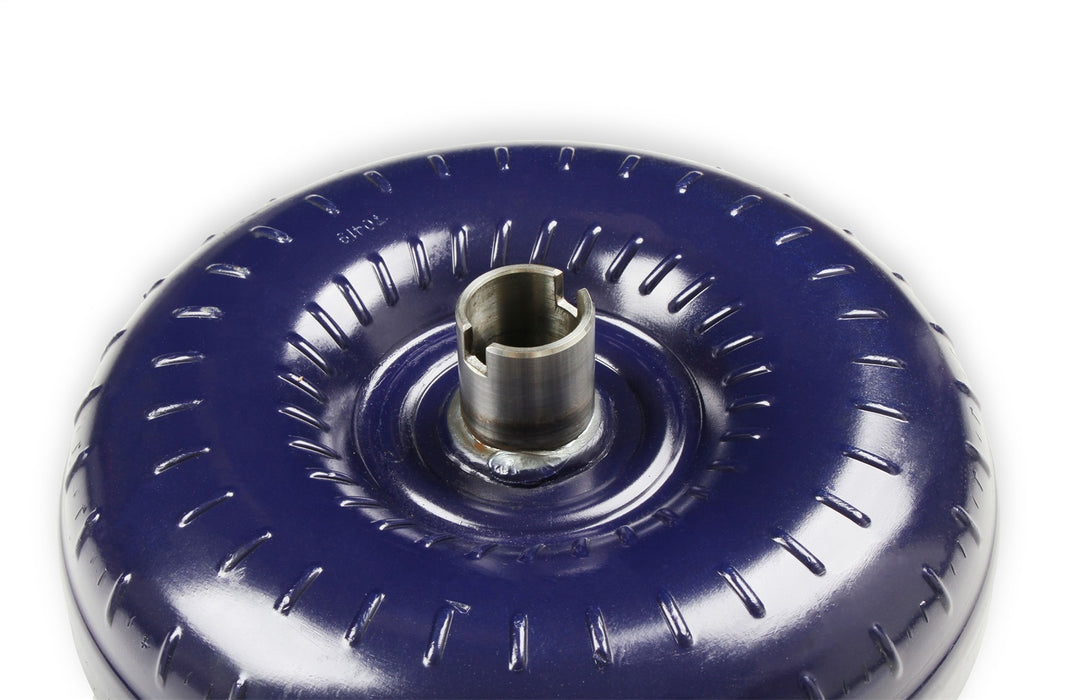

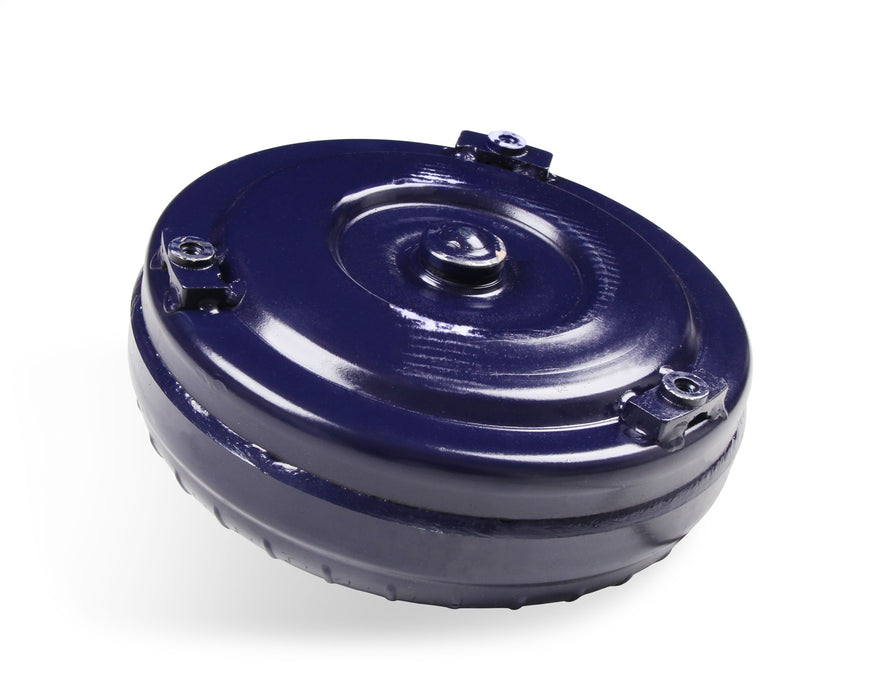

B&M 70419 Holeshot 2400 Torque Converter
by B&M
SKU ds_BBFT_70419
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,147.71
-
Original price
$1,147.71
Original price
$1,147.71
$1,147.71
$1,147.71
-
$1,147.71
Current price
$1,147.71
Availability:
Only 3 left!
Description
HoleShot 2400 for GM 1993 to 1996 TH700R4 (30 spline) and 1984 to 1993 4L60E (30 spline) Application: HoleShot 2400 for GM 1993 to 1996 TH700R4 (30 spline) and 1984 to 1993 4L60E (30 spline) A higher than stock stall speed as delivered by the Holeshot converter will provide several advantages and benefits in vehicles with modified engines. Many modifications, particularly big cams, tend to reduce low end power and torque. The high stall converter allows the engine to launch the car at higher rpm where more torque is available. The Holeshot is generally a very good choice for the typical street machine that is looking for better launch capability and more strength. Street rods with modified engines will also benefit from a Holeshot converter. If your vehicle is equipped with a plate type nitrous system, you will need a Nitrous Holeshot!! Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Furnace brazed impeller. New precision steel alloy pump drive tube. New heavy duty needle bearing between stator and impeller (not a thrust washer). Needle bearing between stator and turbine. Furnace brazed turbine. Dual pattern drive lugs on some GM Holeshots. New turbine hub. New springs and rollers in stator.
Resources
Installation InstructionsSpecifications
| Automotive Item Grade | High Performance |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits 1993 to 1996 GM TH700R4 automatic transmission and accepts a 30 splined shaft. Also fits 1984 to 1993 4L60E automatic transmission and accepts a 30 splined shaft. |
| Description_DEF | Auto Trans Torque Converter |
| Description_DEF | Automatic Transmission Torque Converter |
| Description_DES | Holeshot 2400 Torque Converter |
| Description_EXT | Holeshot 2400 Torque Converter; 2300 - 2500 RPM Stall; 30 Spline; Retains Lockup Feature; |
| Description_FAB | Between Stator and Turbine |
| Description_FAB | Furnace Brazed Impeller |
| Description_FAB | Furnace Brazed Turbine |
| Description_FAB | Heavy Duty Needle Bearing |
| Description_FAB | New Springs/Rollers In Stator |
| Description_FAB | New Turbine Hub |

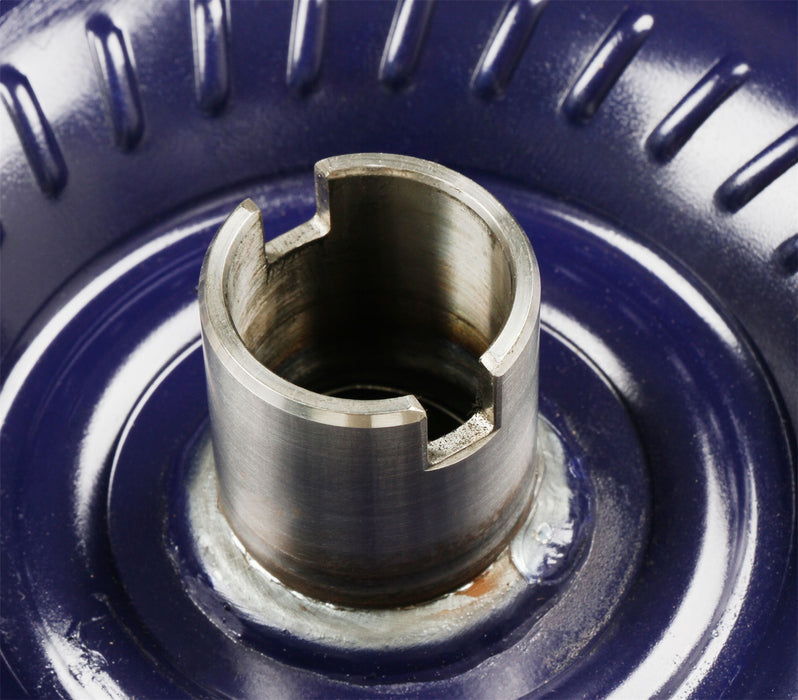

| Description_FAB | Steel Alloy Pump Drive Tube |
| Description_INV | HOLESHOT 2400 30 SPLINE W/CLUTCH |
| Description_KEY | 70419; Torque Converter; B/M; b and m; transmission; manual; automatic; shift kit; improver; transkit; racing; knob; lever; torque converter |
| Description_LAB | Made In Logo |
| Description_MKT | HoleShot 2400 for GM 1993 to 1996 TH700R4 (30 spline) and 1984 to 1993 4L60E (30 spline) Application: HoleShot 2400 for GM 1993 to 1996 TH700R4 (30 spline) and 1984 to 1993 4L60E (30 spline) A higher than stock stall speed as delivered by the Holeshot converter will provide several advantages and benefits in vehicles with modified engines. Many modifications, particularly big cams, tend to reduce low end power and torque. The high stall converter allows the engine to launch the car at higher rpm where more torque is available. The Holeshot is generally a very good choice for the typical street machine that is looking for better launch capability and more strength. Street rods with modified engines will also benefit from a Holeshot converter. If your vehicle is equipped with a plate type nitrous system, you will need a Nitrous Holeshot!! Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Furnace brazed impeller. New precision steel alloy pump drive tube. New heavy duty needle bearing between stator and impeller (not a thrust washer). Needle bearing between stator and turbine. Furnace brazed turbine. Dual pattern drive lugs on some GM Holeshots. New turbine hub. New springs and rollers in stator. |
| Description_MKT | This Holeshot 2400 fits 1984-93 GM 700R4/4L60 w/30 spline input, 1993-97 4L60E w/30 spline input and 1997-04 Corvette transmissions. This converter retains the lockup feature. Holeshot torque converters are for serious-minded performance enthusiasts and offer additional strength and durability features not found in our Tork Master or Traveler series of converters. The Holeshot 2400 converter is an excellent choice for vehicles with some performance engine modifications, particularly big cams that tend to reduce low-end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Holeshot converters feature furnace brazed impeller fins and turbine, new precision alloy impeller hub and new heavy duty needle bearings. Other features include fully balanced and pressure tested by expert technicians. Notes: Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. Higher stall converters can generate more heat, so we highly recommend adding a transmission cooler. This converter is Not recommended for supercharged, plate-type nitrous oxide or trans-brake applications. The product images shown are for illustration purposes only and may not be an exact representation of the product. 10.75-inch bolt circle. |
| Description_SHO | Torque Converter |
| Furnace-Brazed | Yes |
| height | 7.3 |
| Indicator Light Included | No |

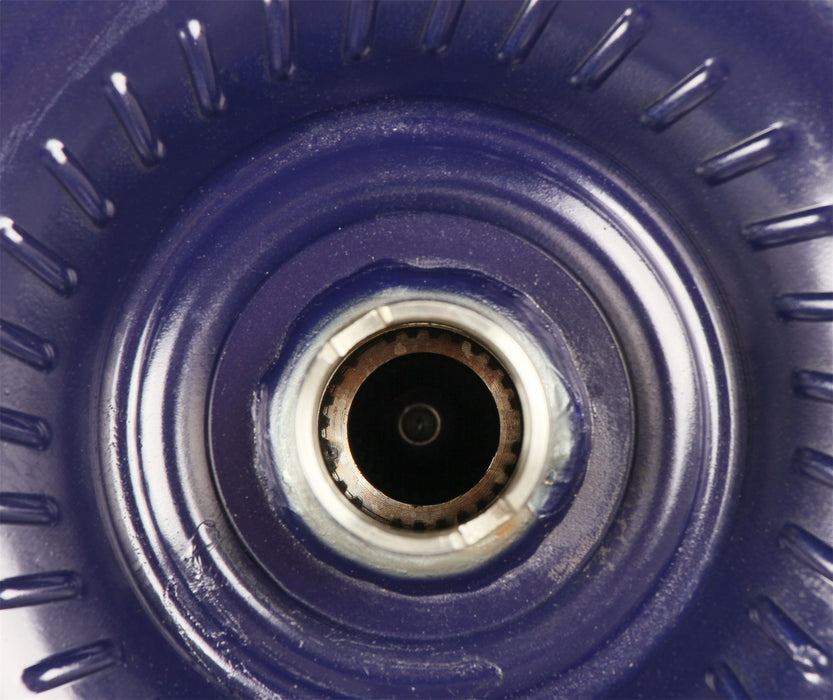

| Input Shaft Spline Quantity | 30 |
| length | 15.2 |
| LTL | N |
| Material | Steel |
| Stall Speed (RPM) | 2300-2500 |
| Title | B&M 70419 Holeshot 2400 |
| Trans Model | GM- 4L60E (Auto) 4 Speed |
| Trans Model | GM- TH700 R4 (Auto) 4 Speed |
| Trans Year | 1984 |
| Trans Year | 1985 |
| Trans Year | 1986 |
| Trans Year | 1987 |
| Trans Year | 1988 |
| Trans Year | 1989 |
| Trans Year | 1990 |
| Trans Year | 1991 |
| Trans Year | 1992 |
| Trans Year | 1993 |
| Trans Year | 1994 |
| Trans Year | 1995 |
| Trans Year | 1996 |
| WARNING CA Proposition 65 | No |
| weight | 33.7 |
| width | 14.0 |
