B&M 70396 Hi-Tek Transmission Oil Pan
by B&M
SKU ds_BBFT_70396
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$725.10
-
Original price
$725.10
Original price
$725.10
$725.10
$725.10
-
$725.10
Current price
$725.10
Availability:
Out of stock
Description

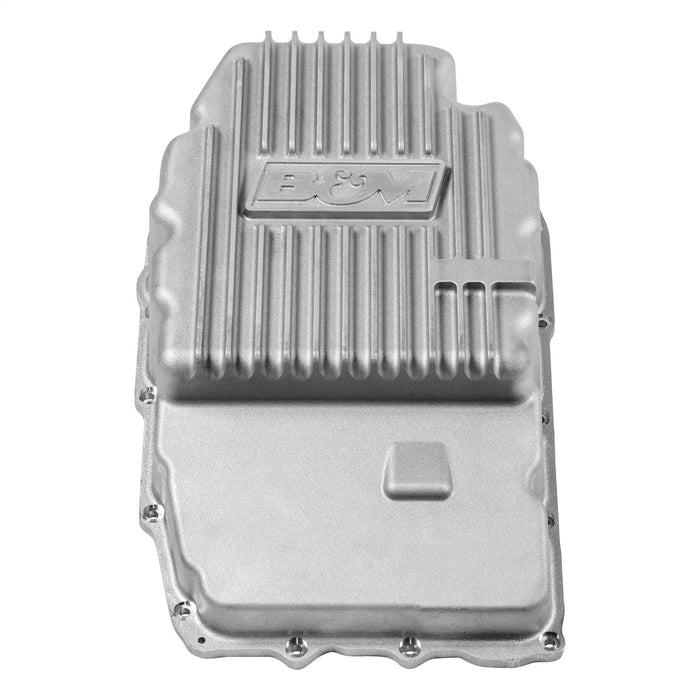

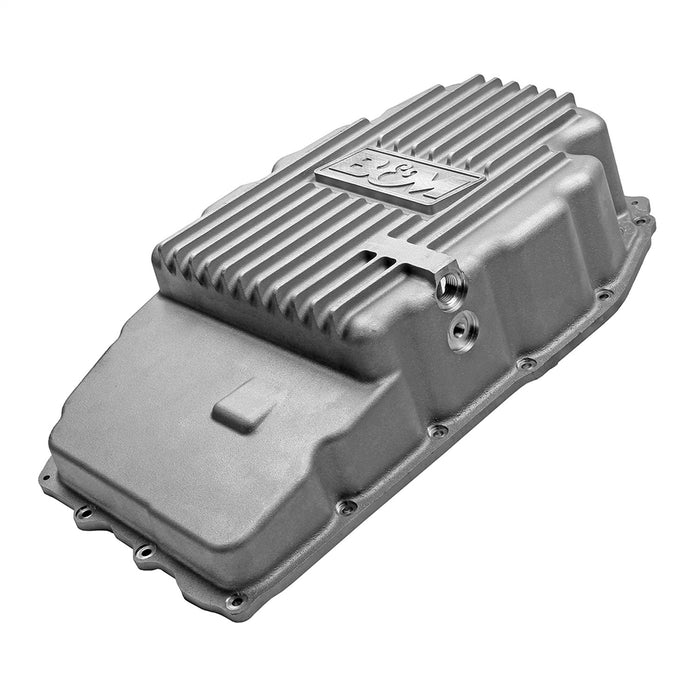

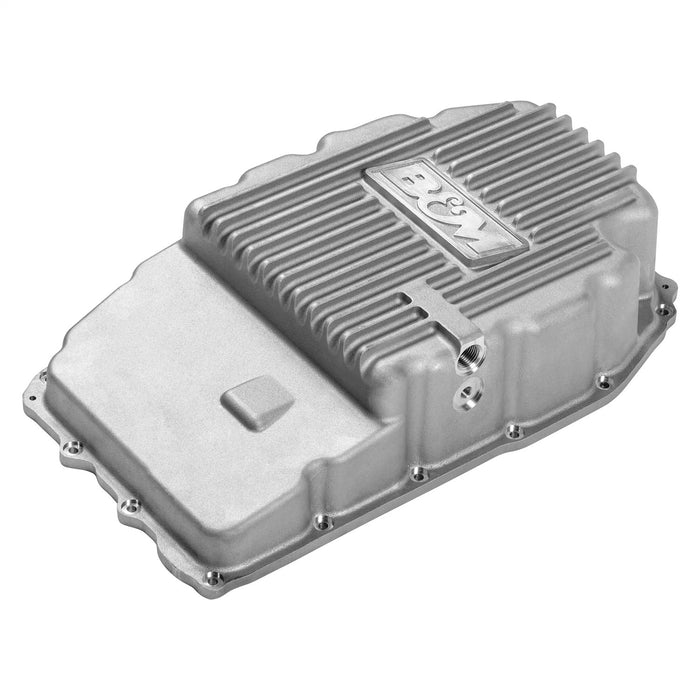

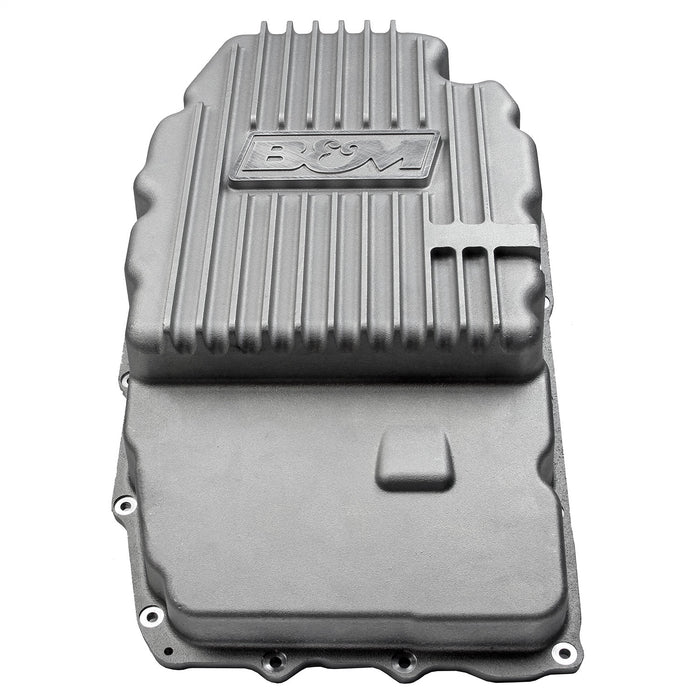

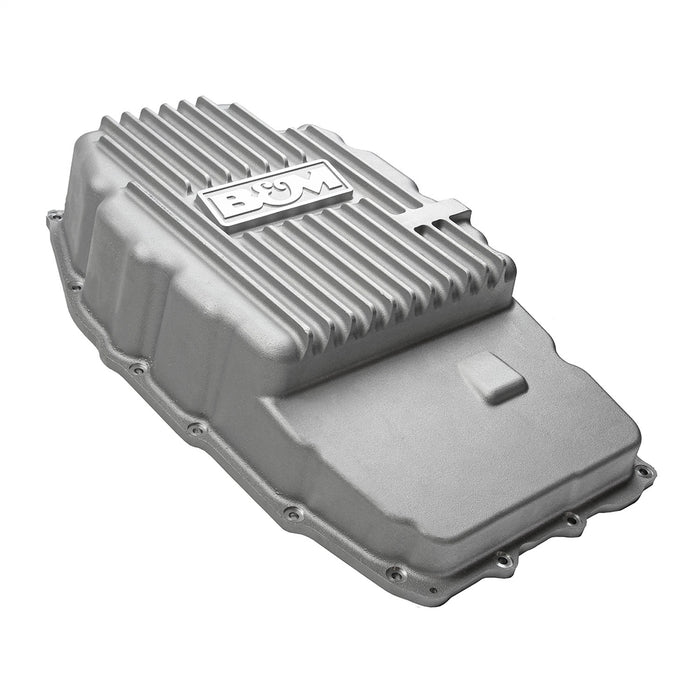

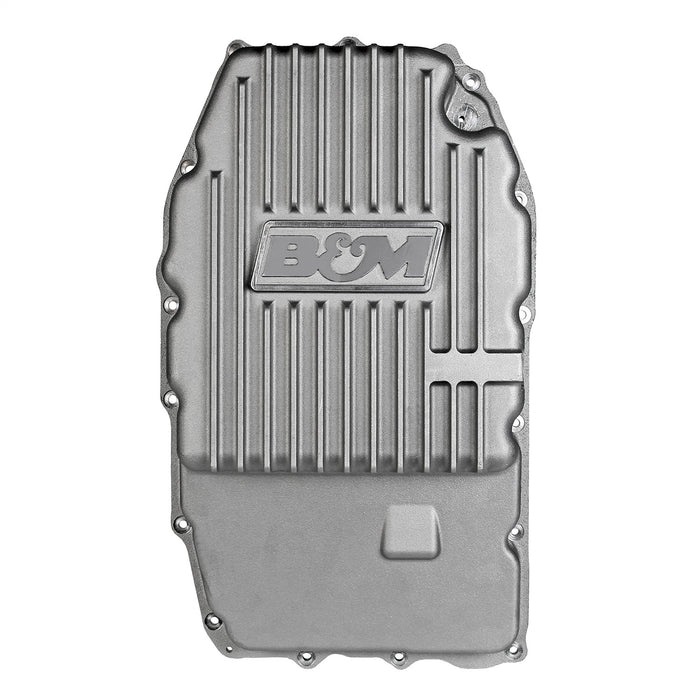

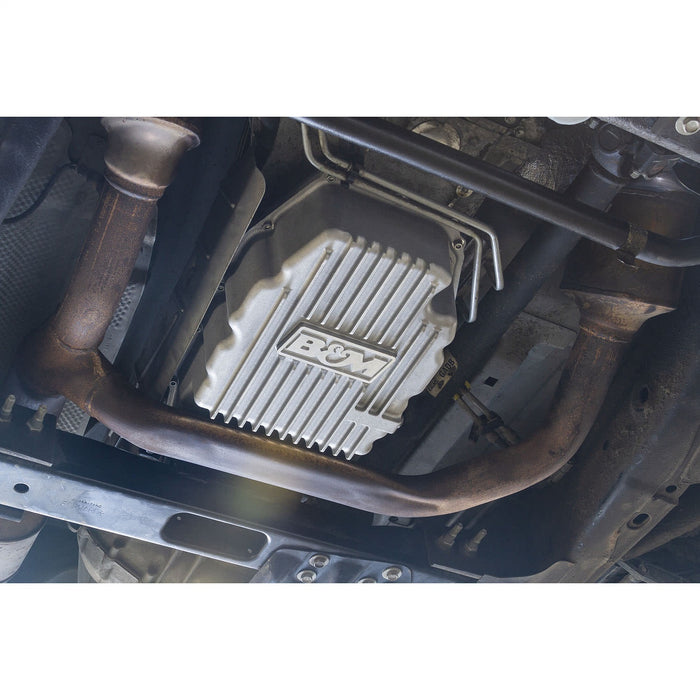

This B&M Hi-Tek deep trans pan is designed for 2015-2018 GM full size 1500 truck and SUV models with the 8L90E 8-speed automatic transmission. The pan adds 3.4 US quarts of additional fluid capacity for improved cooling efficiency over the stock transmission pan by using high quality cast aluminum. The Hi-Tek pan also incorporates external cooling fins which not only look good, but are also functional by increasing the surface area to help dissipate heat much quicker than the OEM stamped steel flat transmission pans. Additional features include an engraved B&M logo, a magnetic drain plug for catching ferrous metals, a temperature sensor port and mounting hardware. Gasket and filter not included.
Resources
Installation InstructionsSpecifications
| Additional Fluid Capacity | 3.40 pq. |
| Bolt Quantity | 15 |
| Bolts Or Studs Included | Yes |
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits 2015 to 2018 GM Full Size Truck and SUV with an 8L90E 8-Speed Automatic Transmission. |
| Description_DEF | Transmission Oil Pan |
| Description_DES | Hi-Tek Transmission Oil Pan |
| Description_EXT | Hi-Tek Transmission Oil Pan; Additional 3.5 Qts.; Incl. Magnetic Drain Plug/Temp Sensor Port/Mounting Hardware; Cast Aluminum; Engraved Logo; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Engraved B&M Logo |
| Description_FAB | Magnetic Drain Plug For Easy Servicing |
| Description_FAB | More Cooling Ability |
| Description_INV | CAST TRANS PAN; GM 8L90 |
| Description_KEY | 70396;b/m;cast;aluminum;transmission;pan;8l90e;automatic |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |

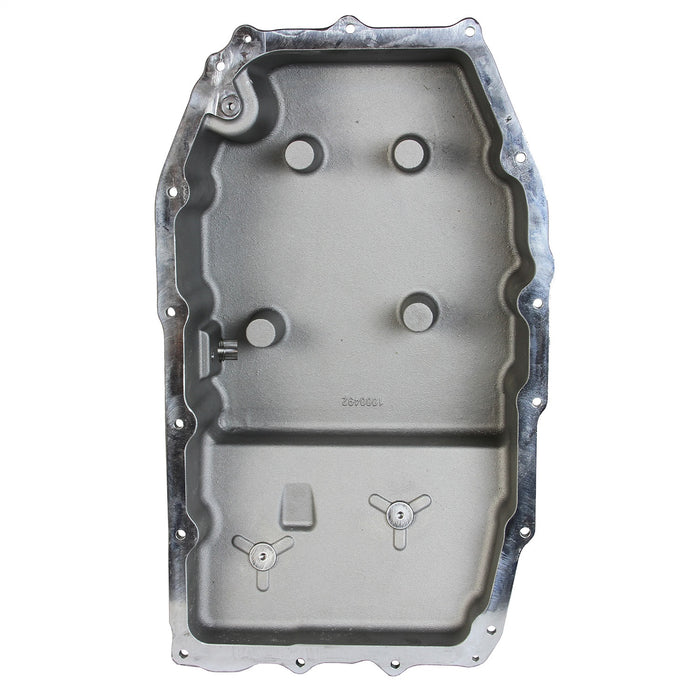

| Description_MKT | Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan. |
| Description_MKT | This B&M Hi-Tek deep trans pan is designed for 2015-2018 GM full size 1500 truck and SUV models with the 8L90E 8-speed automatic transmission. The pan adds 3.4 US quarts of additional fluid capacity for improved cooling efficiency over the stock transmission pan by using high quality cast aluminum. The Hi-Tek pan also incorporates external cooling fins which not only look good, but are also functional by increasing the surface area to help dissipate heat much quicker than the OEM stamped steel flat transmission pans. Additional features include an engraved B&M logo, a magnetic drain plug for catching ferrous metals, a temperature sensor port and mounting hardware. Gasket and filter not included. |
| Description_SHO | Auto Trans Oil Pan |
| Drain Plug Included | Yes |
| Filler Plug Included | No |
| finish | Natural |
| Gasket Or Seal Included | No |

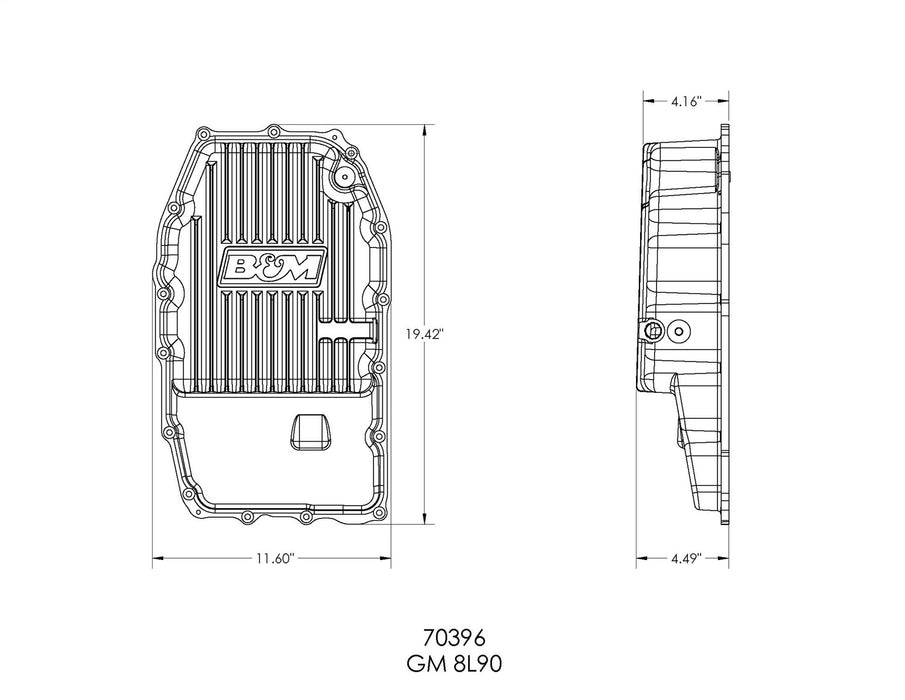

| height | 7.6 |
| length | 20.2 |
| LTL | N |
| Material | A356.0-T6 Aluminum |

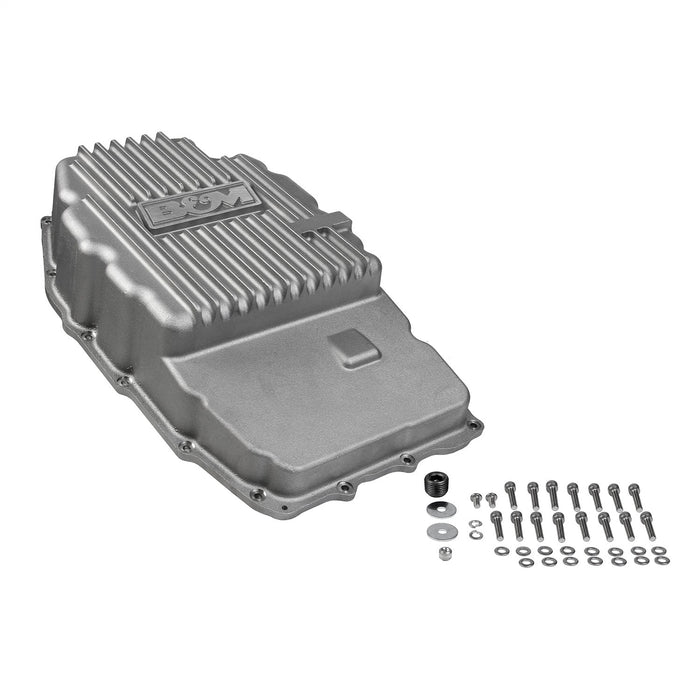

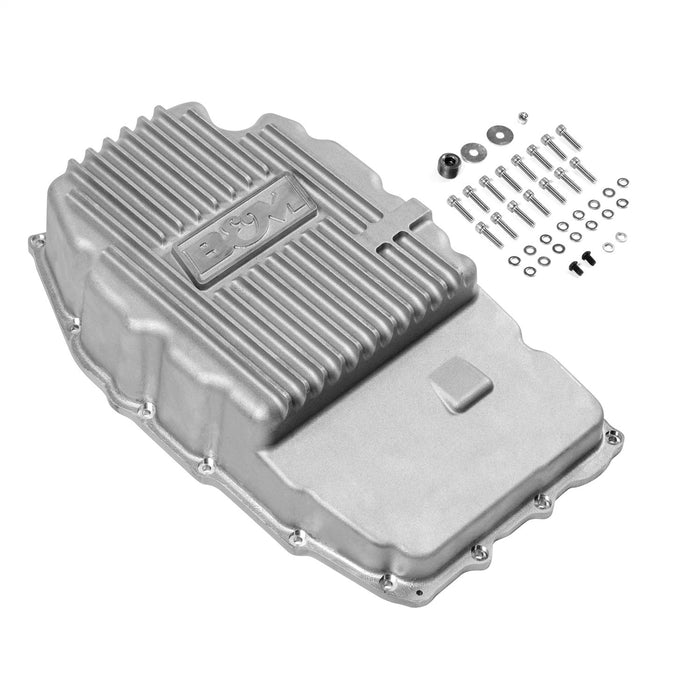

| Package Contents | Pan, Hardware |
| Trans Model | 8L90E |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 12.91 |
| width | 12.9 |
