Description

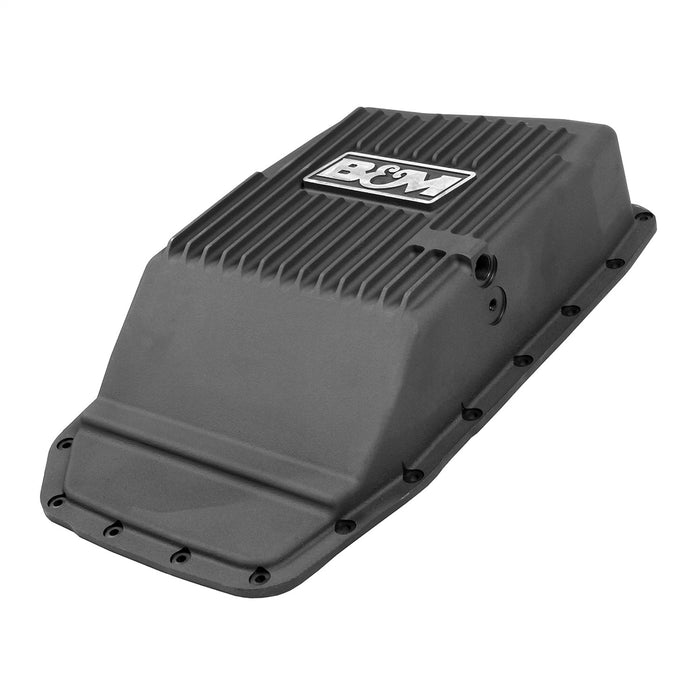

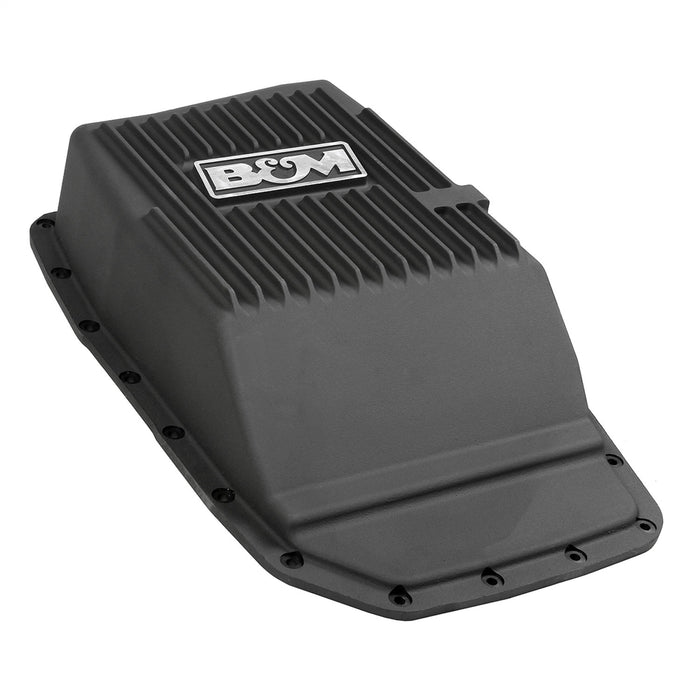

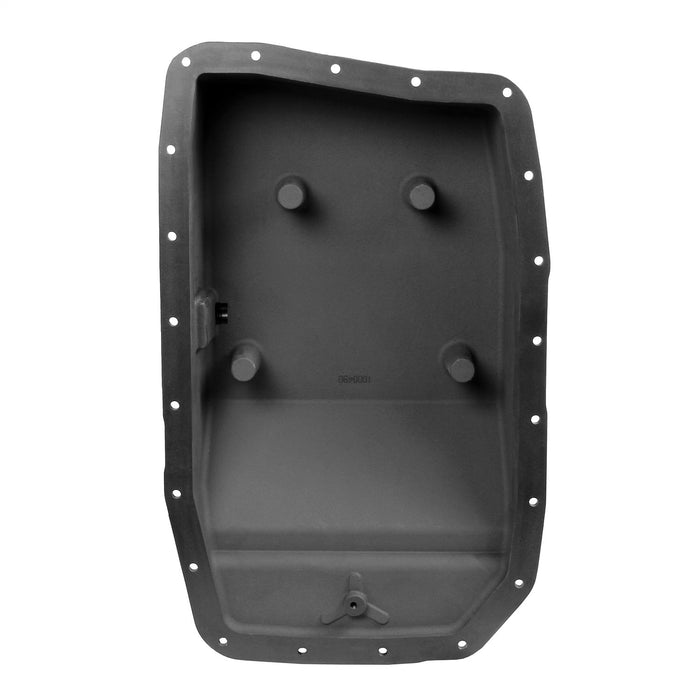

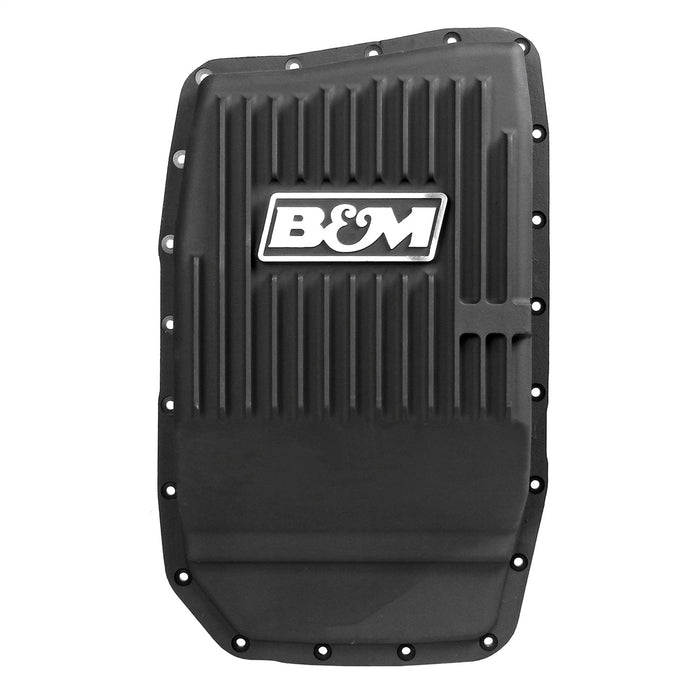

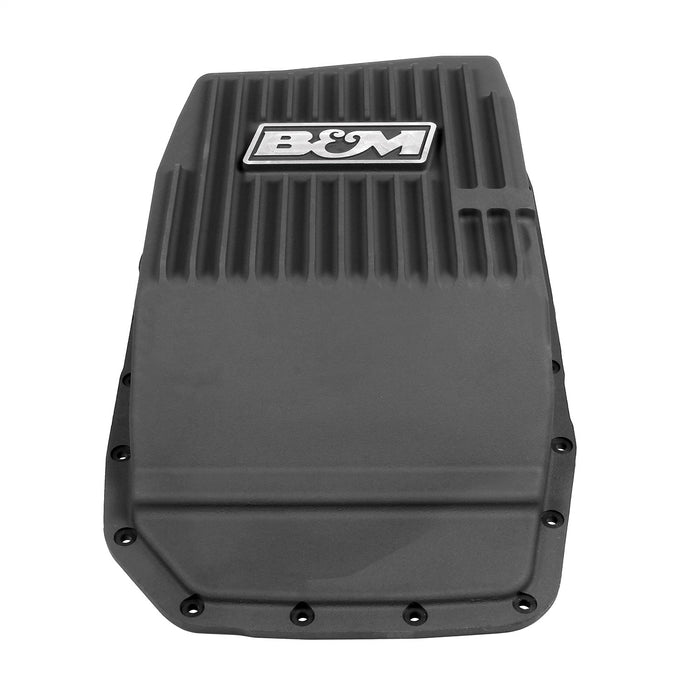

B&M's Hi-Tek line of Deep Aluminum Transmission Pans are constructed of thick A356.0-T6 cast aluminum and feature a durable black anodized finished. Designed to fit 2009-2018 Ford F150 trucks with the 6R80 transmission, these finned deep trans pans significantly increase the fluid capacity and dissipate heat much faster to prolong the life of the transmission and related components. Additional features include an engraved B&M logo, drain port, temperature sensor fitting, magnetic drain plug and complete hardware and installation instructions.
Resources
Installation InstructionsSpecifications
| Additional Fluid Capacity | 3.25 qt. |
| Bolt Quantity | 21 |
| Bolts Or Studs Included | Yes |
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Color | Black Anodized |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits 2009 to 2018 Ford F-150 and similar models with a 6R80 automatic transmission. Will Not Fit Mustang |
| Description_DEF | Transmission Oil Pan |
| Description_DES | Transmission Oil Pan |
| Description_EXT | Transmission Oil Pan; Deep; Incl. Temp Sensor Port/Magnetic Drain Plug/Mounting Hardware; Adds An Additional 3.2 qts.; Cast Aluminum; Black Anodized; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Black Anodized Finish |
| Description_FAB | Durable A356 Aluminum Construction |
| Description_FAB | Fill Plug And Magnetic Drain Plug |
| Description_FAB | Limited Lifetime Warranty |
| Description_INV | 2009-2021 FORD F150 CAST TRANS PAN; 6R80 |
| Description_KEY | 70394; B/M; transmission pan; aluminum; black; anodized; Forde 6R80; 6R80 |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | B&M's Hi-Tek line of Deep Aluminum Transmission Pans are constructed of thick A356.0-T6 cast aluminum and feature a durable black anodized finished. Designed to fit 2009-2018 Ford F150 trucks with the 6R80 transmission, these finned deep trans pans significantly increase the fluid capacity and dissipate heat much faster to prolong the life of the transmission and related components. Additional features include an engraved B&M logo, drain port, temperature sensor fitting, magnetic drain plug and complete hardware and installation instructions. |
| Description_MKT | Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.25-quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8-inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: 6R80 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers an optional 6R80 locking dipstick part #22200 to measure transmission fluid level. Note: Does Not Fit Mustangs. |
| Description_SHO | Auto Trans Oil Pan |
| Drain Plug Included | Yes |
| Filler Plug Included | No |
| finish | Black Anodized |
| Gasket Or Seal Included | No |

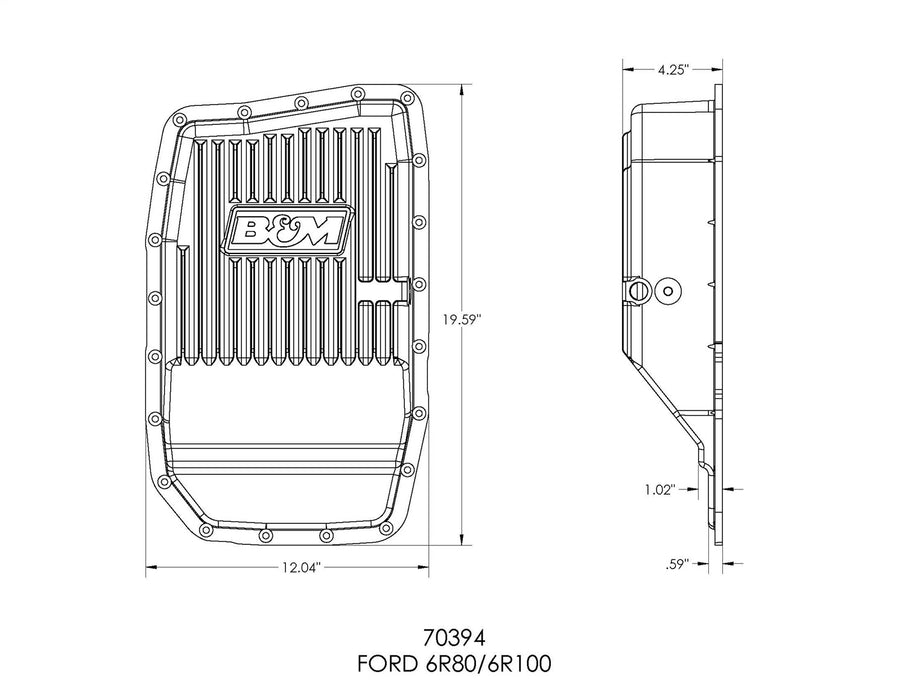

| height | 7.5 |
| length | 19.9 |
| LTL | N |
| Material | A356.0-T6 Aluminum |
| Package Contents | Transmission Pan and Installation Hardware |
| Trans Model | 6R80 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 10.1 |
| width | 13.0 |
