B&M 70298 Hi-Tek Automatic Transmission Oil Cooling System
by B&M
SKU ds_BBFT_70298
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$610.97
-
Original price
$610.97
Original price
$610.97
$610.97
$610.97
-
$610.97
Current price
$610.97
Availability:
Out of stock
Description
Hi-Tek Super Coolers are fitted with a high quality 12 Volt electric fans and built in mounting brackets which makes it ideal for maximum cooling. Suitable for many fluids including ATF, Engine Oil, Differential Oil and power steering fluid.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| California Proposition 65 Chemical Name 1 | Lead |
| California Proposition 65 Chemical Name 2 | Chromium (hexavalent compounds) |
| Depth | 4.000 in. |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Dimensions 10 x 7-12 x 4 with 7 diameter fan. 6 Amp capacity |
| Description_DEF | Auto Trans Oil Cooler |
| Description_DEF | Automatic Transmission Oil Cooler |
| Description_DES | Hi-Tek Automatic Transmission Oil Cooling System |
| Description_EXT | Hi-Tek Automatic Transmission Oil Cooling System; 10x7.5x4 in.; Female 0.5 in. NPT Fittings; w/7 in. Diameter Fan@350CFM; 6 Amps; |
| Description_FAB | 0.5 in. NPT Fittings Easily Adaptable To AN Fittings |
| Description_FAB | 1 Year Limited Warranty |
| Description_FAB | Black Finish |
| Description_FAB | Fin And Plate Cooler Construction |
| Description_FAB | Ideal For the Toughest Cooling Applications |
| Description_FAB | Includes 12 Volt High Flow Fan |
| Description_FAB | Pressure Tested To 200 PSI |
| Description_FAB | Suitable For All Fluid Cooling Needs |
| Description_FAB | Thermal Switch Included Activates Fan At 175 deg. |
| Description_INV | HI TEK COOLING SYSTEM |
| Description_KEY | 70298; Cooler; B/M; b and m; transmission; manual; automatic; shift kit; improver; transkit; racing; knob; lever; torque converter |
| Description_MKT | Hi-Tek Super Coolers are fitted with a high quality 12 Volt electric fans and built in mounting brackets which makes it ideal for maximum cooling. Suitable for many fluids including ATF, Engine Oil, Differential Oil and power steering fluid. |

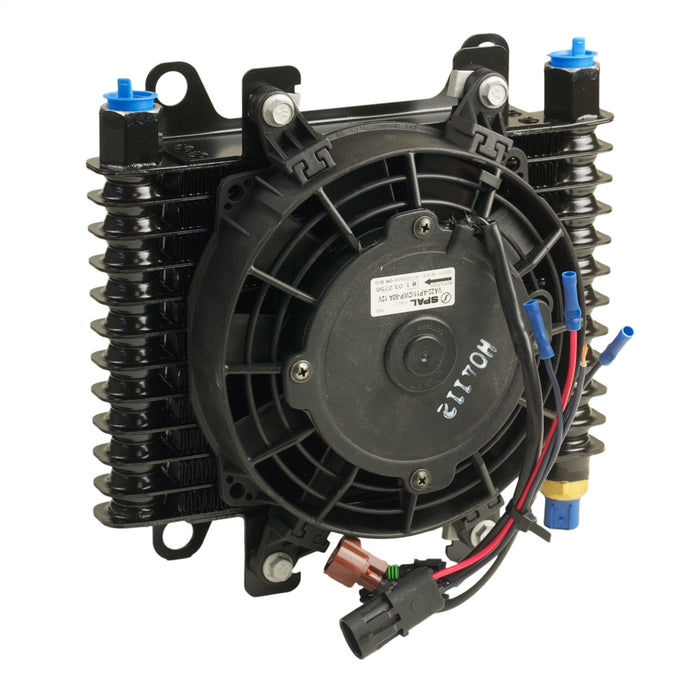

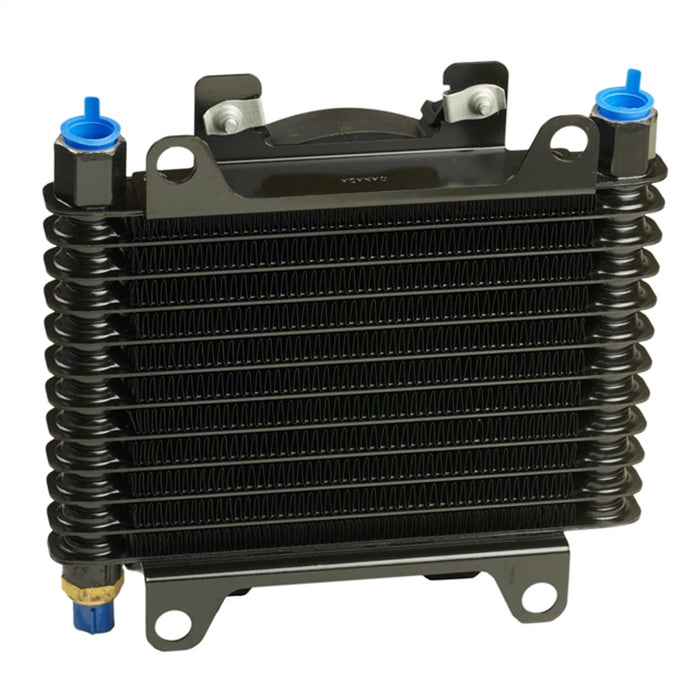

| Description_MKT | This B&M Hi-Tek SuperCooler features a fin and plate design, is fitted with a high quality 12-volt electric fan for maximum cooling efficiency and can be mounted in tight spaces. The cooler features built-in attachment points, making mounting the fan a breeze and the cooler is suitable for many fluids including transmission fluids, engine oils, differential oil, and power steering fluid. The 12-volt high capacity 6-amp suction fan cranks out 350cfm and includes a replaceable thermal fan switch set to turn the fan once the temp hits 175 degrees. SuperCoolers are pressure tested to 200 PSI. 1/2-inch NPT inlet and outlet. 10-inches x 7.5-inches x 4-inches with a 7-inch diameter fan. |
| Description_SHO | A/TOilCooler |
| Design | Tube and Fin |
| Gross Vehicle Weight | 14000 lbs. |
| height | 4.3 |
| Inlet Attachment Type | Female Threads |
| Inlet Size | 0.500 in. NPT |
| Item Height | 7.500 in. |
| length | 7.9 |
| Low Temperature Bypass | No |
| LTL | N |
| Material | Aluminum |
| Outlet Size | 0.500 in. NPT |
| Package Contents | Cooler and fan assembly |
| Row Quanity | 10 |
| Title | B&M 70298 Cooler, Medium Hi Tek Cooling System with Fan, 350 CFM Rating |
| WARNING CA Proposition 65 | No |
| weight | 5.2 |
| width | 10.000 in. |
| width | 10.4 |
