B&M 40295 Transmission Oil Pan
by B&M
SKU ds_BBFT_40295
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$595.49
-
Original price
$595.49
Original price
$595.49
$595.49
$595.49
-
$595.49
Current price
$595.49
Availability:
Out of stock
Description
Add fluid capacity to your transmission. Extra fluid means more cooling, and more cooling means better efficiency and performance. Add life to your transmission with a B&M Deep Pan!
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Additional Fluid Capacity | 3.50 qt. |
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits Ford E40D;4R100 and 5R100 TorqShift automatic 5 speed transmissions Adds 3.5 quarts of fluid capacity. |
| Description_DEF | Auto Trans Oil Pan |
| Description_DEF | Transmission Oil Pan |
| Description_DES | Transmission Oil Pan |
| Description_EXT | Transmission Oil Pan; Deep; Incl. Drain Plug/Mounting Hardware; Adds An Additional 3.5 qts.; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Built-In Drain Plugs |
| Description_FAB | Cast Aluminum |
| Description_FAB | More Cooling Ability |
| Description_FAB | No Dipstick Modification |
| Description_FAB | Some Include Fluid Pickup Extension |
| Description_INV | CAST PAN DEEP W/TORQ SHIFT/6.0PS DI |
| Description_KEY | 40295; Transmission Pan; B/M; b and m; transmission; manual; automatic; shift kit; improver; transkit; racing; knob; lever; torque converter; torque; shift; e40d; 4r100; 5r100; deep; pan; cast; ford; lincoln; mercury; mustang |
| Description_LAB | Made In Logo |
| Description_MKT | Add fluid capacity to your transmission. Extra fluid means more cooling, and more cooling means better efficiency and performance. Add life to your transmission with a B&M Deep Pan! |

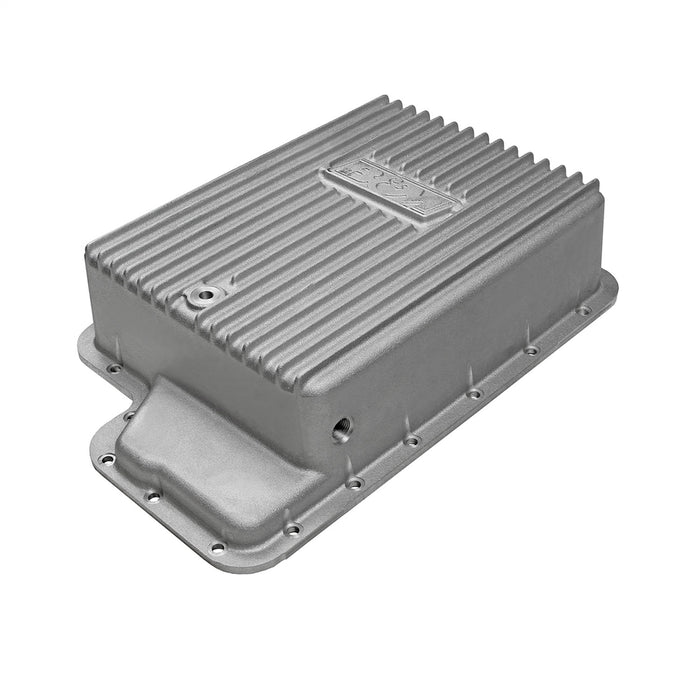

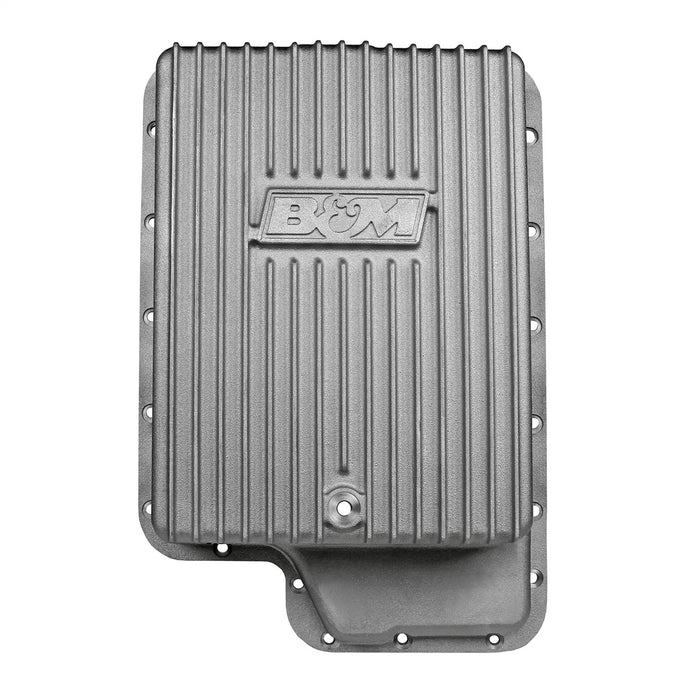

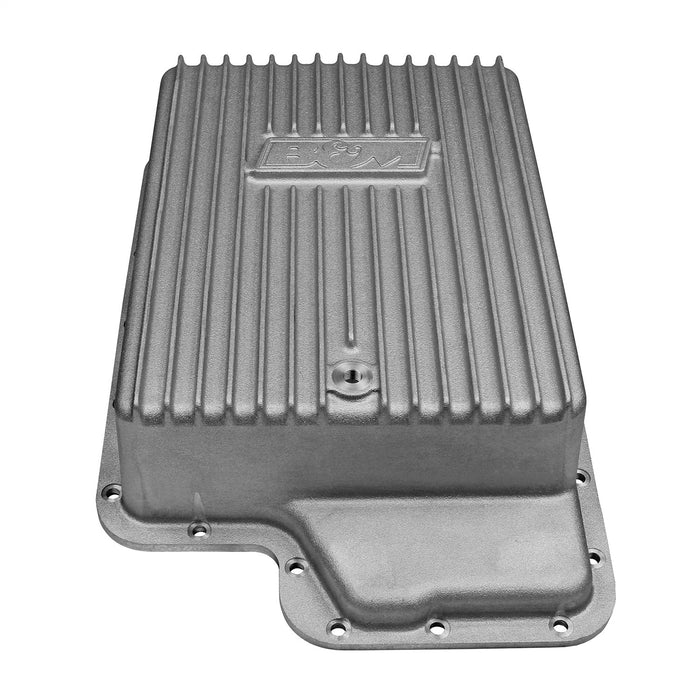

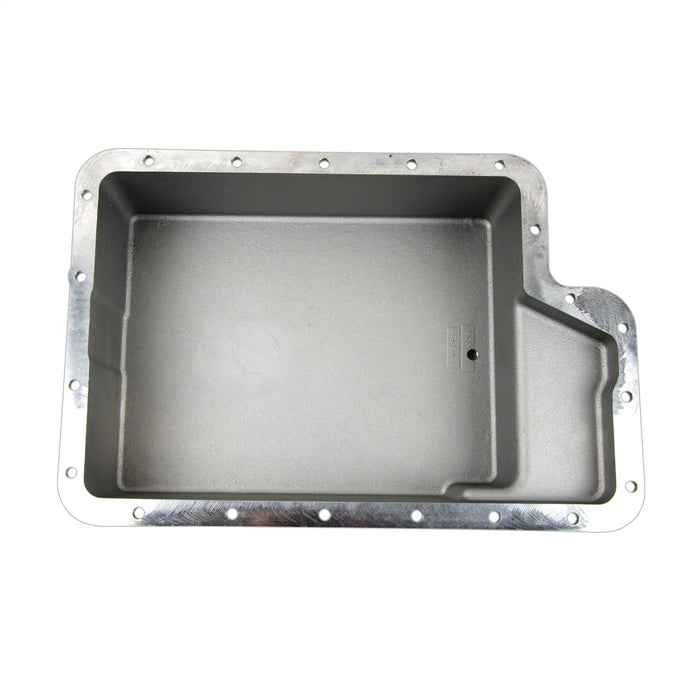

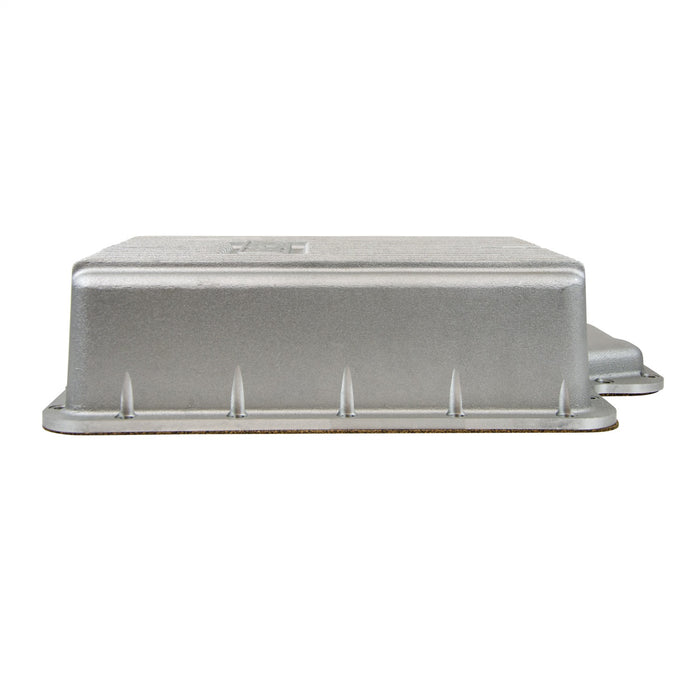

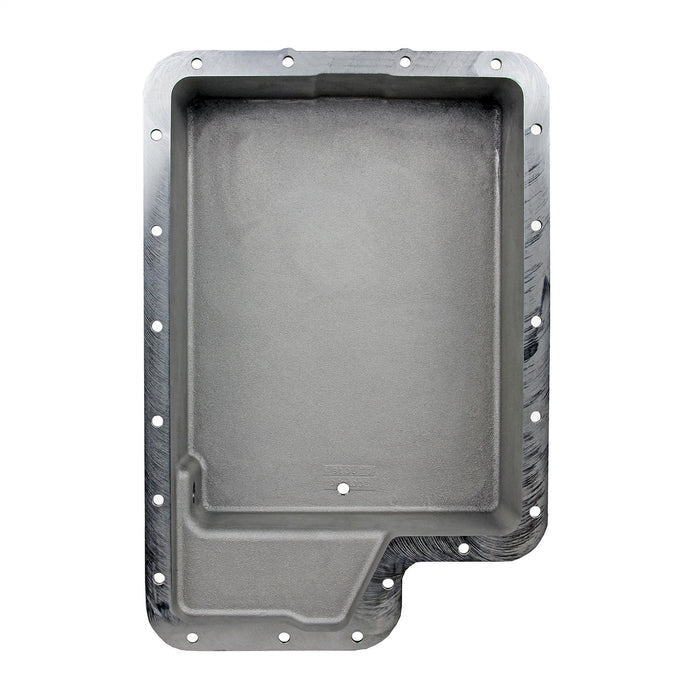

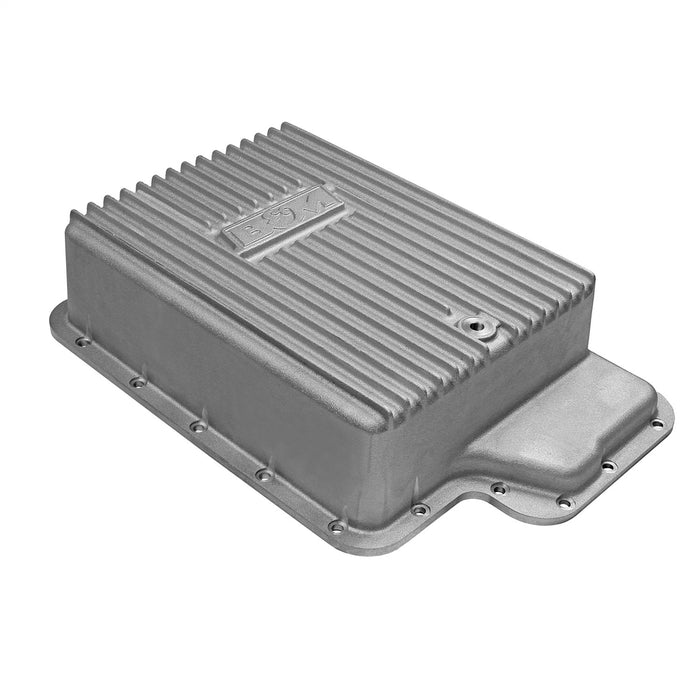

| Description_MKT | Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick external fins adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.5 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a pan gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: We recommend changing out the filter when installing this pan with Ford 4WD filter part# YC3Z-7A098-BA or equivalent. |
| Description_SHO | Auto Trans Oil Pan |
| Drain Plug Included | Yes |
| Filter Extension Included | No |
| Filter Included | No |
| Gasket Or Seal Included | Yes |
| height | 5.2 |
| Instructions Included | Yes |
| length | 15.4 |
| LTL | N |
| Material | Cast Aluminum |
| Mounting Hardware Included | Yes |
| Overall Length | 4.900 in. |

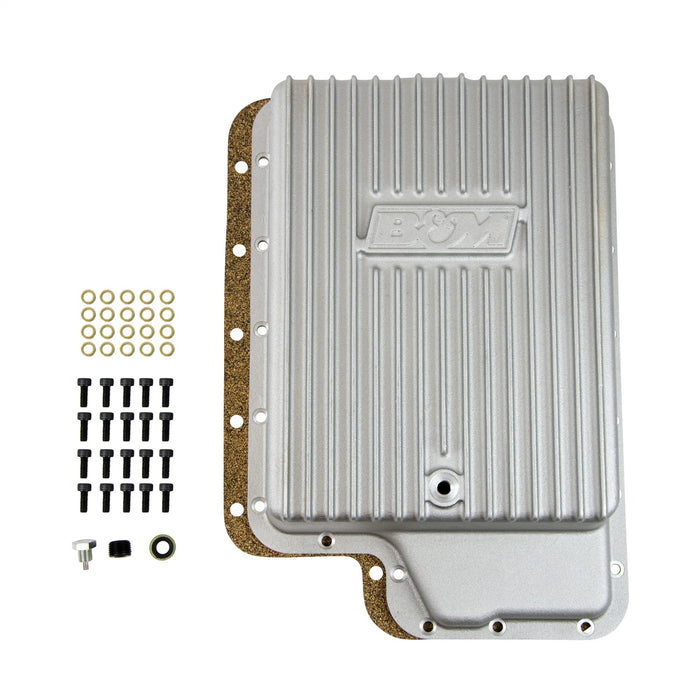

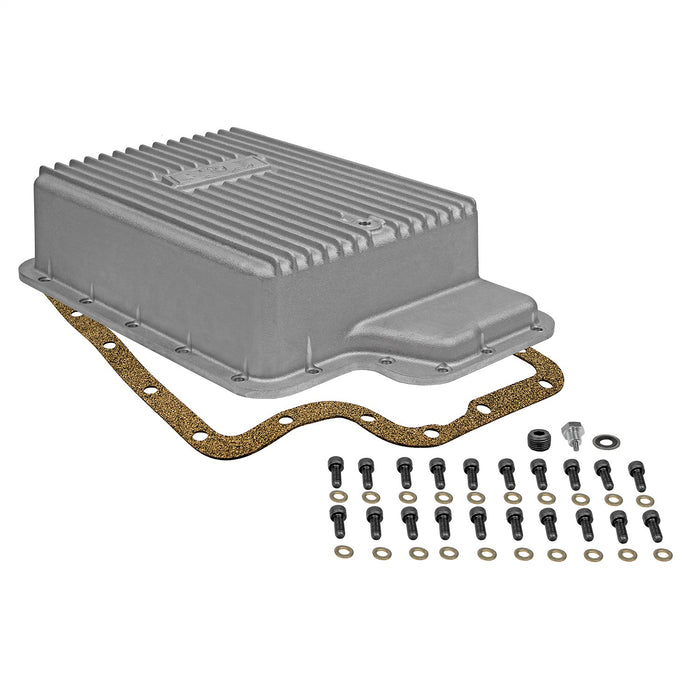

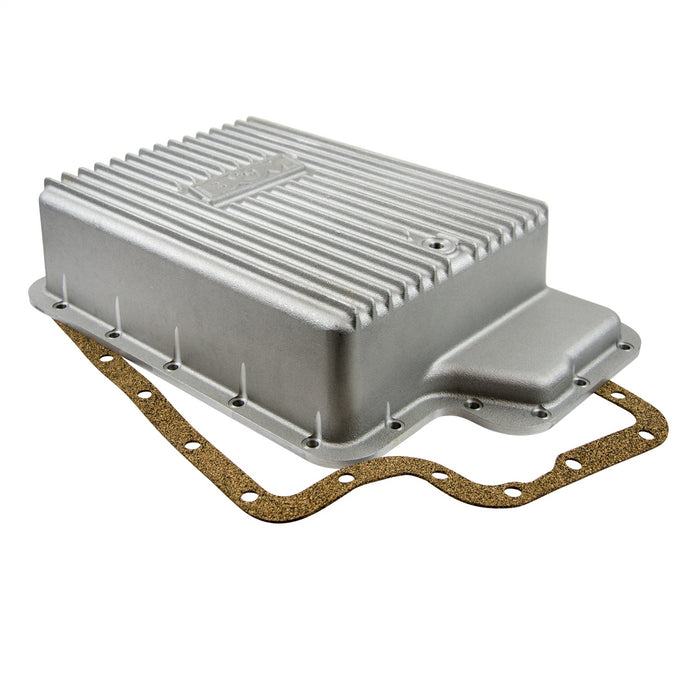

| Package Contents | Transmission pan, gasket, mounting hardware, o-ring and instructions |
| Style | Deep |
| Temperature Sensor Bung | Yes |
| Title | B&M 40295 Cast Deep Transmission Deep For Ford, E4OD, 5R100, 4R100 |
| Trans Model | Ford- E4OD (Auto) 4 Speed |
| WARNING CA Proposition 65 | No |
| weight | 13.85 |
| width | 16.0 |
