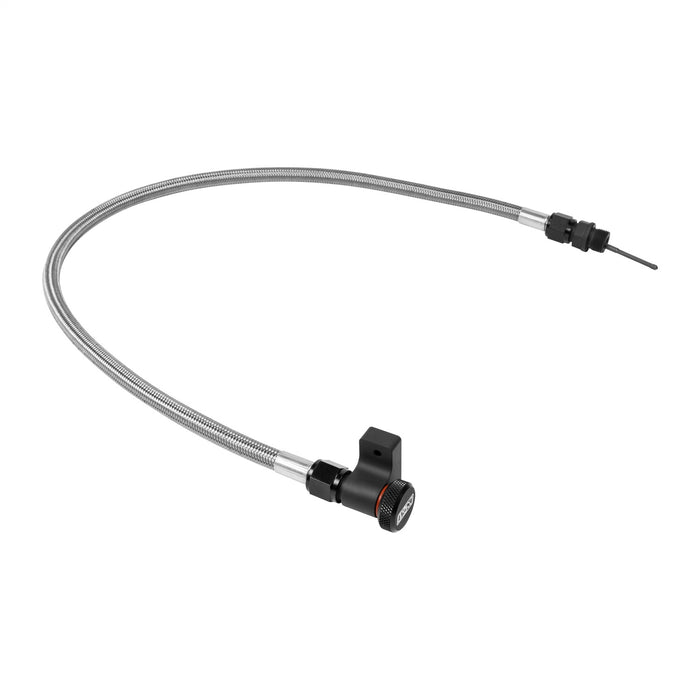

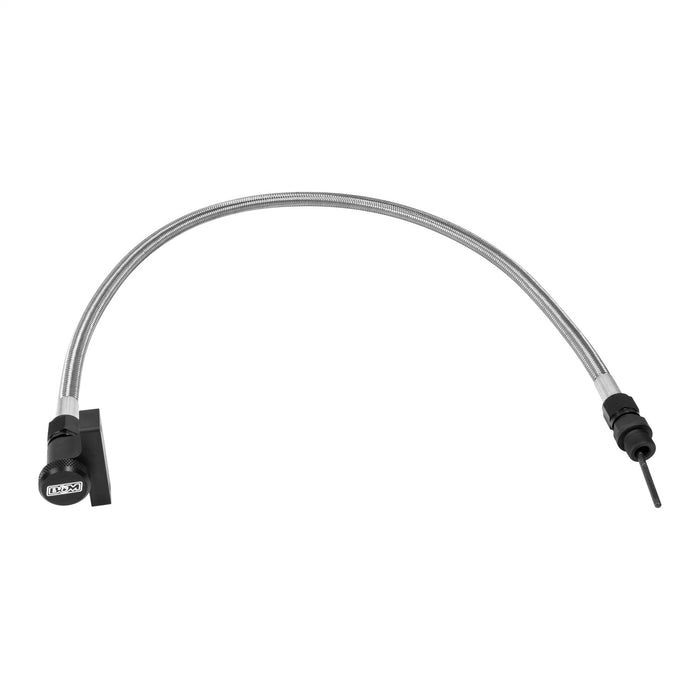

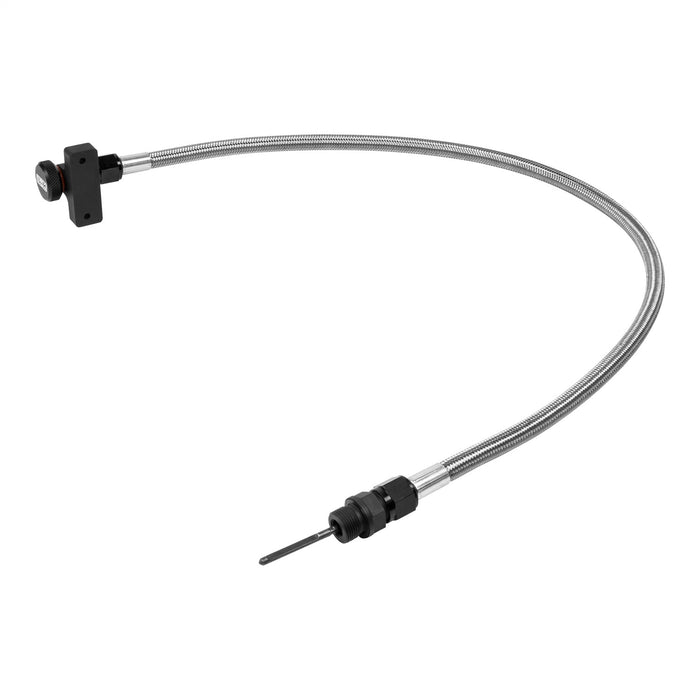

B&M 22200 Automatic Transmission Locking Dip Stick
by B&M
SKU ds_BBFT_22200
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$438.83
-
Original price
$438.83
Original price
$438.83
$438.83
$438.83
-
$438.83
Current price
$438.83
Description
The B&M Locking Transmission Dipstick was designed to allow for a quick and easy check of the automatic transmission fluid level and fluid quality by the vehicle owner/operator without having to go to the dealership. Fits all Ford 10R80, 6R80, 4R75E and 4R70E transmissions. Constructed of billet stainless steel fittings, steel braided hose and black mil-spec anodized aluminum 6061-T6 cap and bracket, this rugged unit allows for both cold and warm fluid level checks and is meant to be left in the vehicle and locked into place. Additional features include an engraved B&M logo locking knurled handle cap and fluid level stamped indicator end.
Resources
Installation InstructionsSpecifications
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Color | Black |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits 2010-2017 Ford F-150 with Automatic Transmission. May Fit Other Models; See Application Guide For Current Listings |
| Description_DEF | Automatic Transmission Dipstick |
| Description_DES | Automatic Transmission Locking Dip Stick |
| Description_EXT | Automatic Transmission Locking Dip Stick; Dipstick Length 40.63 in.; Incl. Dip Stick Assembly/B&M® Logo Engraved Cap/O-Ring; Black; |
| Description_FAB | Cap Features Knurled Finish/O-Ring Seal |
| Description_FAB | Ideal for Dragster Applications |
| Description_FAB | Precision Machined Billet Aluminum |
| Description_FAB | Prevents Leaks |
| Description_FAB | Trans Seal also included |
| Description_INV | BRAIDED DIPSTICK KIT; 2010-2022 F-150 |
| Description_KEY | 22200;b/m;bm;dipstick;braided;automatic;transmission;oil;level;ford;f150;stainless;steel;tube;black |
| Description_MKT | The B&M Locking Transmission Dipstick was designed to allow for a quick and easy check of the automatic transmission fluid level and fluid quality by the vehicle owner/operator without having to go to the dealership. Fits 2010-2022 Ford F-150 trucks with the 6R80, 10R80, 4R70E and 4R75E transmissions. Constructed of billet stainless steel fittings, steel braided hose, and black mil-spec anodized aluminum 6061-T6 cap and bracket, this rugged unit allows for both cold and warm fluid level checks and is meant to be installed in the vehicle and locked into place. Additional features include a billet locking cap with a "sure-grip" knurled finish for easy handling and features the B&M logo milled in the top of the cap, showing everyone you added a quality product and that you take care of youre vehicle. Notes: Fits 2011-2014 Raptor and 2017-2022 Raptor trucks. |
| Description_MKT | The B&M Locking Transmission Dipstick was designed to allow for a quick and easy check of the automatic transmission fluid level and fluid quality by the vehicle owner/operator without having to go to the dealership. Fits all Ford 10R80, 6R80, 4R75E and 4R70E transmissions. Constructed of billet stainless steel fittings, steel braided hose and black mil-spec anodized aluminum 6061-T6 cap and bracket, this rugged unit allows for both cold and warm fluid level checks and is meant to be left in the vehicle and locked into place. Additional features include an engraved B&M logo locking knurled handle cap and fluid level stamped indicator end. |
| Description_SHO | Auto Trans Dipstick |
| Dipstick Material | Stainless Steel |
| Dipstick/Filler Tube O-Rings Included | Yes |
| height | 2.0 |
| length | 24.0 |
| LTL | N |
| Package Contents | Dipstick, Tube and Hardware |
| Trans Model | AODEW/4R75E/4R75E/AODEW/4R70E/6R80/10R80 |
| Tube Length | 40.630 in. |
| Tube Material | Braided Stainless Steel |
| WARNING CA Proposition 65 | No |
| weight | 0.9 |
| width | 5.0 |
