B&M 20280 Transmission Oil Pan
by B&M
SKU ds_BBFT_20280
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$436.71
-
Original price
$436.71
Original price
$436.71
$436.71
$436.71
-
$436.71
Current price
$436.71
Availability:
4+ in stock
Description
Add fluid capacity to your transmission. Extra fluid means more cooling, and more cooling means better efficiency and performance. Add life to your transmission with a B&M Deep Pan! Adds 2 additional quarts to the system.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Additional Fluid Capacity | 2 qt. |
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | All GM Turbo-Hydramatic 400 automatic transmissions. Does not fit Jeep CJ7 model. Adds an additional 2 quarts of capacity. |
| Description_DEF | Auto Trans Oil Pan |
| Description_DEF | Transmission Oil Pan |
| Description_DES | Transmission Oil Pan |
| Description_EXT | Transmission Oil Pan; Deep; Incl. Drain Plug/Mounting Hardware; Adds An Additional 2 qts.; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Built-In Drain Plugs |
| Description_FAB | Cast Aluminum |
| Description_FAB | More Cooling Ability |
| Description_FAB | No Dipstick Modification |
| Description_FAB | Some Include Fluid Pickup Extension |
| Description_INV | CAST DEEP PAN-TH400 |
| Description_KEY | 20280; Transmission Pan; B/M; b and m; transmission; manual; automatic; shift kit; improver; transkit; racing; knob; lever; torque converter; turbohysramatic; th400; th 400; chevrolet; gmc; truck; aluminum; brushed |
| Description_LAB | Made In Logo |
| Description_MKT | Add fluid capacity to your transmission. Extra fluid means more cooling, and more cooling means better efficiency and performance. Add life to your transmission with a B&M Deep Pan! Adds 2 additional quarts to the system. |
| Description_MKT | Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2-quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter extension, pan gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. |
| Description_SHO | Auto Trans Oil Pan |
| Drain Plug Included | Yes |
| Drain Plug Kit | Yes |
| Filter Extension Included | Yes |
| Gasket Or Seal Included | Yes |
| height | 4.7 |
| Instructions Included | Yes |
| length | 12.4 |
| LTL | N |
| Material | Cast Aluminum |
| Mounting Hardware Included | Yes |

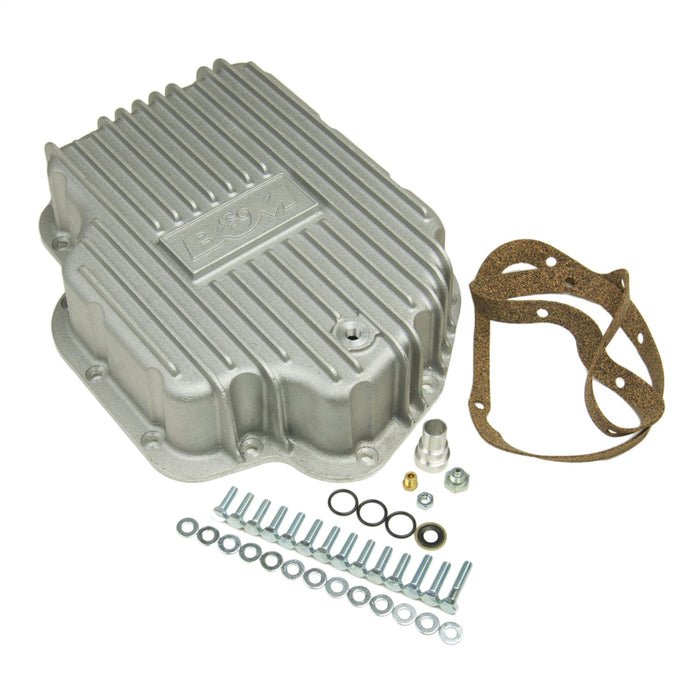

| Package Contents | Transmission pan, pan gasket, drain plug with seal, filter extension, o-rings, filter extension screws, nuts, bolts, washers and instructions |
| Style | Deep |
| Temperature Sensor Bung | Yes |
| Title | B&M 20280 Transmission Cast Deep Pan, Brushed Finish - TH400 |
| Trans Model | GM- TH400 (Auto) 3 Speed |
| WARNING CA Proposition 65 | No |
| weight | 11.3 |
| width | 14.9 |
