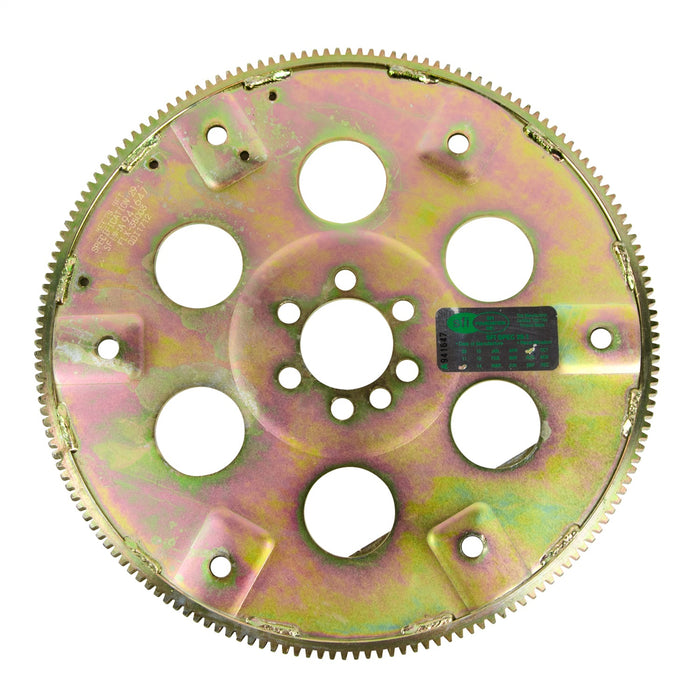

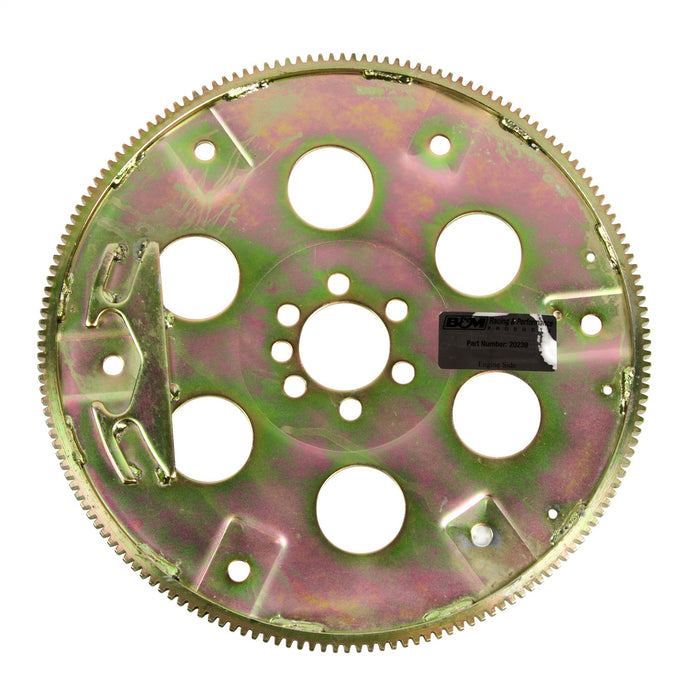

B&M 20239 Automatic Transmission Flexplate
by B&M
SKU ds_BBFT_20239
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$372.22
-
Original price
$372.22
Original price
$372.22
$372.22
$372.22
-
$372.22
Current price
$372.22
Availability:
Only 1 left!
Description
As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986 to 1994 GM (externally balanced) 4.3L V6 and GM small block V8 engines with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5 inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits 1986 to 1994 GM externally balanced 4.3 liter V6 and small block V8 engines. Uses a 168 tooth ring gear. Has 10.75 inch and 11.5 inch bolt patterns. Compatible with Powerglide; TH350; TH400 and TH700R4 automatic transmissions. |
| Description_DEF | Auto Trans Flexplate |
| Description_DEF | Automatic Transmission Flexplate |
| Description_DES | Automatic Transmission Flexplate |
| Description_EXT | Automatic Transmission Flexplate; Standard SFI; External Balance; 168 Tooth; Dual; 10.75 in. and 11.5 in. Bolt Circle; |
| Description_FAB | Ideal For Street Applications |
| Description_FAB | Includes SFI Certification Sticker |
| Description_FAB | NHRA/IHRA Legal For All Classes |
| Description_FAB | To Extreme Duty Racing |
| Description_FAB | To High RPM Use |
| Description_INV | FLEXPLATE 168 TOOTH 86-94 SB CHEV |
| Description_KEY | 20239; Flexplate; B/M; transmission; automatic; shift kit; improver; transkit; racing; knob; lever; torque converter |
| Description_MKT | As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986 to 1994 GM (externally balanced) 4.3L V6 and GM small block V8 engines with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5 inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions. |
| Description_MKT | As performance levels increase, an O.E. style flexplate just wont cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986-1994 GM (externally balanced) 4.3L V6 and GM small block V8 engines with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5-inch torque converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions. |
| Description_SHO | Auto Trans Flexplate |
| height | 1.4 |
| length | 9.0 |
| LTL | N |
| weight | 7.75 |
| width | 14.3 |
