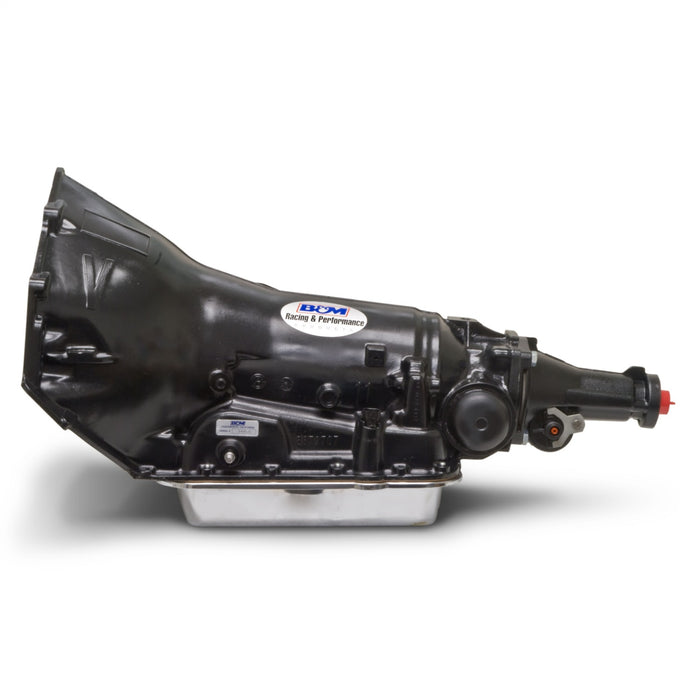

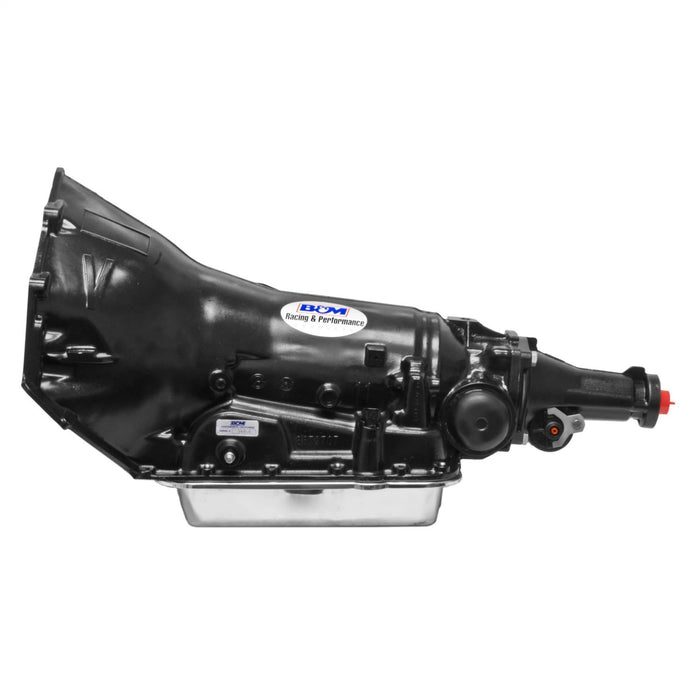

B&M 117101 Street/Strip Transmission
by B&M
SKU ds_BBFT_117101
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,713.26
-
Original price
$3,713.26
Original price
$3,713.26
$3,713.26
$3,713.26
-
$3,713.26
Current price
$3,713.26
Description
Legendary B&M transmission for street use. B&M's Street Strip transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. Fits 1984 or later GM (except Corvette and 60 degree V6) with a 30 tooth spline converter and has a mechanical type speedometer connection. Suitable for use behind engines producing up to 450 lb.ft. of torque. Won't replace 4L60E applications (post 1993). Includes a Corvette 2-4 servo assembly, recalibrated valve body, new overdrive sprag assembly, new external electric connector, rebuilt front pump and governor with new gear, all new B&M high performance friction plates, new thrust washer kit, races, thrust bearings bushings and 2-4 band, high performance reaction carrier assembly, heavy duty sunshell and improved lubrication on sun gear. Max 500 HP / 450 Ft/Lbs.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Automotive Item Grade | High Performance |
| California Proposition 65 Chemical Name 1 | Lead |
| California Proposition 65 Chemical Name 2 | Chromium (hexavalent compounds) |
| California Proposition 65 Chemical Name 3 | Benzene |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits 1984 and newer GM Turbo-Hydramatic 700R4 4L60 (not electronic shift model) Street and Strip automatic transmission with 30 Tooth splined converter. For 2 wheel drive models. Does not fit Corvette and 60 degree angled V6 models. Does not replace 4L60E. Transmission shipped without speedometer driven gear or housing. |
| Description_DEF | Auto Trans Assembly |
| Description_DES | Street/Strip Transmission |
| Description_EXT | Street/Strip Transmission; Max 500 HP/450 ft./lbs. Torque; Incl. Intermediate/Low Roller Clutches; |
| Description_FAB | 4 Speed GM Transmission |
| Description_FAB | External Electric Connector |
| Description_FAB | Fully Recalibrated Valve Body |
| Description_FAB | High Perf. Friction Plates |
| Description_FAB | New Thrust Washer Kit |
| Description_FAB | Overdrive Sprag Assembly |
| Description_FAB | Reaction Carrier Assembly |
| Description_FAB | Rebuilt Front Pump and Governor |
| Description_INV | STRT TRANS TH700R4 CHV WITH MECH SP |
| Description_KEY | 117101; Transmission; B/M; b and m; transmission; manual; automatic; shift kit; improver; transkit; racing; knob; lever; torque converter |
| Description_LAB | Made In Logo |
| Description_MKT | Legendary B&M transmission for street use. B&M's Street Strip transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. Fits 1984 or later GM (except Corvette and 60 degree V6) with a 30 tooth spline converter and has a mechanical type speedometer connection. Suitable for use behind engines producing up to 450 lb.ft. of torque. Won't replace 4L60E applications (post 1993). Includes a Corvette 2-4 servo assembly, recalibrated valve body, new overdrive sprag assembly, new external electric connector, rebuilt front pump and governor with new gear, all new B&M high performance friction plates, new thrust washer kit, races, thrust bearings bushings and 2-4 band, high performance reaction carrier assembly, heavy duty sunshell and improved lubrication on sun gear. Max 500 HP / 450 Ft/Lbs. |
| Description_SHO | Auto Trans Assembly |
| Disclaimer | Transmission shipped without speedometer driven gear or housing |
| First Gear Ratio | 3.06:1 |
| height | 24.0 |
| length | 35.0 |
| LTL | N |
| Second Gear Ratio | 1.63:1 |
| Title | B&M 117101 Street Transmission , TH700R4 CHV |
| Torque Capacity | 450 ft/lbs. |
| Trans Model | GM- 4L60E (Auto) 4 Speed |
| Trans Model | GM- TH700 R4 (Auto) 4 Speed |
| WARNING CA Proposition 65 | No |
| weight | 121.5 |
| width | 21.2 |
