B&M 11317 Differential Cover
by B&M
SKU ds_BBFT_11317
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$699.48
-
Original price
$699.48
Original price
$699.48
$699.48
$699.48
-
$699.48
Current price
$699.48
Availability:
Out of stock
Description

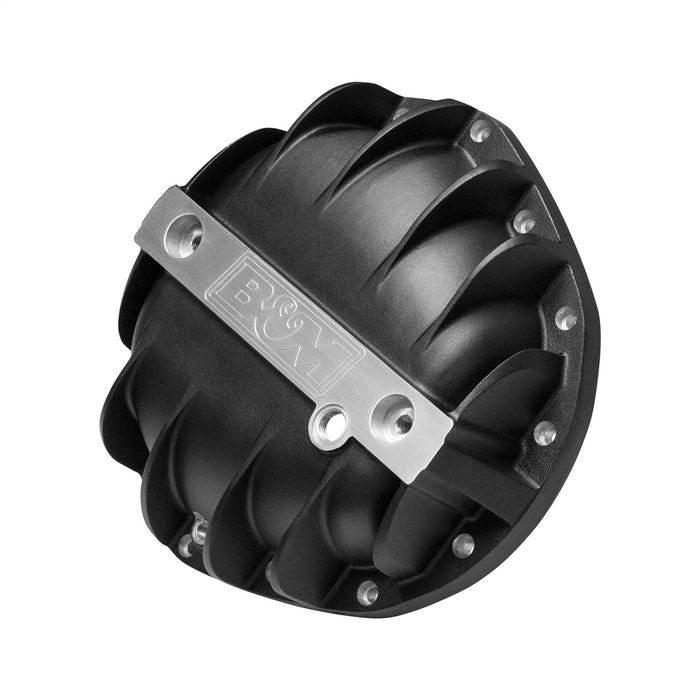

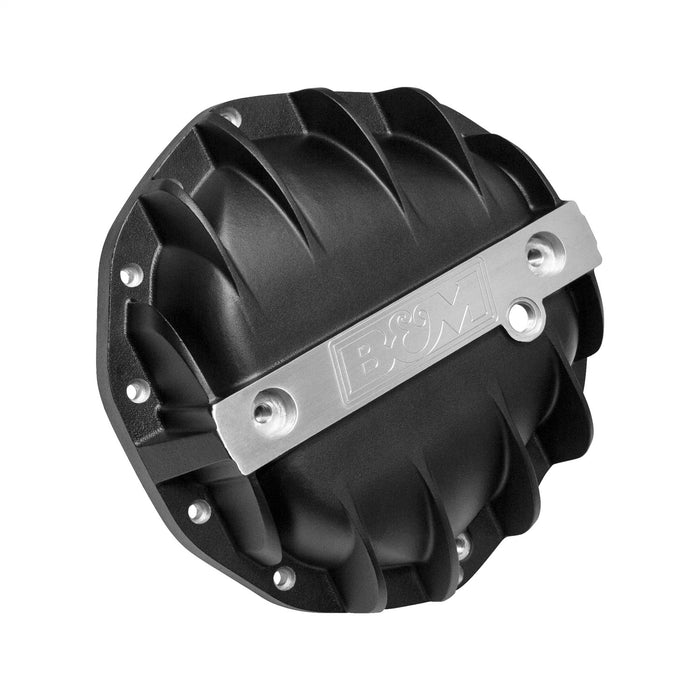

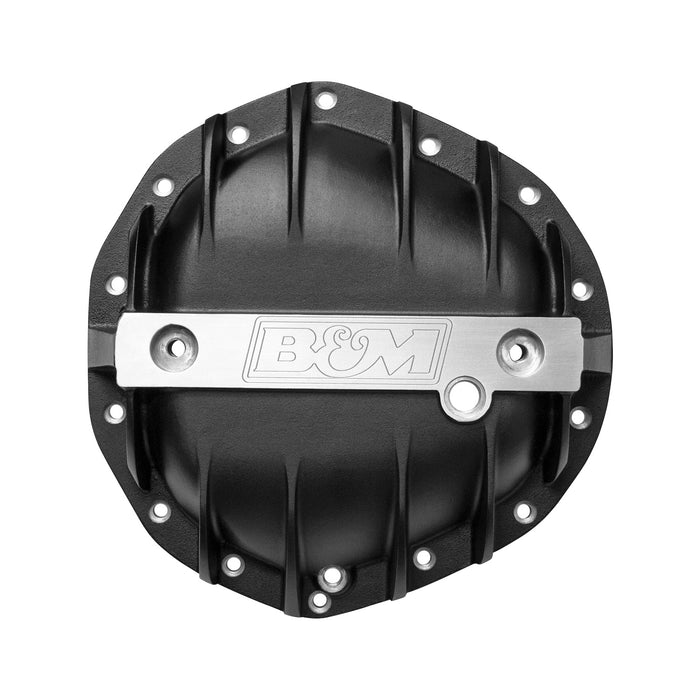

This B&M Cast Aluminum Differential Cover for the 2001-2011 GM 2500/3500 truck as well as 2003-2013 Dodge/Ram 2500/3500 trucks is designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of military grade (MIL-A-8625) black anodized A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.
Resources
Installation InstructionsSpecifications
| Bolt Pattern | AAM 11.500 in. |
| Bolt Quantity | 14 |
| Bolts Or Studs Included | Yes |
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Call Out Size (in) | 3 |
| Carrier Main Cap Support | Yes |
| Color | Black Anodized |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |

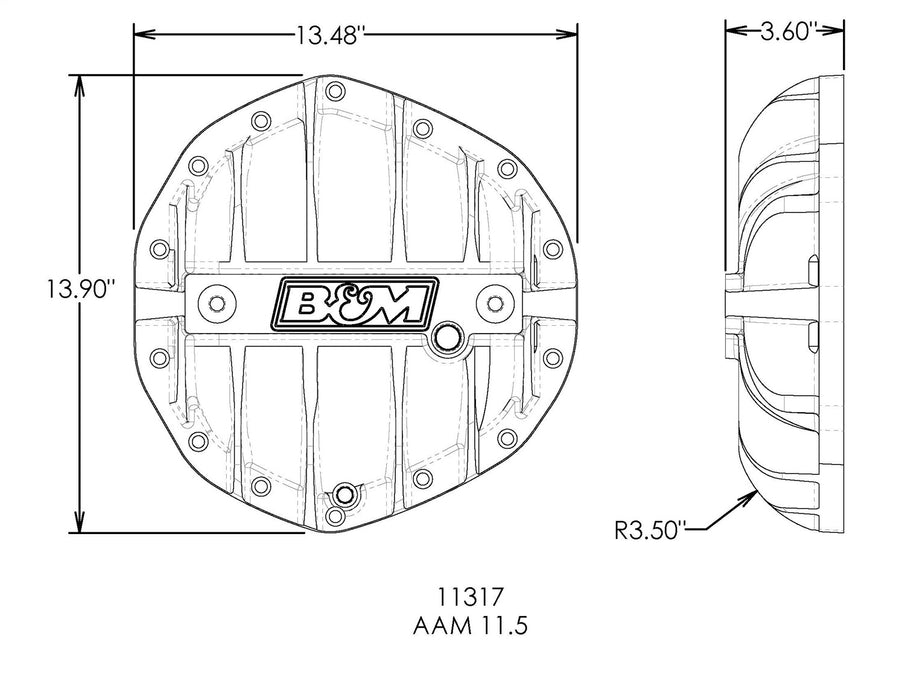

| Description_ASM | Designed to fit most 2001-2011 GM2500/3500 and 2003-2013 Dodge/Ram 2500/3500 with AAM 11.5 differential; however each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase/installation. Refer to ID guide and measurement diagram for specific dimensions. |
| Description_DEF | Differential Cover |
| Description_DES | Differential Cover |
| Description_EXT | Differential Cover; For Use w/AAM 11.5; Incl. Cover/Fill And Drain Plugs/Bolts/Washers/Load Bolts/Nuts; Black; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Built-In Drain Plugs |
| Description_FAB | Cast Aluminum |
| Description_FAB | More Cooling Ability |
| Description_FAB | No Dipstick Modification |
| Description_FAB | Some Include Fluid Pickup Extension |
| Description_INV | DIFF COVER AAM 11.5-BLACK |
| Description_KEY | differential cover; black; aam; aluminum |
| Description_LAB | Made In Logo |
| Description_MKT | Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. |
| Description_MKT | This B&M Cast Aluminum Differential Cover for the 2001-2011 GM 2500/3500 truck as well as 2003-2013 Dodge/Ram 2500/3500 trucks is designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of military grade (MIL-A-8625) black anodized A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions. |
| Description_SHO | Differential Cover |
| Drain Plug Included | Yes |
| Filler Plug Included | Yes |
| finish | Black Anodized |
| Gasket Or Seal Included | No |
| height | 5.4 |
| length | 8.5 |
| LTL | N |
| Material | A356.0-T6 Aluminum |
| Package Contents | Cover, fill plug, drain plug, bolts, washers, load bolts , nuts, and instruction |
| Position | N/A |
| WARNING CA Proposition 65 | No |
| weight | 12.15 |
| width | 14.3 |
