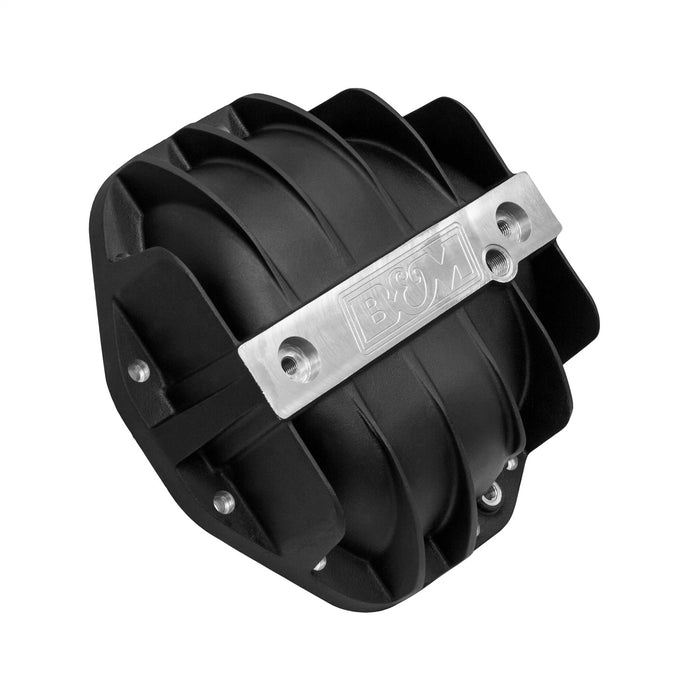

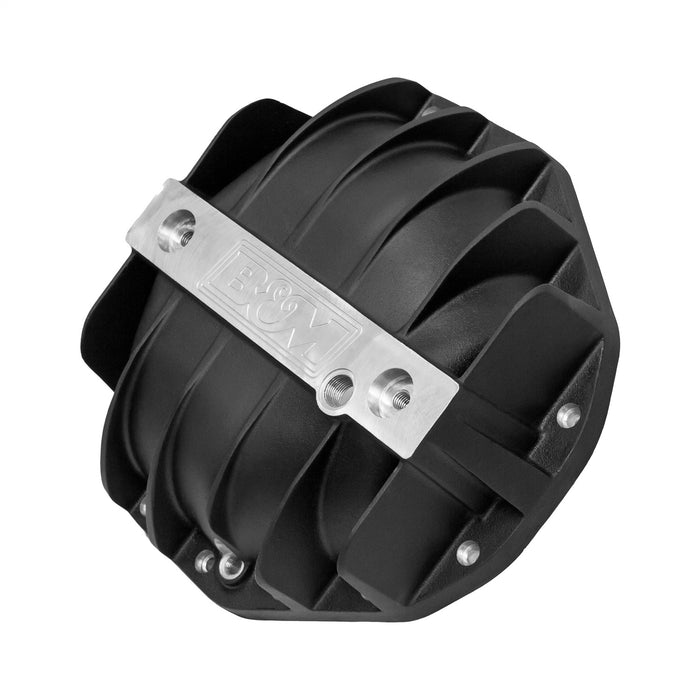

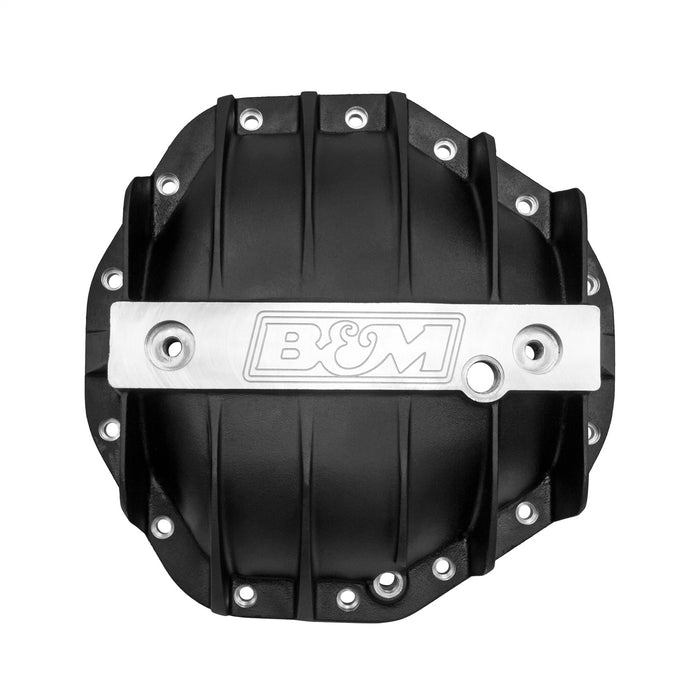

B&M 11316 Differential Cover
by B&M
SKU ds_BBFT_11316
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$469.56
-
Original price
$469.56
Original price
$469.56
$469.56
$469.56
-
$469.56
Current price
$469.56
Availability:
Out of stock
Description
Differential Cover; For Use w/AAM 10.5; Incl. Cover/Fill And Drain Plug/Bolts/Washers/Load Bolts/Nuts/Instructions; Extra Capacity; Black;
Resources
Installation InstructionsSpecifications
| Bolt Pattern | AAM 10.500 in. |
| Bolt Quantity | 14 |
| Bolts Or Studs Included | Yes |
| California Proposition 65 Chemical Name 1 | Chromium (hexavalent compounds) |
| Call Out Size (in) | 3.6 |
| Carrier Main Cap Support | Yes |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |

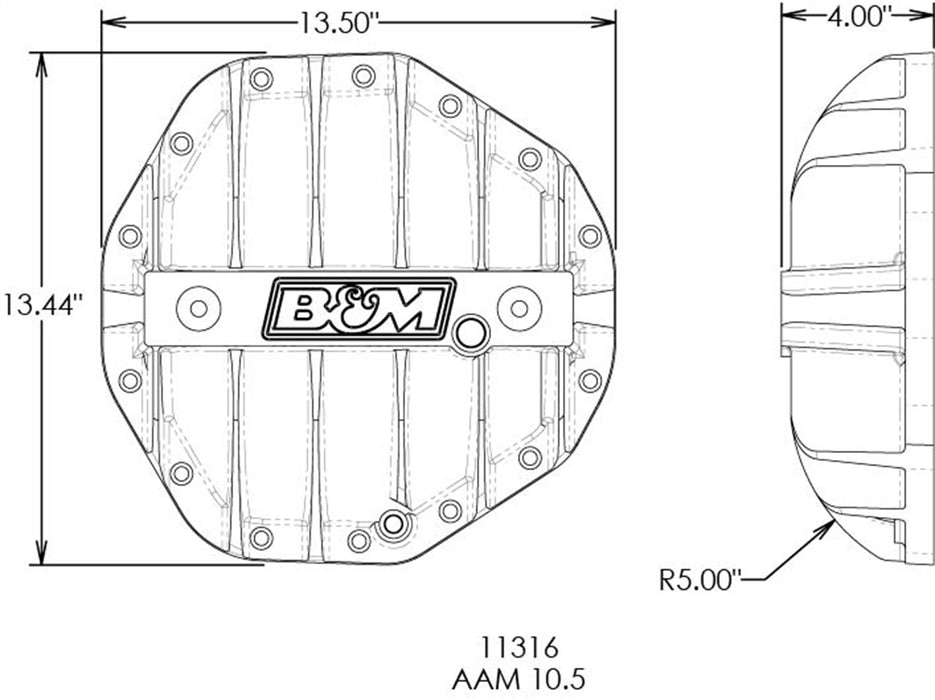

| Description_ASM | Designed to fit most vehicles with AAM 10.5 differential; however; each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase/installation. Refer to ID guide and measurement diagram for specific dimensions. Check clearances for fit-Gasket Not Included. |
| Description_DEF | Differential Cover |
| Description_DES | Differential Cover |
| Description_EXT | Differential Cover; For Use w/AAM 10.5; Incl. Cover/Fill And Drain Plug/Bolts/Washers/Load Bolts/Nuts/Instructions; Extra Capacity; Black; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Built-In Drain Plugs |
| Description_FAB | Cast Aluminum |
| Description_FAB | More Cooling Ability |
| Description_FAB | No Dipstick Modification |
| Description_FAB | Some Include Fluid Pickup Extension |
| Description_INV | DIFF COVER AAM 10.5-BLACK |
| Description_KEY | 11316; differential cover; aluminum cover; rear end cover; cubierta diferencial; cubierta de aluminio; cubierta de extreme posterior |
| Description_LAB | Made In Logo |
| Description_MKT | Differential Cover, AAM 10.5, Extra Capacity, A356.0-T6 Cast Aluminum, Black Anodized, Drain/Fill ports, Magnetic Drain Plug. |
| Description_MKT | Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included |
| Description_SHO | Differential Cover |
| Drain Plug Included | Yes |
| Filler Plug Included | Yes |
| finish | Black Anodized |
| Gasket Material | None |
| Gasket Or Seal Included | No |
| height | 5.5 |
| length | 9.3 |
| LTL | N |
| Material | A356.0-T6 Aluminum |

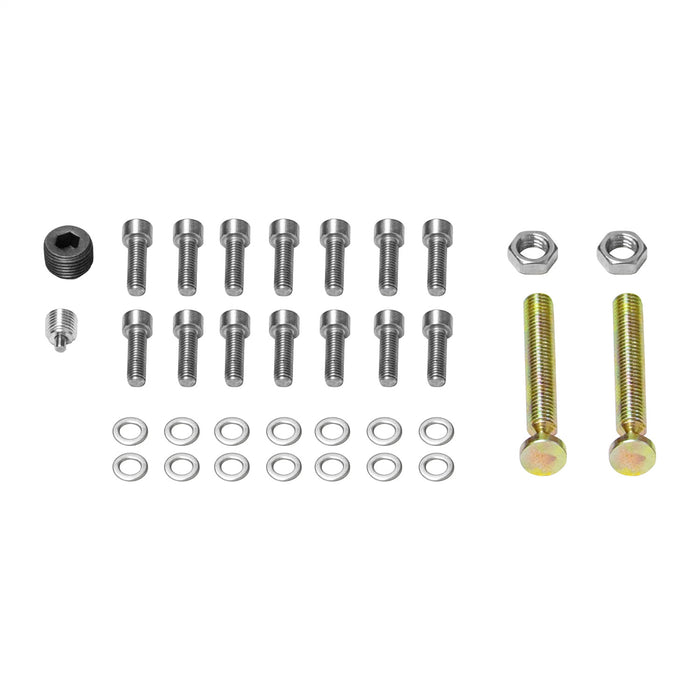

| Package Contents | Cover, fill plug, drain plug, bolts, washers, load bolts, nuts, and instruction |
| Position | N/A |
| Thickness | 4.500 in. |
| WARNING CA Proposition 65 | No |
| weight | 12.35 |
| width | 14.3 |
