B&M 10300 Transmission Oil Pan
by B&M
SKU ds_BBFT_10300
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$788.26
-
Original price
$788.26
Original price
$788.26
$788.26
$788.26
-
$788.26
Current price
$788.26
Availability:
Only 2 left!
Description

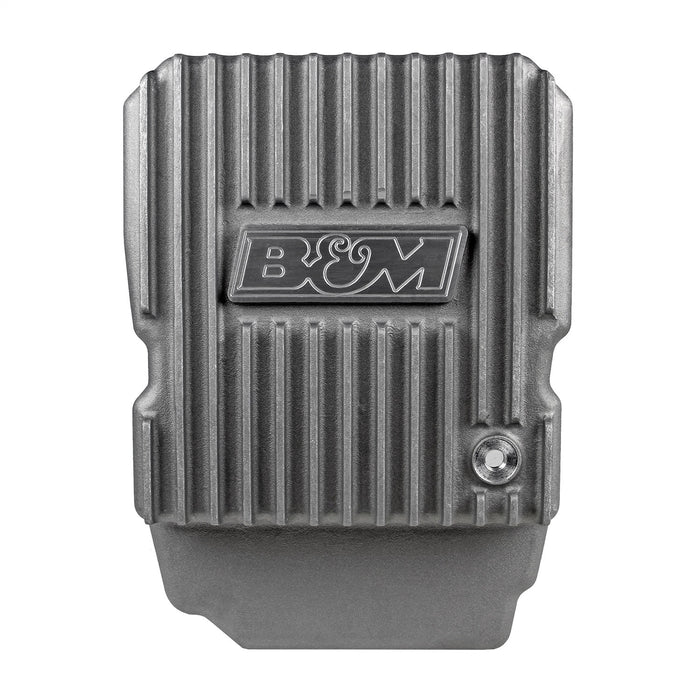

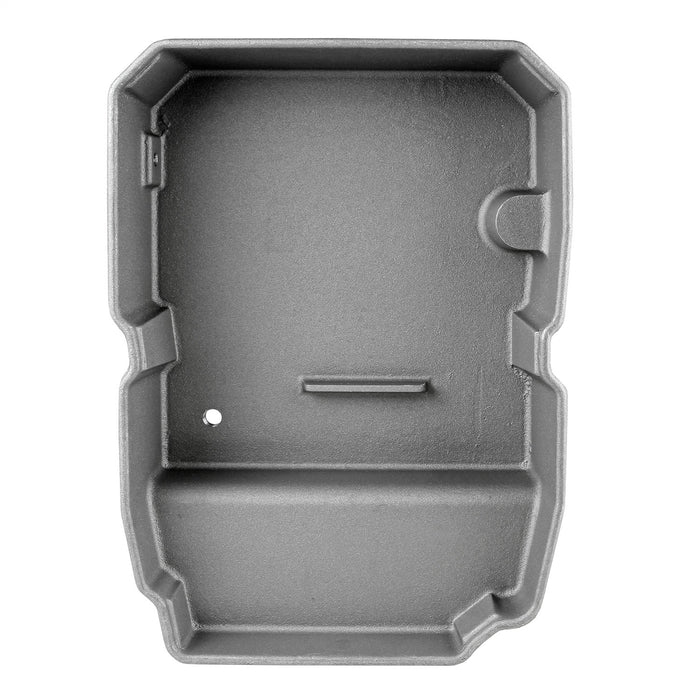

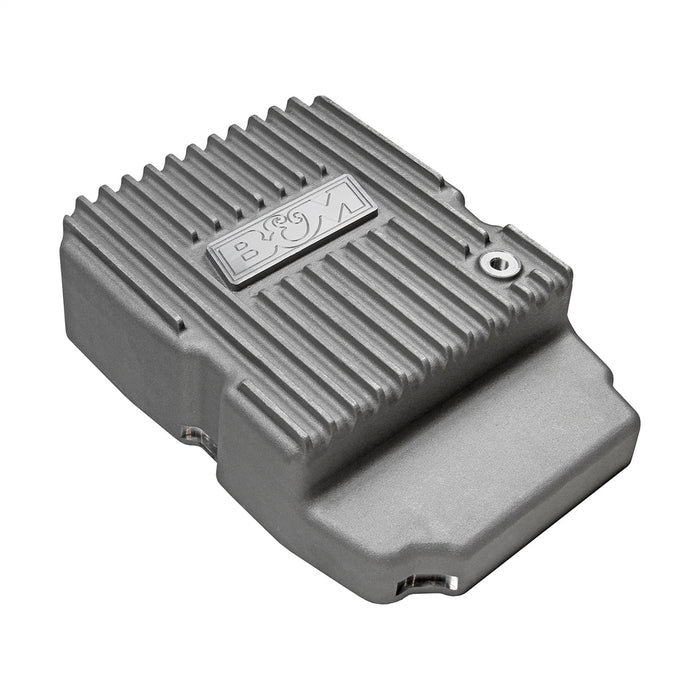

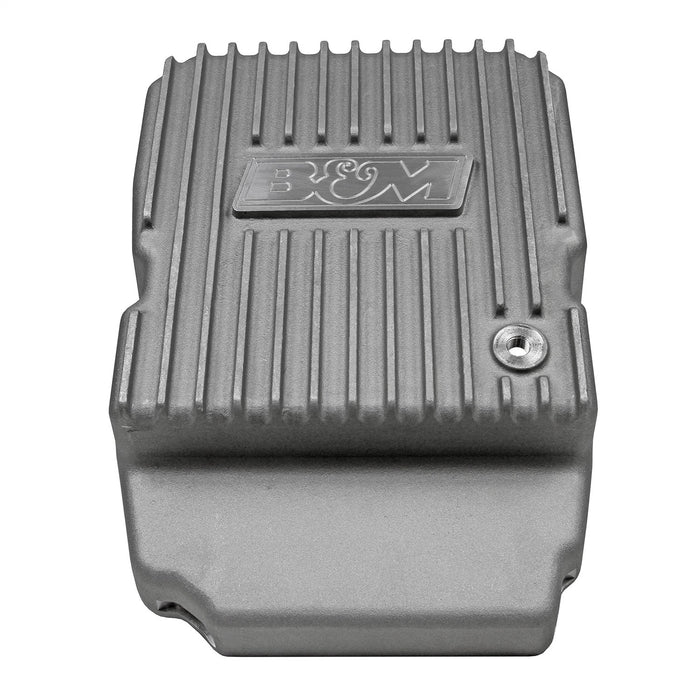

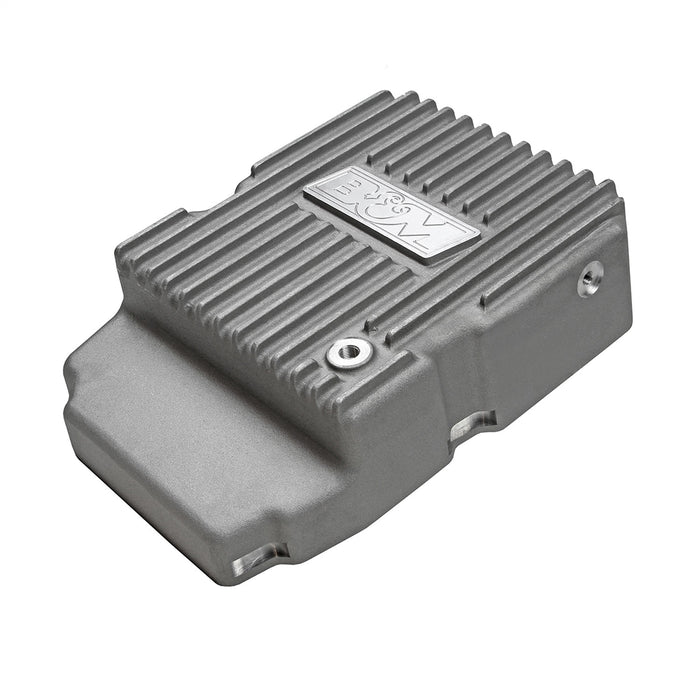

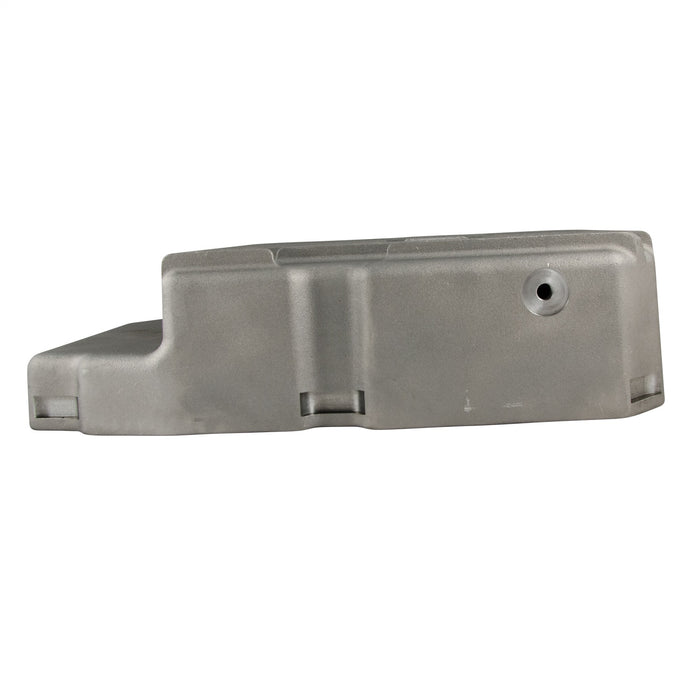

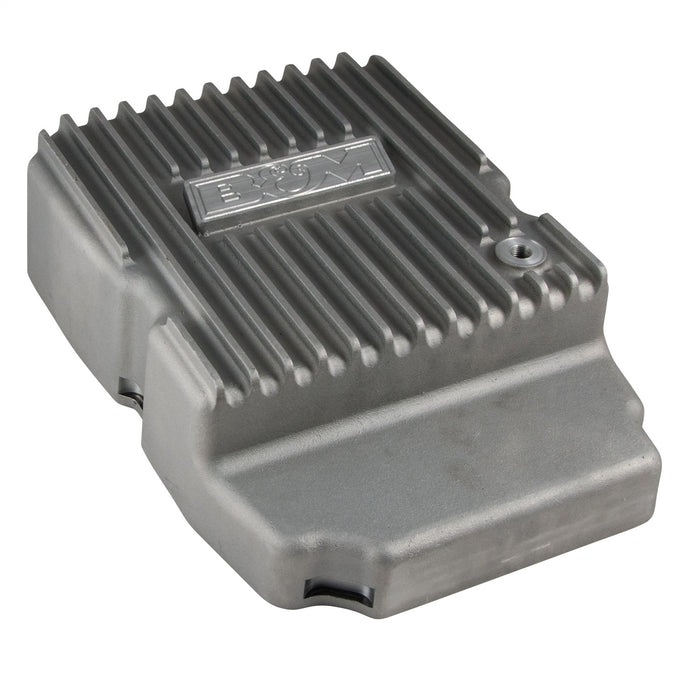

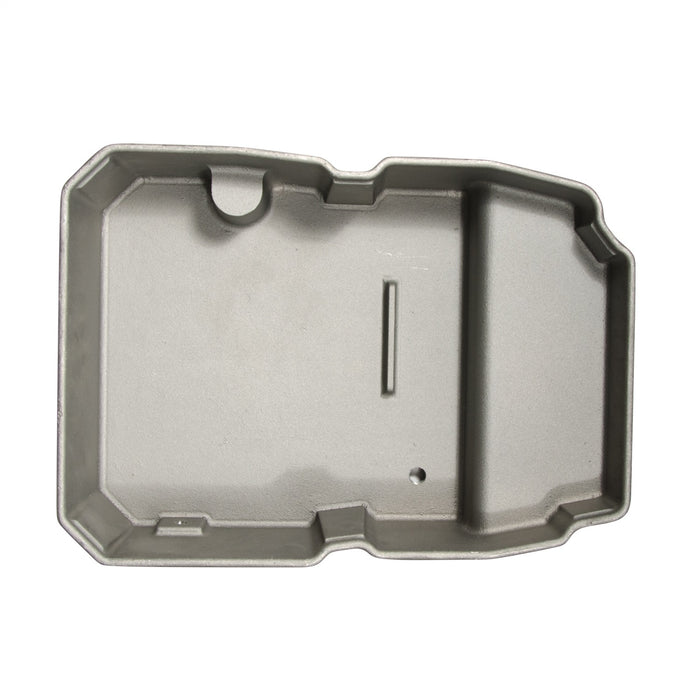

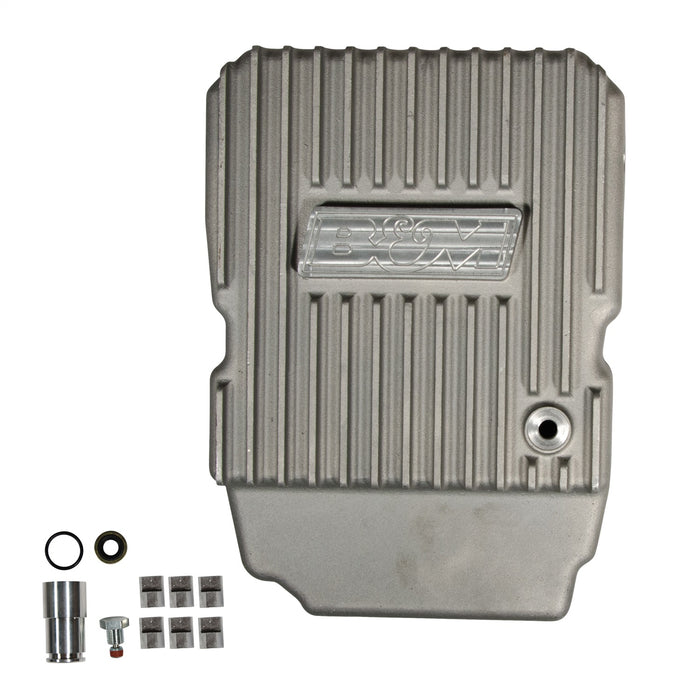

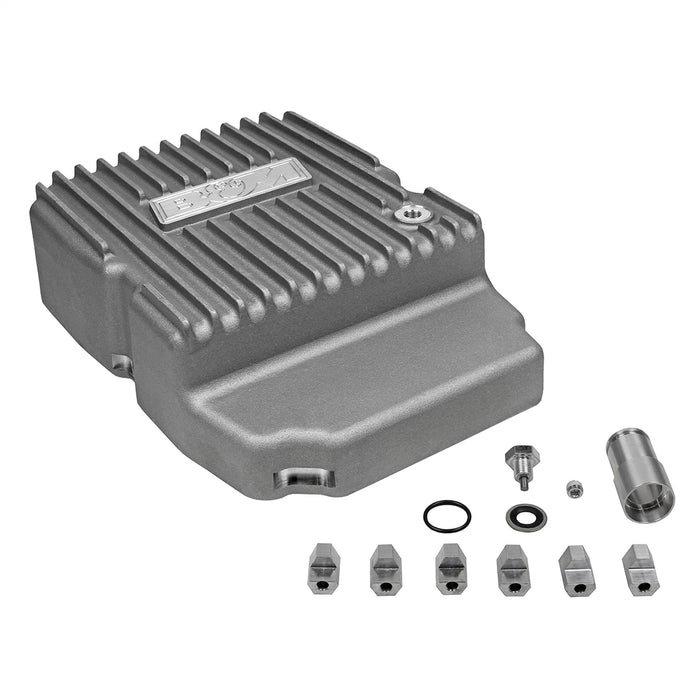

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter, filter extension and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: NAG-1 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers optional NAG-1 locking dipsticks part #22300, 22301 or 22302 (check vehicle applications) to measure proper transmission fluid level.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_ASM | Fits 2008 to 2013 Dodge Challenger; 2006 to 2013 Dodge Charger; 2005 to 2008 Dodge Magnum; 2011 to 2013 Dodge Durango; 2008 to 2011 Dodge Nitro; 2005 to 2013 Chrysler 300; 2004 to 2008 Chrysler Crossfire; 2006 to 2010 Jeep Commander; 2005 to 2013 Jeep Grand Cherokee; with an NAG-1 automatic transmission |
| Description_DEF | Auto Trans Oil Pan |
| Description_DEF | Transmission Oil Pan |
| Description_DES | Transmission Oil Pan |
| Description_EXT | Transmission Oil Pan; Deep; Incl. Drain Plug/Mounting Hardware; Adds An Additional 3 qts.; |
| Description_FAB | Additional Oil Capacity |
| Description_FAB | Built-In Drain Plugs |
| Description_FAB | Cast Aluminum |
| Description_FAB | More Cooling Ability |
| Description_FAB | No Dipstick Modification |
| Description_FAB | Some Include Fluid Pickup Extension |
| Description_INV | DEEP PAN; CHRYSLER NAG-1 |
| Description_KEY | nag; nag1; nag-1; transmission; pan; upgrade; cast; aluminum; jeep; commander; cherokee; grand; chrysler; crossfire; 300; nitro; durango; magnum; charger; challenger; cover; case; gear; rebuild |
| Description_LAB | Made In Logo |
| Description_MKT | Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick external fins adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan includes a filter (not pictured), filter extension and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: NAG-1 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers optional NAG-1 locking dipsticks part #22300, 22301 or 22302 (check vehicle applications) to measure proper transmission fluid level. |
| Description_MKT | Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter, filter extension and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: NAG-1 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers optional NAG-1 locking dipsticks part #22300, 22301 or 22302 (check vehicle applications) to measure proper transmission fluid level. |
| Description_SHO | Auto Trans Oil Pan |

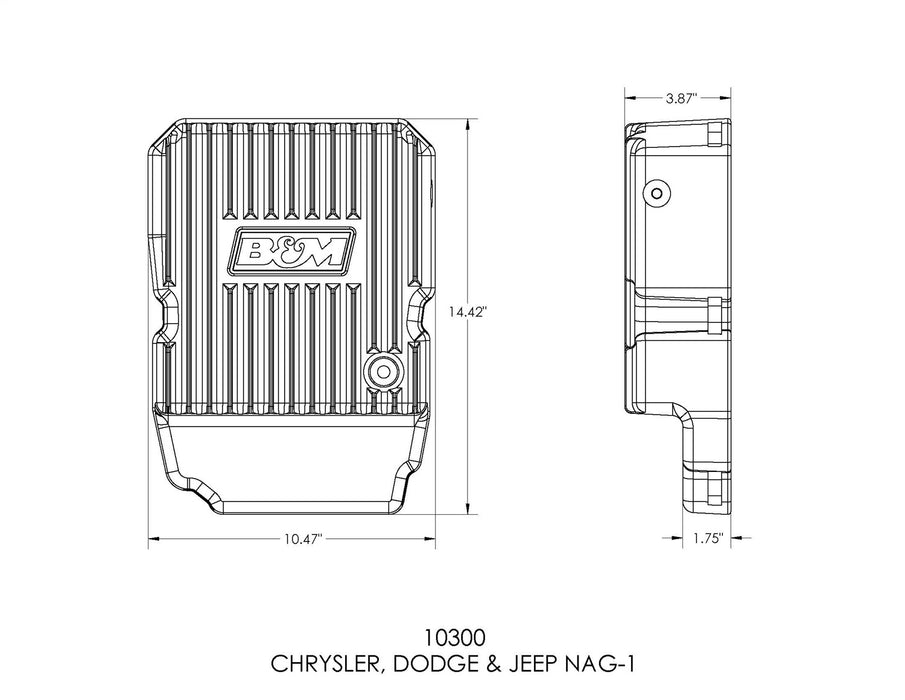

| height | 5.0 |
| length | 17.0 |
| LTL | N |
| weight | 7.6 |
| width | 14.9 |
