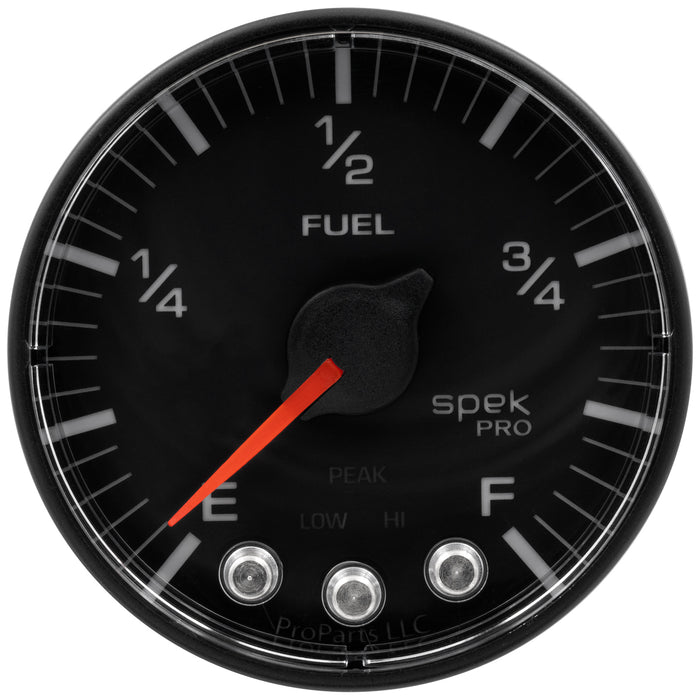

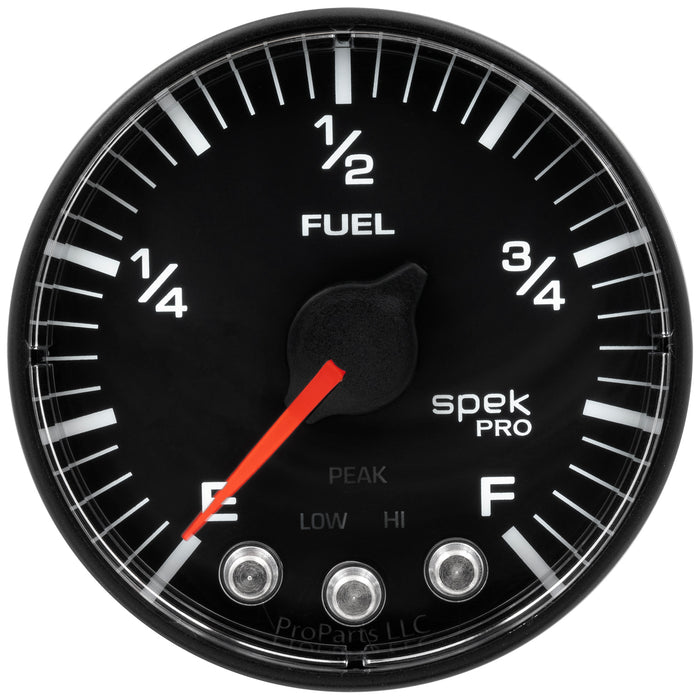

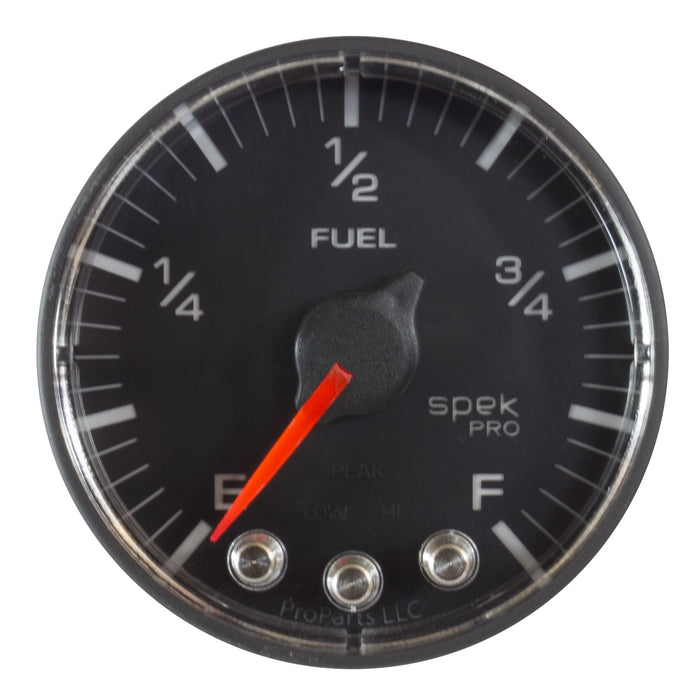

AutoMeter P312328 GAUGE; FUEL LEVEL; 2 1/16in.; 0-270O PROGRAMMABLE; BLK/BLK; SPEK-PRO
by AutoMeter
SKU ds_BDHZ_P312328
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$368.00
-
Original price
$368.00
Original price
$368.00
$368.00
$368.00
-
$368.00
Current price
$368.00
Availability:
Out of stock
Description
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Resources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsSpecifications
| Description_ASC | SPEK-PRO |
| Description_DEF | Fuel Level Gauge |
| Description_DES | GAUGE, FUEL LEVEL, 2 1/16", 0-270O PROGRAMMABLE, BLK/BLK, SPEK-PRO |
| Description_DES | GAUGE; FUEL LEVEL; 2 1/16in.; 0-270O PROGRAMMABLE; BLK/BLK; SPEK-PRO |
| Description_EXT | 2-1/16in. FUEL LEVEL; PROGRAMMABLE 0-300 O; SPEK |

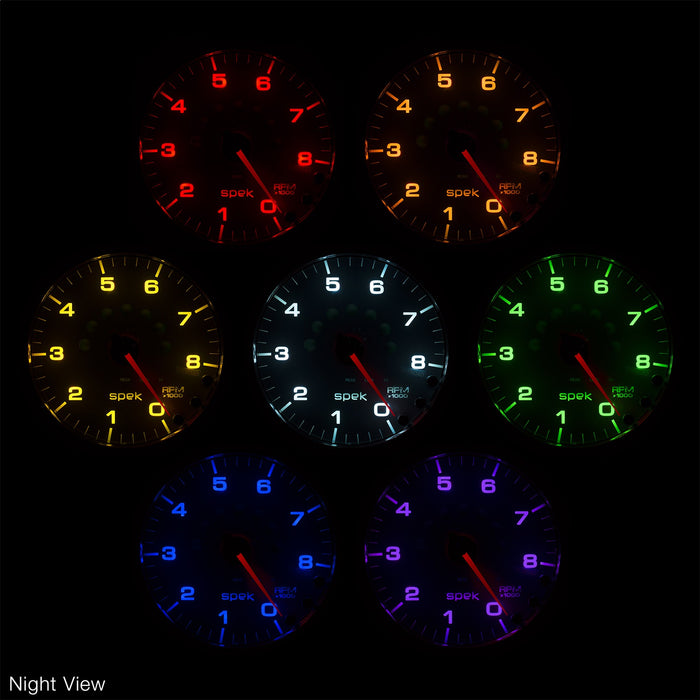

| Description_EXT | 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer. |
| Description_FAB | 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer. |
| Description_FAB | 7 User Selectable Colors |
| Description_FAB | Acquire Data For Later Review |
| Description_FAB | Bright Illumination |
| Description_FAB | Built In Pro Control Circuits |
| Description_FAB | Configurable" High" and" Low" warnings using three on-instrument-face buttons |
| Description_FAB | Custom Programmable Activation |
| Description_FAB | Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared. |
| Description_FAB | Incl. 8 ft. Wiring Harness |
| Description_FAB | Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation. |
| Description_FAB | Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge. |
| Description_FAB | Precision 280 Degrees brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution. |
| Description_FAB | Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection. |
| Description_FAB | Set Custom Alert Points |
| Description_FAB | Wide Angle Dial Size |
| Description_INV | 2-1/16" FUEL LEVEL, BFB, SPEK |
| Description_INV | 2-1/16in. FUEL LEVEL; BFB; SPEK |
| Description_KEY | auto meter; autometer; fuel level; fuel; level; gauge; gage; instrument; electric; electronic; racing; drag; race; competition; race car; street rod |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation. |
| Description_MKT | Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation. |
| Description_SHO | GA 2" FUEL BFB SPEK |
| Description_SHO | GA 2in. FUEL BFB SPE |
| height | 4.75 |
| length | 5.5 |
| LTL | N |
| weight | 0.8 |
| width | 5.5 |
