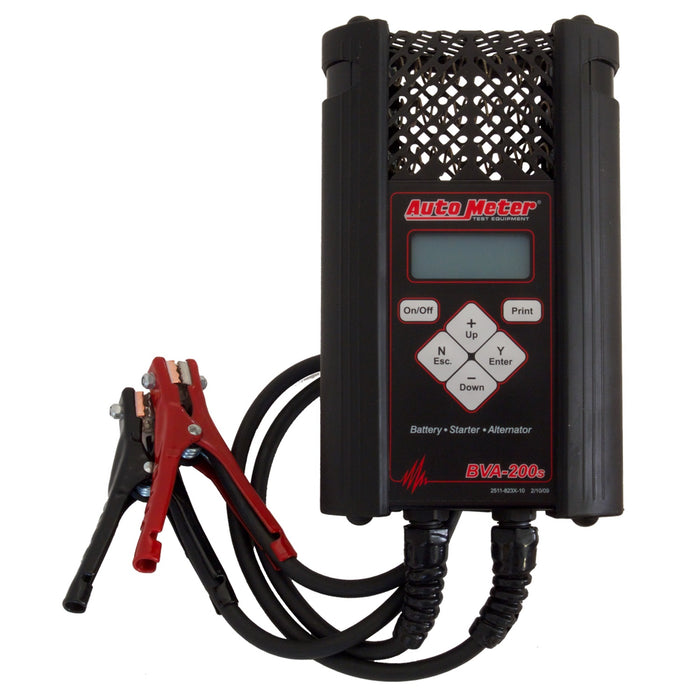

AutoMeter BVA-200S STARTING/CHARGING SYSTEM ANALYZER
by AutoMeter
SKU ds_BDHZ_BVA-200S
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,637.73
-
Original price
$1,637.73
Original price
$1,637.73
$1,637.73
$1,637.73
-
$1,637.73
Current price
$1,637.73
Availability:
Out of stock
Description
The BVA-200s is a durable hand held battery and electrical system tester with an on-board 120 amp load for heavy use in a professional shop environment. This tester comes with a rugged anodized aluminum housing, rubber hand grip, and 6 gauge leads with heavy duty clamps. Performs a complete electrical system test in 82 seconds!
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Add-On | AC-12;PR-12 |
| Description_ASC | TEST EQUIPMENT |
| Description_DEF | Battery Tester |
| Description_DES | STARTING/CHARGING SYSTEM ANALYZER |
| Description_EXT | BVA-200s; Professional Grade Intelligent Hand Held Electrical System Analyzer For 6V/12 Applications |
| Description_EXT | Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells. |
| Description_FAB | 16 Gauge, 20" leads with professional grade clamps that are easily field serviceable |
| Description_FAB | 20 in.-16 Gauge Test Leads |
| Description_FAB | Advanced Digital Pulse Load (DPL) technology |
| Description_FAB | Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable. |
| Description_FAB | Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result. |
| Description_FAB | English And Spanish Available |
| Description_FAB | English and Spanish language menus and test results. |
| Description_FAB | Intuitive Menu Driven Operation |
| Description_FAB | Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use. |
| Description_FAB | LCD Backlit Screen |
| Description_FAB | Measures Alternator Current Output/Voltage Regulation |
| Description_FAB | Measures Diode Ripple in a Pass/Fail Result |
| Description_FAB | Patented Test Process And Algorithm Allowing Operators Of This Product To Rapidly Measure A Batterys Ability To Provide Adequate Cranking Power To Start The Vehicle Without The Need For Time Consuming Manual Electrical System Load Tests. |
| Description_FAB | Stores Last 50 Results In Memory |
| Description_FAB | Temperature Added For Accuracy |
| Description_FAB | Tests 6 And 12 Volt Batteries |
| Description_FAB | Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells. |
| Description_FAB | This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. |
| Description_FAB | This Provides The Ultimate In Accurate High-Speed Battery Testing When Paired With Autometers Advanced Digital Pulse Load Technology Process, Reducing The Margin Of Operator Error And Workload During The Diagnosis. |
| Description_FAB | This Tester Has The Ability To Apply A Known Significant Load (True-Load) Directly Through The Tester Connections Allowing For A More Rapid And Accurate Test Of The Vehicles Battery, Starter, And Charging System By The Operator |
| Description_FAB | True-Load - AutoMeter equipment is unique compared with other products on the market |
| Description_FAB | Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell. |
| Description_FAB | which makes our products easier to use and more accurate. |
| Description_INV | STARTING/CHARGING SYSTEM ANALYZER |
| Description_KEY | Hand Held Electrical System Analyzer, handheld battery tester, tester, handheld tester, battery tester, bva200s, bva-200s, bva-200, bva200, auto meter, autometer, auto meter test equipment, test equipment, autometer test, autometer test equipment, |
| Description_KEY | Hand Held Electrical System Analyzer; handheld battery tester; tester; handheld tester; battery tester; bva200s; bva-200s; bva-200; bva200; auto meter; autometer; auto meter test equipment; test equipment; autometer test; autometer test equipment; |
| Description_LAB | Proposition 65 |
| Description_MKT | The BVA-200s is a durable hand held battery and electrical system tester with an on-board 120 amp load for heavy use in a professional shop environment. This tester comes with a rugged anodized aluminum housing, rubber hand grip, and 6 gauge leads with heavy duty clamps. Performs a complete electrical system test in 82 seconds! |
| Description_SHO | START/CHRG SYS TSTR |
| height | 7.5 |
| length | 18.0 |
| LTL | N |
| Title | BVA-200s; Professional Grade Intelligent Hand Held Electrical System Analyzer For 6V & 12 Applications |
| weight | 7.0 |
| width | 11.125 |
