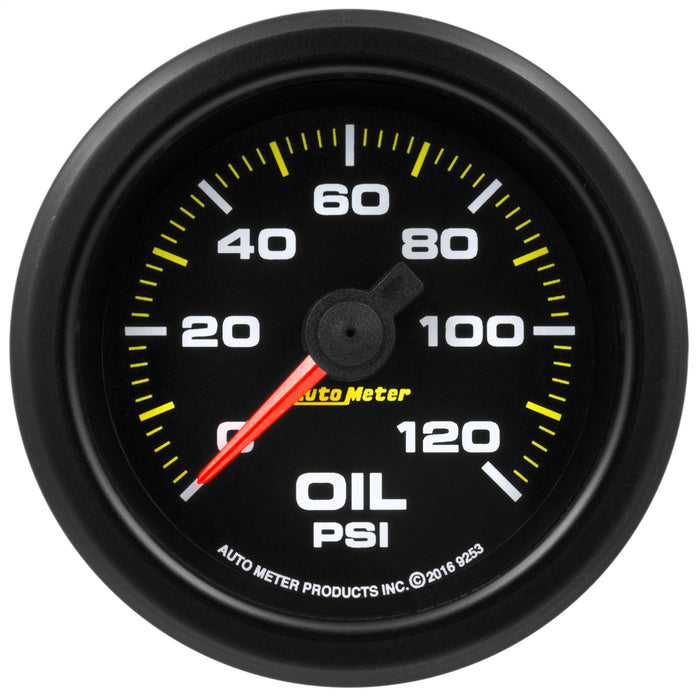

AutoMeter 9253 2 1/16in.; GAUGE; OIL PRESS; 120PSI; STEPPER MOTOR W/WARN; EXTREME ENVIRONMENT
by AutoMeter
SKU ds_BDHZ_9253
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$366.31
-
Original price
$366.31
Original price
$366.31
$366.31
$366.31
-
$366.31
Current price
$366.31
Availability:
Only 2 left!
Description
Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in waterproof sealing. Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter's Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won't find anywhere else. Our advanced 1/8" NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. Preconfigured warning points change the gauges LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag.
Resources
Installation InstructionsSpecifications
| Bezel Color | Black |
| Bezel Style | Stack |
| Description_ASC | EXTREME ENVIRONMENT |
| Description_DEF | Engine Oil Pressure Gauge |
| Description_DES | GAUGE, OIL PRESS, 2 1/16", 120PSI, STEPPER MOTOR W/WARN, EXTREME ENVIRONMENT |
| Description_DES | GAUGE; OIL PRESS; 2 1/16in.; 120PSI; STEPPER MOTOR W/WARN; EXTREME ENVIRONMENT |
| Description_EXT | 2 1/16in.; GAUGE; OIL PRESS; 120PSI; STEPPER MOTOR W/WARN; EXTREME ENVIRONMENT |
| Description_EXT | Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits |

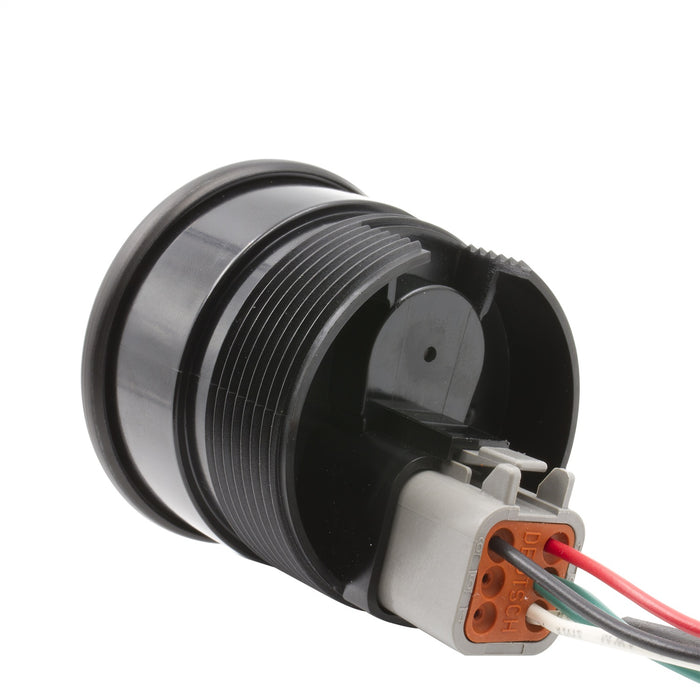

| Description_FAB | 6 Pin DTM Connector At Gauge |
| Description_FAB | 6 pin DTM connector at gauge makes for a sealed connection |
| Description_FAB | External momentary switch for control of brightness |
| Description_FAB | Preset backlight color change warning - 10 PSI |
| Description_FAB | Stepper motor design with unique multi-scale dial derived from NASCAR tech for optimized resolution and accuracy in critical operating range |
| Description_FAB | Ultra Light Weight Construction |
| Description_FAB | Ultra light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8" gauges, 60% lighter than Ultra-Lite 2-5/8" Mechanical, 25% lighter than Spek, 10% less than Elite |
| Description_FAB | Waterproof Design |
| Description_FAB | Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits |
| Description_FAB | White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions |
| Description_INV | 2-1/16" OIL PRESS, 0-120 PSI, DIRT SER |
| Description_INV | 2-1/16in. OIL PRESS; 0-120 PSI; DIRT SER |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in waterproof sealing. Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter's Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won't find anywhere else. Our advanced 1/8" NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. Preconfigured warning points change the gauges LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag. |
| Description_MKT | Designed For The Absolute Harshest Environments, The Autometer Extreme Environment Series Gauges Provide The Very Best In Waterproof Sealing. Seeing The Exact Fuel Pressure On Your Vehicle Can Mean The Difference Between Extracting The Most Performance Safely And Expensive Failures. The Life Blood Of Your Engine, A Lack Of Oil Pressure Is One Of The Most Catastrophic Scenarios That Can Happen. Knowing The Precise Pressure Is Critical To Both Its Longevity And Performance, As Well As Your Peace Of Mind. Autometers Digital Stepper Motor Oil Pressure Gauge Utilizes The Most Advanced Technology On The Market To Deliver Accuracy And Durability You Wont Find Anywhere Else. Our Advanced 1/8" Npt Solid State Pressure Transducer (Included) Provides The Best Possible Measurements With Unparalleled Resistance To Vibration And Heat. Preconfigured Warning Points Change The Gauges Led Illumination From White To Red, Allowing You To Concentrate On The Work At Hand Or Taking The Checkered Flag. |
| Description_SHO | GA 2" OILP 100PSI EE |
| Description_SHO | GA 2in. OILP 100PSI |
| Face Color | Black |
| Gauge Size | 2.0625 in. |
| Gauge Size | 52.4mm |
| Gauge Type | Oil Pressure |
| height | 4.75 |
| Hole Size | 0.0625 in. |
| Hole Size | 52.4mm |
| length | 5.5 |
| Lens | Flat Clear |
| Lighting Color | White |
| Lighting Type | LED |
| LTL | N |
| Movement Type | Electric Digital Stepper Motor |
| Outer Bezel Diameter | 2.250 in. |
| Pointer Color | Fluorescent Red |
| Pressure | 0-120 PSI |
| Size | 2.3125 in. |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 1.0 |
| width | 5.5 |
