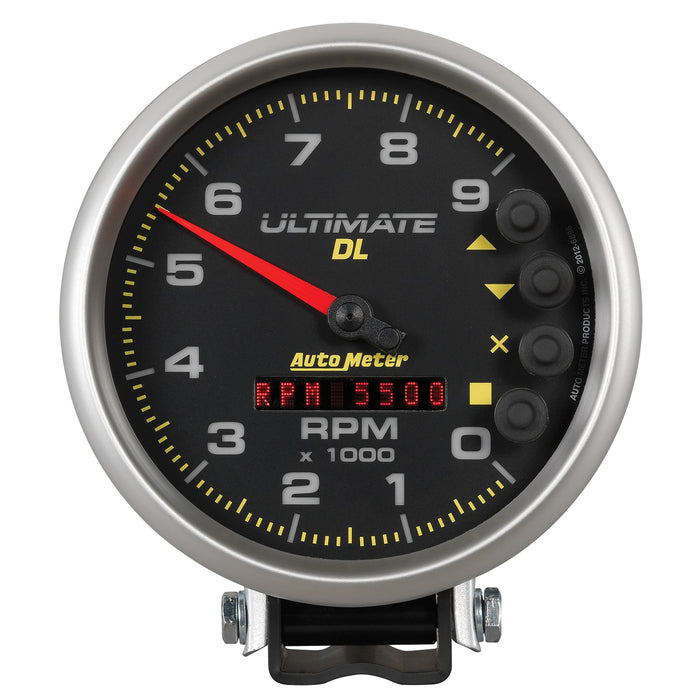

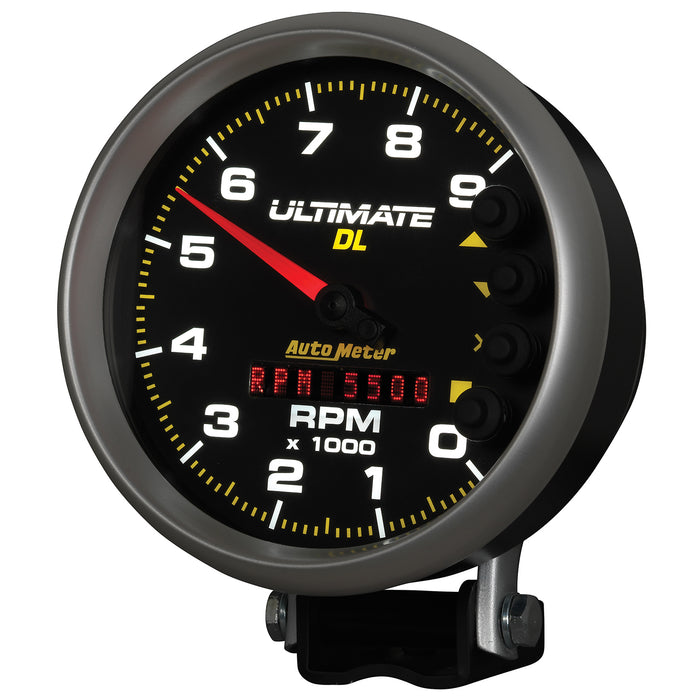

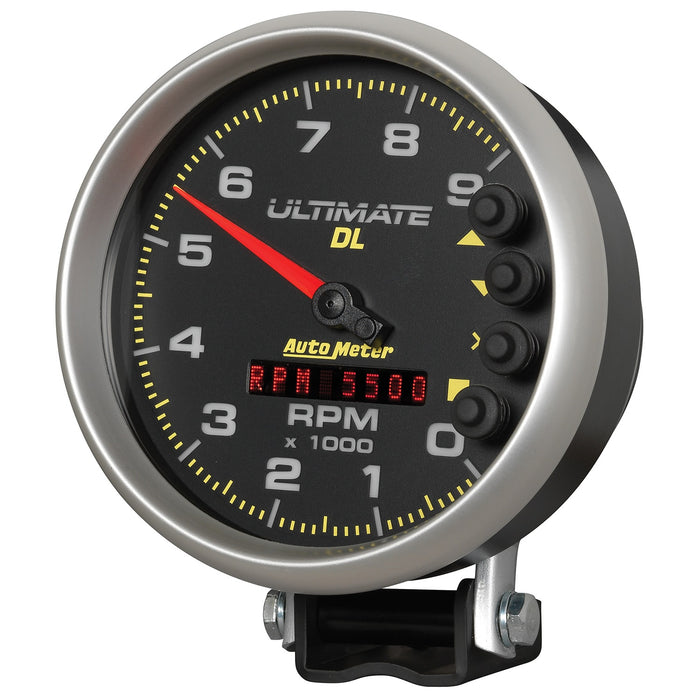

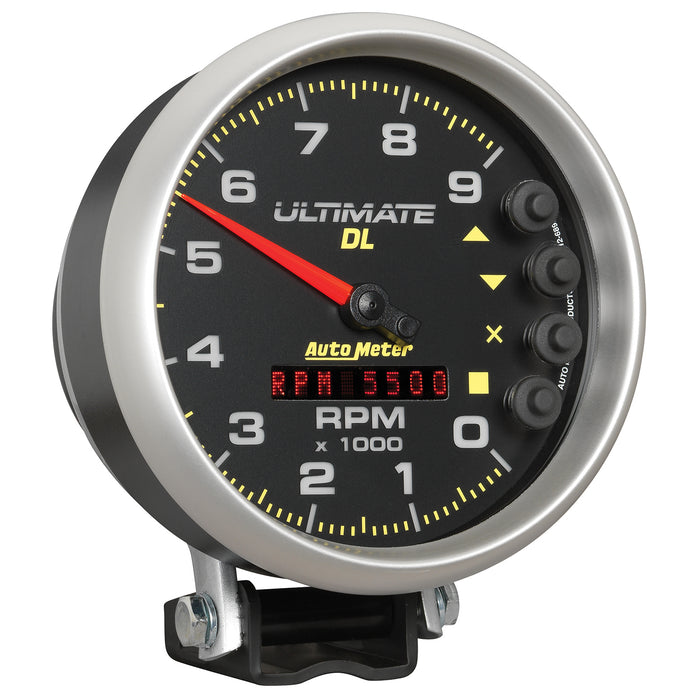

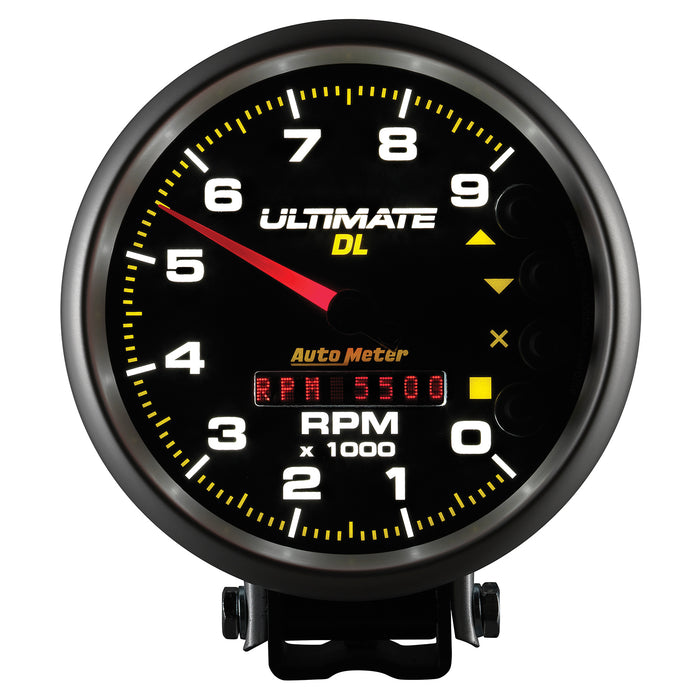

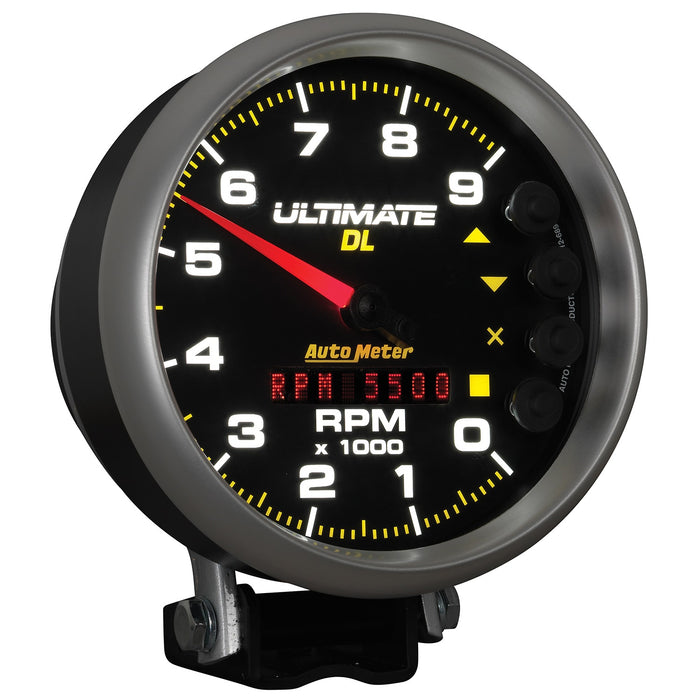

AutoMeter 6896 GAUGE; TACH; 5in.; 9K RPM; PEDESTAL; DATALOGGING; ULTIMATE DL PLAYBACK; BLACK
by AutoMeter
SKU ds_BDHZ_6896
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,302.20
-
Original price
$1,302.20
Original price
$1,302.20
$1,302.20
$1,302.20
-
$1,302.20
Current price
$1,302.20
Availability:
Only 2 left!
Description
AutoMeter Ultimate playback tachometers have helped drag racers trip the win lights for decades by providing the necessary data to protect engines, fine tune and diagnose clutch and converter strategies, nail shift points and improve launch consistency. The Ultimate DL expands upon the Ultimate III design adding even more critical performance data to your analysis toolbox (7 channels in total). Built around AutoMeters responsive competition grade movements, the Ultimate DL tracks the fastest revving engines with 0-11k RPM sweep time of just 333 milliseconds. 30% lighter than the Ultimate II designs which they replace, Ultimate DL tachometers still come packed with features. Record and playback up to 4 runs (60 sec. ea.) worth of engine and driveshaft RPM data, Lateral, Longitudinal, and Vertical G Forces, Air/Fuel ratio and a pressure channel of your choice or download high resolution (100 Hz) data to our easy to use DataPro software for more advanced analysis. 4 Stage shift light control is standard and a new and improved ARMS (automatic recording memory start) system makes for worry-free driver operation. The latest LED technology provides superior visibility, shock and vibration resistance while reducing power consumption requirements and expanded cylinder selection means they support more applications than ever before!
Resources
Installation InstructionsSpecifications
| Add-On | N/A |
| Description_ASC | ULTIMATE |
| Description_DEF | Tachometer Gauge |
| Description_DES | GAUGE, TACH, 5", 9K RPM, PEDESTAL, DATALOGGING, ULTIMATE DL PLAYBACK, BLACK |
| Description_DES | GAUGE; TACH; 5in.; 9K RPM; PEDESTAL; DATALOGGING; ULTIMATE DL PLAYBACK; BLACK |
| Description_EXT | 5in. TACHOMETER; 0-9000 RPM; PEDESTAL; ULTIMATE DL PLAYBACK; BLACK |
| Description_EXT | NHRA Competition legal |
| Description_FAB | 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system |
| Description_FAB | 12 And 16V Compatible |
| Description_FAB | Air-Core Electric Instruments Provide Quick And Accurate Readings |
| Description_FAB | Available pressure channel allows you to expand the Ultimate DL to additionally record fuel pressure, oil pressure, or brake pressure during your run. |
| Description_FAB | Available wideband channel allows you to expand the Ultimate DL to additionally record air/fuel ratio during your run. Playback the air/fuel ratio on the tachometer or download into DataPro to further analyze the data. |
| Description_FAB | Comparative run overlay allows you to compare current to best runs and see what happened not only when, but where! |
| Description_FAB | Compatible w/.5-6 Pulse Ignition Signals 1-12 Cylinder Engines |
| Description_FAB | Compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions. |
| Description_FAB | Download data to your PC via USB |
| Description_FAB | Includes award winning DataPro analysis software |
| Description_FAB | Modern LED Through-The-Dial Lighting |
| Description_FAB | Monitor and record Engine and Driveshaft RPM to analyze wheelspin, clutch slip, coverter lock up, gear changes and more! |
| Description_FAB | NHRA Competition legal |
| Description_FAB | Optimize Use Of Your Engines Power Band And Improve Vehicle Run Performance And Driver Gear Changes With An Optional Rapid Response, High Visibility User-Programmable 4-Stage Shift Light. |
| Description_FAB | Optimize Your Engines Power Band |
| Description_FAB | Playback the pressure channel on the tachometer or download into DataPro to further analyze the data. |
| Description_FAB | User-Programmable Shift Light |
| Description_INV | 5" ULTIMATE DL, 9,000 RPM, PRO-COMP |
| Description_INV | 5in. ULTIMATE DL; 9;000 RPM; PRO-COMP |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | AutoMeter Ultimate playback tachometers have helped drag racers trip the win lights for decades by providing the necessary data to protect engines, fine tune and diagnose clutch and converter strategies, nail shift points and improve launch consistency. The Ultimate DL expands upon the Ultimate III design adding even more critical performance data to your analysis toolbox (7 channels in total). Built around AutoMeters responsive competition grade movements, the Ultimate DL tracks the fastest revving engines with 0-11k RPM sweep time of just 333 milliseconds. 30% lighter than the Ultimate II designs which they replace, Ultimate DL tachometers still come packed with features. Record and playback up to 4 runs (60 sec. ea.) worth of engine and driveshaft RPM data, Lateral, Longitudinal, and Vertical G Forces, Air/Fuel ratio and a pressure channel of your choice or download high resolution (100 Hz) data to our easy to use DataPro software for more advanced analysis. 4 Stage shift light control is standard and a new and improved ARMS (automatic recording memory start) system makes for worry-free driver operation. The latest LED technology provides superior visibility, shock and vibration resistance while reducing power consumption requirements and expanded cylinder selection means they support more applications than ever before! |
| Description_SHO | 5" ULTIMATE DL, 9,00 |
| Description_SHO | 5in. ULTIMATE DL; 9; |
| height | 6.5 |
| length | 7.25 |
| LTL | N |
| Title | 5 in. TACHOMETER, 0-9000 RPM, PEDESTAL, ULTIMATE DL PLAYBACK, BLACK |
| weight | 3.9 |
| width | 8.25 |
