AutoMeter 6021 RACING INSTRUMENT DISPLAY; COLOR LCD; CONFIG; SHIFT/ALARM LIGHTS; DATALOGGING
by AutoMeter
SKU ds_BDHZ_6021
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$5,599.73
-
Original price
$5,599.73
Original price
$5,599.73
$5,599.73
$5,599.73
-
$5,599.73
Current price
$5,599.73
Availability:
Out of stock
Description

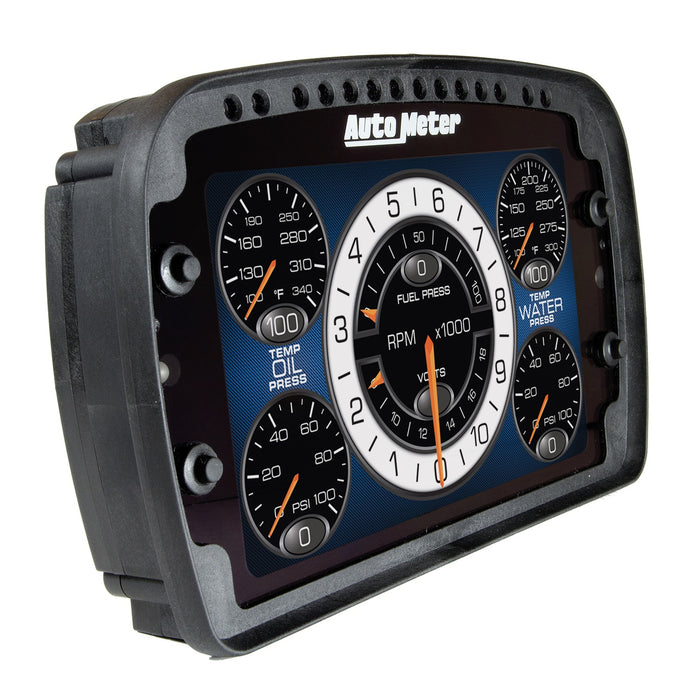

The AutoMeter Competition LCD Display is the next evolution of driver communication and data acquisition. Designed specifically for the harshest of environments, the carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. Our 7Ó LCD panel ensures easy visibility under all circumstances with a retina level pixel density, unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is fully configurable to your individual specifications. The system will accommodate four programmable data bus channels (2 CAN and 2 serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1 kHz and the internal memory allows for practically infinite recording time. User definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information.
Resources
Installation InstructionsSpecifications
| Add-On | N/A |
| Description_ASC | LCD Display |
| Description_DEF | Electronic Multi-Purpose Gauge |
| Description_DES | RACING INSTRUMENT DISPLAY, COLOR LCD, CONFIG, SHIFT & ALARM LIGHTS, DATALOGGING |
| Description_DES | RACING INSTRUMENT DISPLAY; COLOR LCD; CONFIG; SHIFT/ALARM LIGHTS; DATALOGGING |
| Description_EXT | 8-1/2in.W X 5-1/4in.H X 1-3/8in. D LCD DASH; USER CONFIGURABLE; |
| Description_EXT | Optically Bonded, Super Bright 7" Display Provides Unmatched Day and Night Time Visibility. |

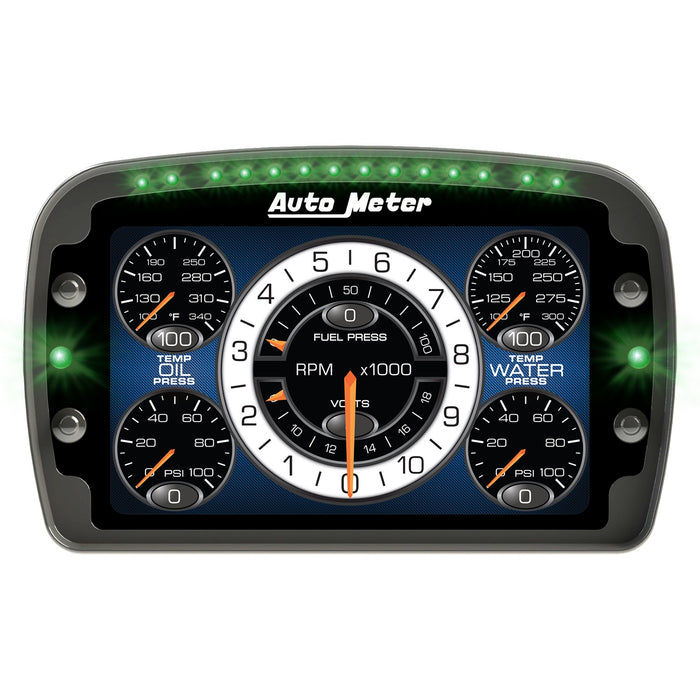

| Description_FAB | 16 Configurable Multi-color LED Indicator Lights |
| Description_FAB | 16 configurable multi-color LED indicator lights can be programmed for a wide variety of alarm and shift / gear change indication functions |
| Description_FAB | Analog and Digital Combination Offers Optimized Precision for Both Accurate Values and Rate of Change. |
| Description_FAB | Configurable CAN Input for PCM Connections, Up to 12 Discrete Sensor Inputs With Internal 3-axis Accelerometer and Voltage. |
| Description_FAB | DataLogging: 4 GB onboard memory, up to 128 channels of information, sampling rates up to 500Hz with select channels to 1kHz |
| Description_FAB | Dimensions - 8.3" Wide x 5.2" High x 1.4" Deep |
| Description_FAB | Dimensions 8.3 Wide X 5.2 High X 1.4 In. Deep |
| Description_FAB | Includes powerful DataPro Analysis Software. |
| Description_FAB | IP65 Sealed For Protection Against Dust And Moisture |
| Description_FAB | IP65 Sealed For Protection Against Dust and Moisture. |
| Description_FAB | Optically Bonded |
| Description_FAB | Optically Bonded, Super Bright 7" Display Provides Unmatched Day and Night Time Visibility. |

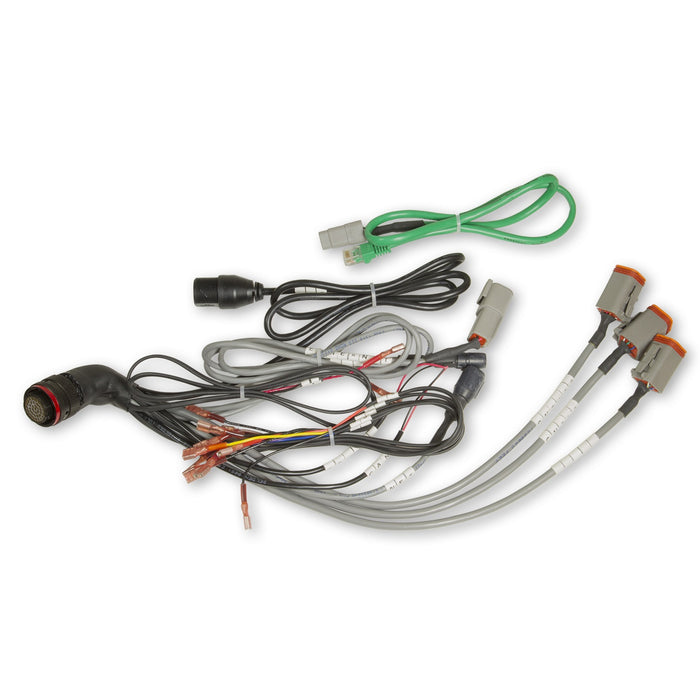

| Description_FAB | Single High Density Motorsport Connector and Starter Harness |
| Description_FAB | Super Bright 7 In. Display Provides Unmatched Visibility |
| Description_FAB | Surface Mounted and Remote Mounted Button Interface For Driver Input and Menu Navigation |
| Description_INV | LCD COMPETITION DRAG DASH |
| Description_LAB | Proposition 65 |
| Description_MKT | The AutoMeter Competition LCD Display is the next evolution of driver communication and data acquisition. Designed specifically for the harshest of environments, the carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. Our 7" LCD panel ensures easy visibility under all circumstances with a retina level pixel density, unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is fully configurable to your individual specifications. The system will accommodate four programmable data bus channels (2 CAN and 2 serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1 kHz and the internal memory allows for practically infinite recording time. User definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information. |
| Description_MKT | The AutoMeter Competition LCD Display is the next evolution of driver communication and data acquisition. Designed specifically for the harshest of environments, the carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. Our 7Ó LCD panel ensures easy visibility under all circumstances with a retina level pixel density, unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is fully configurable to your individual specifications. The system will accommodate four programmable data bus channels (2 CAN and 2 serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1 kHz and the internal memory allows for practically infinite recording time. User definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information. |
| Description_SHO | LCD COMPETITION DASH |
| height | 4.0 |
| length | 10.0 |
| LTL | N |
| Title | 8-1/2 in. W X 5-1/4 in. H X 1-3/8 in. D LCD DASH, USER CONFIGURABLE, |
| weight | 3.8 |
| width | 13.0 |
