AutoMeter 6014 RACE DASH DISPLAY; 10K RPM/WTRP/FUELP/OILP/OILT/WTMP/VOLT; PRO-COMP
by AutoMeter
SKU ds_BDHZ_6014
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,784.64
-
Original price
$2,784.64
Original price
$2,784.64
$2,784.64
$2,784.64
-
$2,784.64
Current price
$2,784.64
Description

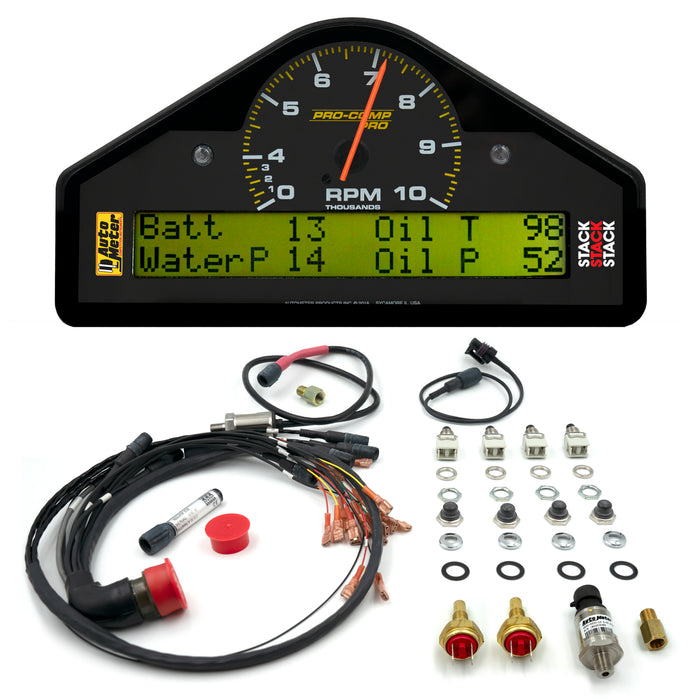

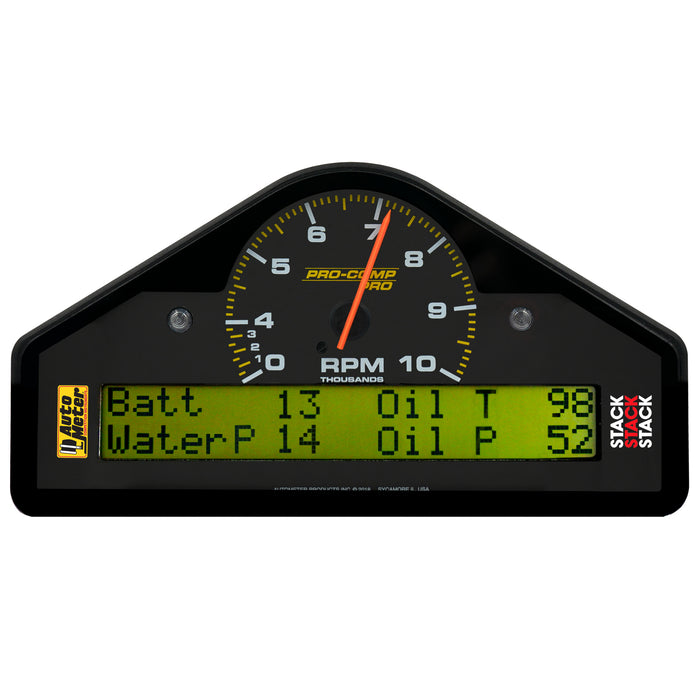

This AutoMeter Race display system is designed uniquely for the specialized conditions of dirt and asphalt modified and late model oval track racing. Monitor RPM, Oil Pressure, Oil Temperature, Water Temperature, Carbureted Fuel Pressure, Battery Voltage, and an optional Water Pressure channel (with purchase of separate sensor) on a single, compact and waterproof digital display. The signature analog pointer movement provides a quick and clear display for engine RPM while the digital display screen layout is preconfigured with multiple layouts for your axillary engine instrumentation needs. Customize warning points specific to your setup to receive driver alerts that include on screen text and illuminated alarm lights. Record an entire on track session's worth of data with the ability to play back your run right on the face of the dash display when you're back in the pits and preparing for your next heat. Includes qty. 2 1/8" NPT temperature sensors, qty. 1 1/8" NPT 15 PSI stainless steel fuel pressure sensor, qty. 1 1/8" NPT 150 PSI stainless steel oil pressure sensor, professional grade pre-terminated wiring loom, external push button controls with weather resistant caps, and operations manual, mounting template and brackets for installation.
Specifications
| Add-On | N/A |
| Description_DEF | Electronic Multi-Purpose Gauge |
| Description_DES | RACE DASH DISPLAY, 10K RPM/WTRP/FUELP/OILP/OILT/WTMP/VOLT, PRO-COMP |
| Description_DES | RACE DASH DISPLAY; 10K RPM/WTRP/FUELP/OILP/OILT/WTMP/VOLT; PRO-COMP |
| Description_EXT | RACE DASH; 0-4-10K RPM; PRO-COMP PRO |
| Description_FAB | Built In Warning and Shift Light LED |
| Description_FAB | Configurable Text Warning Messages |
| Description_FAB | Display Features Digital Values For Vehicle Parameters |
| Description_FAB | Incl. Oil Pressure Sender; Water Temp Sender |
| Description_FAB | Incl. Oil Temp and Fuel Pressure Sensors |
| Description_FAB | Monitors/Displays RPM/OilP/OilTemp/Water Temp/Voltage/FuelP |
| Description_FAB | Optional Shift Light Output |
| Description_FAB | Sinlge 19 Pin MIL Spec Connector |
| Description_FAB | Water and Dust Proof to IP67 Sealing Standard |
| Description_INV | RACE DASH, 0-4-10K RPM WITH WP |
| Description_INV | RACE DASH; 0-4-10K RPM WITH WP |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | This AutoMeter Race display system is designed uniquely for the specialized conditions of dirt and asphalt modified and late model oval track racing. Monitor RPM, Oil Pressure, Oil Temperature, Water Temperature, Carbureted Fuel Pressure, Battery Voltage, and an optional Water Pressure channel (with purchase of separate sensor) on a single, compact and waterproof digital display. The signature analog pointer movement provides a quick and clear display for engine RPM while the digital display screen layout is preconfigured with multiple layouts for your axillary engine instrumentation needs. Customize warning points specific to your setup to receive driver alerts that include on screen text and illuminated alarm lights. Record an entire on track session's worth of data with the ability to play back your run right on the face of the dash display when you're back in the pits and preparing for your next heat. Includes qty. 2 1/8" NPT temperature sensors, qty. 1 1/8" NPT 15 PSI stainless steel fuel pressure sensor, qty. 1 1/8" NPT 150 PSI stainless steel oil pressure sensor, professional grade pre-terminated wiring loom, external push button controls with weather resistant caps, and operations manual, mounting template and brackets for installation. |
| Description_MKT | This Autometer Race Display System Is Designed Uniquely For The Specialized Conditions Of Dirt And Asphalt Modified And Late Model Oval Track Racing. Monitor Rpm,Oil Pressure,Oil Temperature,Water Temperature,Carbureted Fuel Pressure,Battery Voltage,And An Optional Water Pressure Channel (With Purchase Of Separate Sensor) On A Single,Compact And Waterproof Digital Display. The Signature Analog Pointer Movement Provides A Quick And Clear Display For Engine Rpm While The Digital Display Screen Layout Is Preconfigured With Multiple Layouts For Your Axillary Engine Instrumentation Needs. Customize Warning Points Specific To Your Setup To Receive Driver Alerts That Include On Screen Text And Illuminated Alarm Lights. Record An Entire On Track Sessions Worth Of Data With The Ability To Play Back Your Run Right On The Face Of The Dash Display When Youre Back In The Pits And Preparing For Your Next Heat. Includes Qty. 2 1/8 Npt Temperature Sensors,Qty. 1 1/8 Npt 15 Psi Stainless Steel Fuel Pressure Sensor,Qty. 1 1/8 Npt 150 Psi Stainless Steel Oil Pressure Sensor,Professional Grade Pre-Terminated Wiring Loom,External Push Button Controls With Weather Resistant Caps,And Operations Manual,Mounting Template And Brackets For Installation. |
| Description_SHO | RACE DASH 10K RPM |
| height | 4.0 |
| length | 10.0 |
| LTL | N |
| Title | RACE DASH, 0-4-10K RPM, PRO-COMP PRO |
| weight | 4.0 |
| width | 13.0 |
