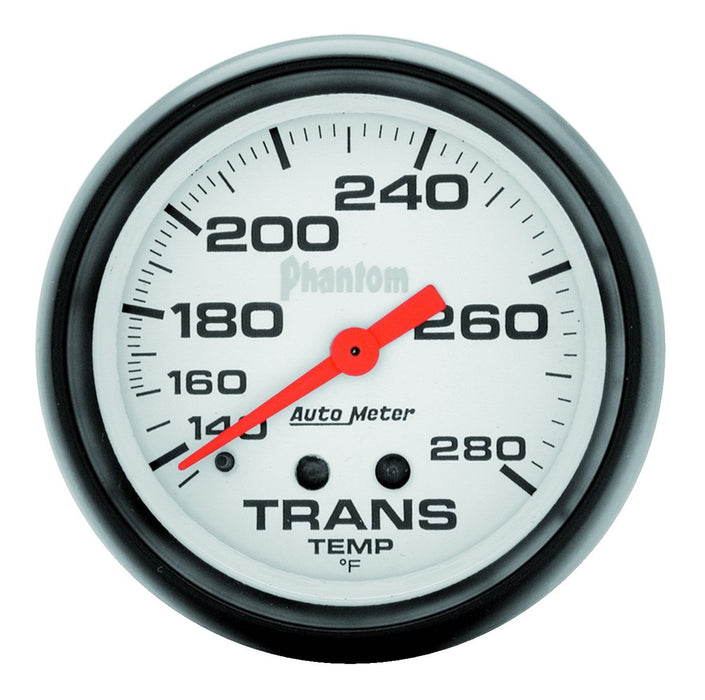

AutoMeter 5851 GAUGE; TRANSMISSION TEMP; 2 5/8in.; 140-280deg.F; MECHANICAL; PHANTOM
by AutoMeter
SKU ds_BDHZ_5851
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$238.27
-
Original price
$238.27
Original price
$238.27
$238.27
$238.27
-
$238.27
Current price
$238.27
Availability:
Only 2 left!
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8' Capillary Tube with a 1/2" NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
Resources
Installation InstructionsSpecifications
| Adapters Included | Yes |
| Analog Or Digital | Analog |
| Anti-Glare Enclosure Included | No |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Bulb and Socket Number | 3220 |
| Bulb Technology | Incandescent |
| Description_DES | GAUGE; TRANSMISSION TEMP; 2 5/8in.; 140-280deg.F; MECHANICAL; PHANTOM |
| Description_EXT | 2-5/8in. TRANSMISSION TEMPERATURE; 140-280 deg.F; PHANTOM |
| Description_FAB | Incandescent Lighting Illuminates Around Perimeter Of Dial |
| Description_FAB | Incl. 1/2 in. NPT Adapter |
| Description_FAB | Incl. Bulb And Socket Assembly; Red/Green Bulb Covers |
| Description_FAB | Incl. Mounting Hardware/Instructions |
| Description_FAB | Mechanical Instruments Provide Unmatched Accuracy |
| Description_FAB | No Electrical System Required For Gauge Operation |
| Description_INV | 2-5/8in. TRANS TEMP; 140-280`F; MECH; PH |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8' Capillary Tube with a 1/2" NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option. |
| Description_SHO | 2-5/8in. TRANS TEMP; |
| Electric Or Mechanical | Mechanical |
| Face Color | White |
| Fitting Type | 0.500 in. NPT |
| Fittings Included | Yes |
| Font Color | Black |
| Gauge Size | 2.625 in. |
| Gauge Size | 66.7mm |
| Gauge Type | Transmission Temperature |
| height | 6.25 |
| Hole Size | 2.625 in. |
| Hole Size | 66.7mm |
| length | 6.25 |
| Lens | Flat Clear |
| Light Covers Number | 3244/3215 |
| Lighting Color | White Incandescent |
| Lighting Type | Incandescent |
| LTL | N |
| Measurement | US |
| Mounting Bracket Number | 3245 |
| Movement Type | Mechanical |
| Number Color | Black |
| Outer Bezel Diameter | 2.875 in. |
| Pointer Color | Fluorescent Red |
| Size | 2.625 in. |
| Sweep | Full |
| Temperature | 140-280° F |
| Type | Mechanical |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 1.4 |
| width | 6.0 |
