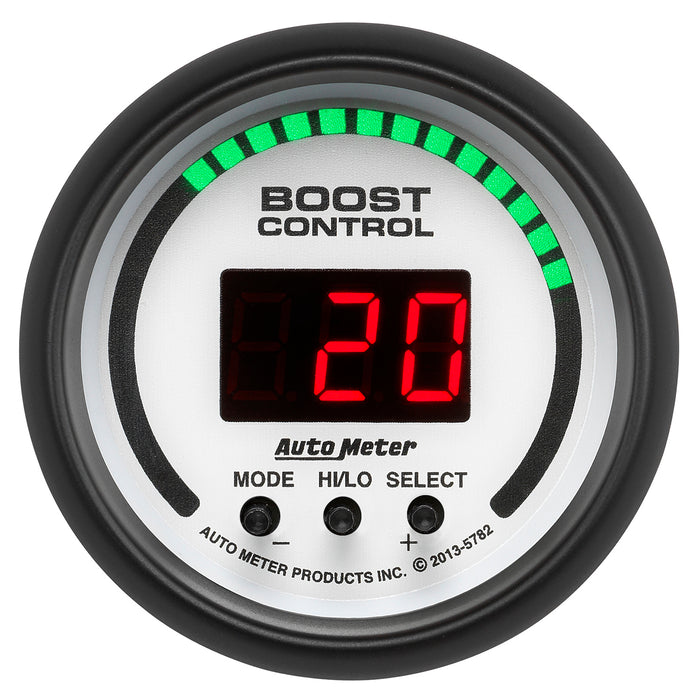

AutoMeter 5782 GAUGE; BOOST CONTROLLER; 2 1/16in.; 30INHG-30PSI; INCL. SOLENOID; DIGITAL; PHANT
by AutoMeter
SKU ds_BDHZ_5782
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$769.20
-
Original price
$769.20
Original price
$769.20
$769.20
$769.20
-
$769.20
Current price
$769.20
Availability:
Out of stock
Description
Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter's Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation.
Resources
Installation InstructionsSpecifications
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Boost | 0 to 30 PSI |
| Description_ASC | PHANTOM |
| Description_DEF | Turbocharger Electronic Boost Controller |
| Description_DES | GAUGE, BOOST CONTROLLER, 2 1/16", 30INHG-30PSI, INCL. SOLENOID, DIGITAL, PHANTOM |
| Description_DES | GAUGE; BOOST CONTROLLER; 2 1/16in.; 30INHG-30PSI; INCL. SOLENOID; DIGITAL; PHANT |
| Description_EXT | 2-1/16in. BOOST CONTROLLER; 30 IN HG/30 PSI; PHANTOM |
| Description_EXT | User programmable high/low boost, boost by gear, and boost by RPM. |
| Description_FAB | Configurable Data Logger Output For Easy ECU Integration |
| Description_FAB | Configurable Data Logger Output for Easy ECU or Data Logger Integration. |
| Description_FAB | Display readings in PSI, kPa, or BAR |
| Description_FAB | Displays Readings In PSI; kappa; BAR |
| Description_FAB | Exclusive Progressive Overboost Warning System and Peak Recall |
| Description_FAB | Exclusive Progressive Overboost Warning System/Peak Recall |
| Description_FAB | EZ On-Controller Programming |
| Description_FAB | EZ" On-Controller Programming - No Need for External Modules |
| Description_FAB | Ideal For Single Or Twin Turbo Applications |
| Description_FAB | Ideal for Single or Twin Turbo Turbocharged Applications. Not For Diesel Applications or Wastegate-less Setups |
| Description_FAB | Incl. 6 ft. Wiring Harness; MAP Sensor; Boost Control Valve |
| Description_FAB | Includes 6ft. Wire harness, MAP sensor, Boost Control Valve |
| Description_FAB | No Need For External Modules |
| Description_FAB | Not For Diesel Applications/Wastegate-less Setups |
| Description_FAB | Patented Pro-Control" Input Allows External Devices to Trigger Safety Mode and Prevent Engine Damage. Patented Pro-Control" Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection |
| Description_FAB | Peak Boost Recall |
| Description_FAB | Peak Boost Recall. |
| Description_FAB | Programmable high boost warning and shut down modes. |
| Description_FAB | User programmable high/low boost, boost by gear, and boost by RPM. |
| Description_FAB | User Programmable High/Low Boost; Boost By Gear; Boost By RPM |
| Description_INV | 2-1/16" BOOST CONTROLLER PHANTOM |
| Description_INV | 2-1/16in. BOOST CONTROLLER PHANTOM |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter's Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation. |
| Description_MKT | Offering An Unparalleled Feature Set, The Autometer Boost Controller Redefines What A Boost Controller Should Be. In Addition To The Standard Hi/Lo Mode, Boost By Rpm And Boost By Gear Give You Absolute Control Of Your Power Delivery. Initial Setup Is Is Incredibly Simple Using An Intuitive Menu And A Revolutionary Gear Capture Process. Configurable Warnings With Peak Recall And Boost Shutdown Are Standard Safety Features Designed To Protect Your Engine. A Scalable Display Range Allows You To Tailor Resolution To Show Only The Needed Range For Your Application. Autometers Pro Control Output System Is Equipped To Allow Electric Devices To Be Controlled At A User Defined Boost Pressure (Such As Water/Meth Injection, Nitrous, Etc.) As Well As Pro-Control Input To Default To Waste Gate Spring Pressure Should The Need Arise. Display Pressure In Psi, Bar, Or Kpa And Easily Data Log And Display With Or Without Realtime Barometric Compensation. A Direct Plug Wiring Harness Is Included For Ease Of Installation. |
| Description_SHO | 2-1/16" BOOST CONTRO |
| Description_SHO | 2-1/16in. BOOST CONT |
| Face Color | White |
| Gauge Size | 2.0625 in. |
| Gauge Size | 52.4mm |
| Gauge Type | Boost Controller |
| height | 5.5 |
| Hole Size | 0.0625 in. |
| Hole Size | 52.4mm |
| length | 5.25 |
| Lens | Flat Clear |
| Lighting Color | Red LED/Red Yellow Green Segments |
| Lighting Type | Digital LED |
| LTL | N |
| Movement Type | Digital |
| Outer Bezel Diameter | 2.250 in. |
| Pointer Color | N/A |
| Size | 2.3125 in. |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 1.3 |
| width | 5.5 |
