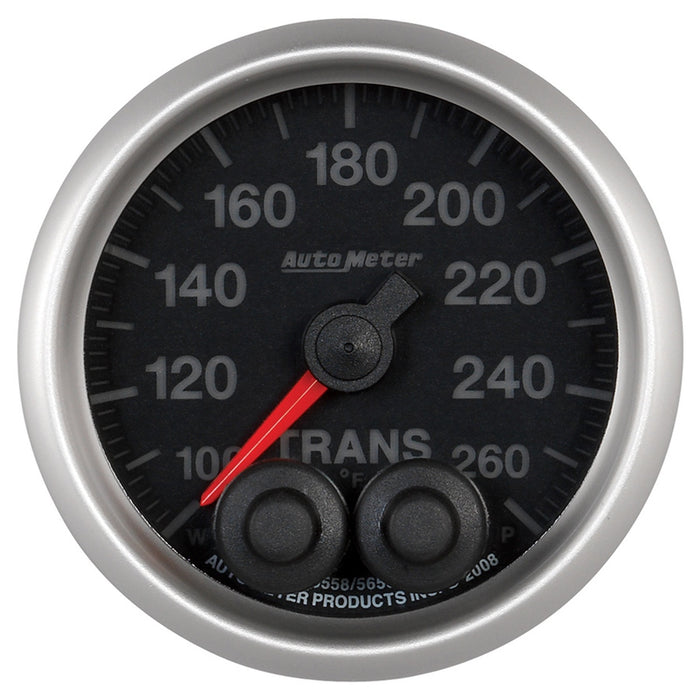

AutoMeter 5658 GAUGE; TRANS TEMP; 2 1/16in.; 260deg.F; STEPPER MOTOR W/PEAK/WARN; ELITE
by AutoMeter
SKU ds_BDHZ_5658
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$429.07
-
Original price
$429.07
Original price
$429.07
$429.07
$429.07
-
$429.07
Current price
$429.07
Availability:
Out of stock
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
Resources
Installation InstructionsSpecifications
| Adapters Included | Yes |
| Add-On | N/A |
| Analog Or Digital | Analog |
| Anti-Glare Enclosure Included | No |
| Bezel Color | Brushed Aluminum |
| Bezel Style | Super Bezel |
| Bulb Technology | LED |
| Description_ASC | ELITE |
| Description_DEF | Automatic Transmission Oil Temperature Gauge |
| Description_DES | GAUGE, TRANS TEMP, 2 1/16", 260?F, STEPPER MOTOR W/PEAK & WARN, ELITE |
| Description_DES | GAUGE; TRANS TEMP; 2 1/16in.; 260deg.F; STEPPER MOTOR W/PEAK/WARN; ELITE |
| Description_EXT | 2-1/16in. TRANSMISSION TEMPERATURE; 100-260 deg.F; ELITE |

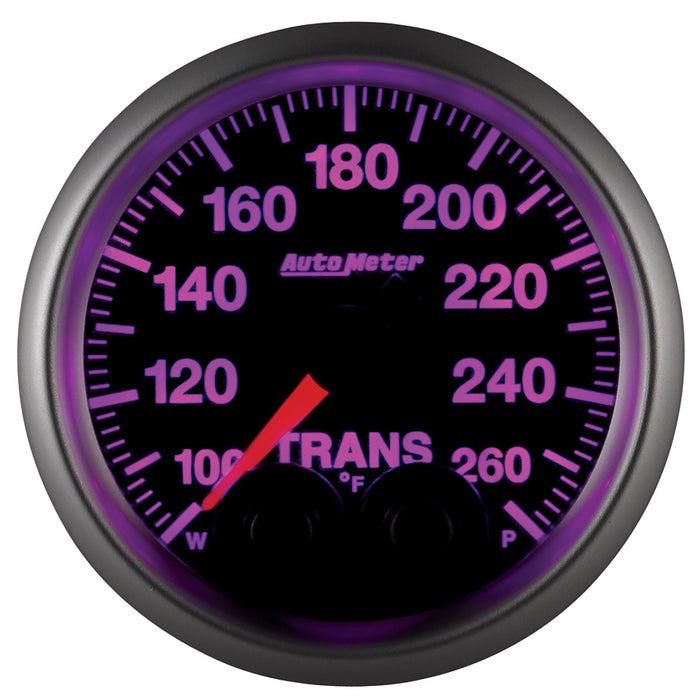

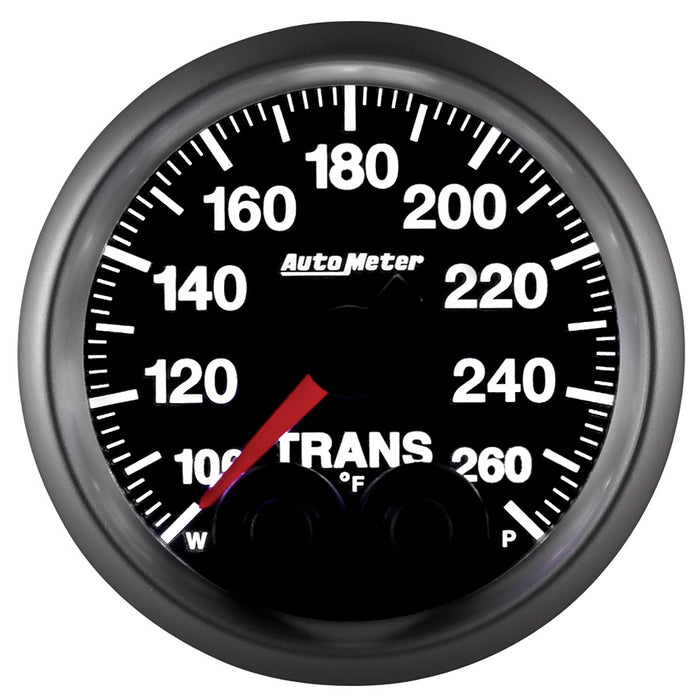

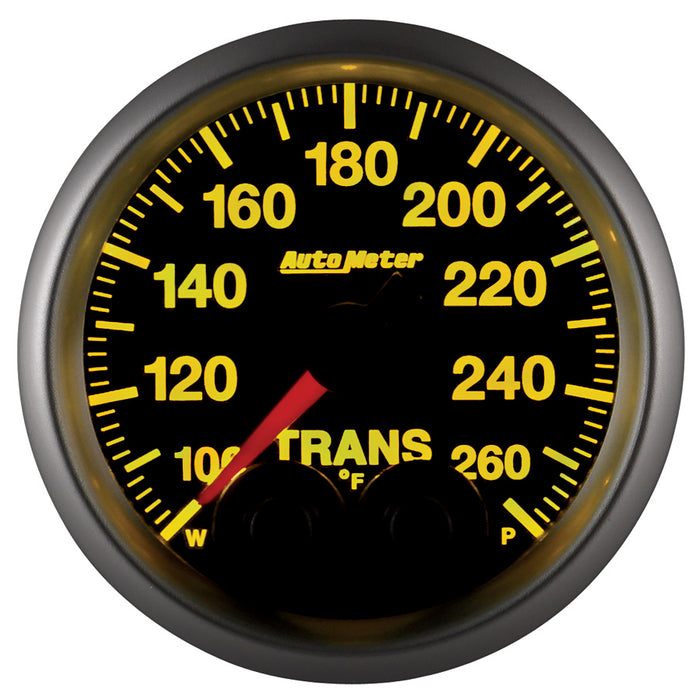

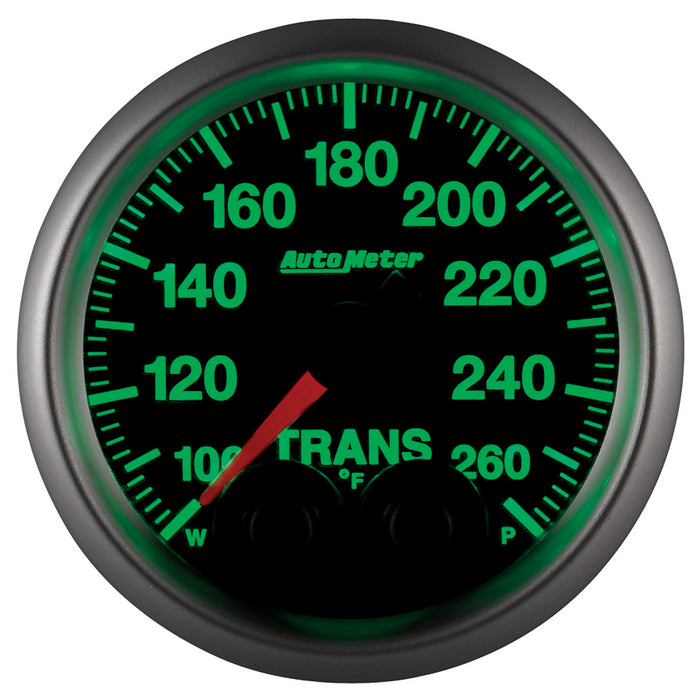

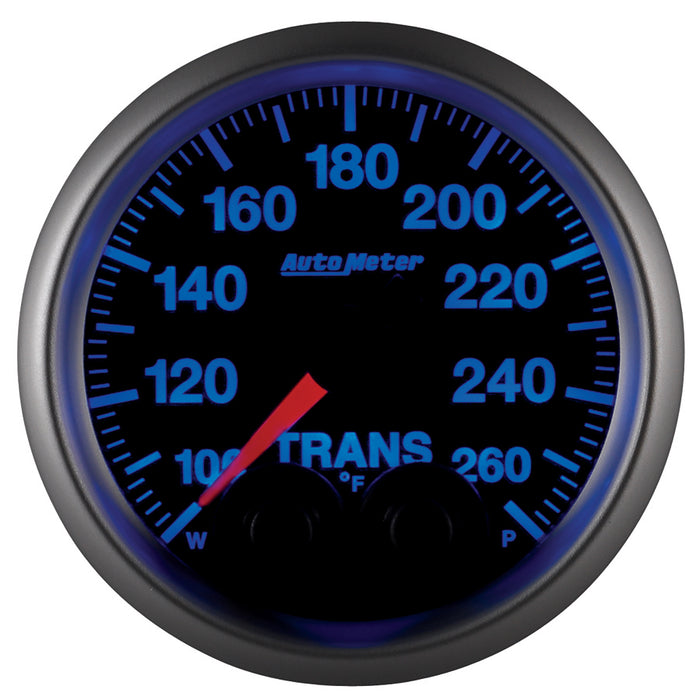

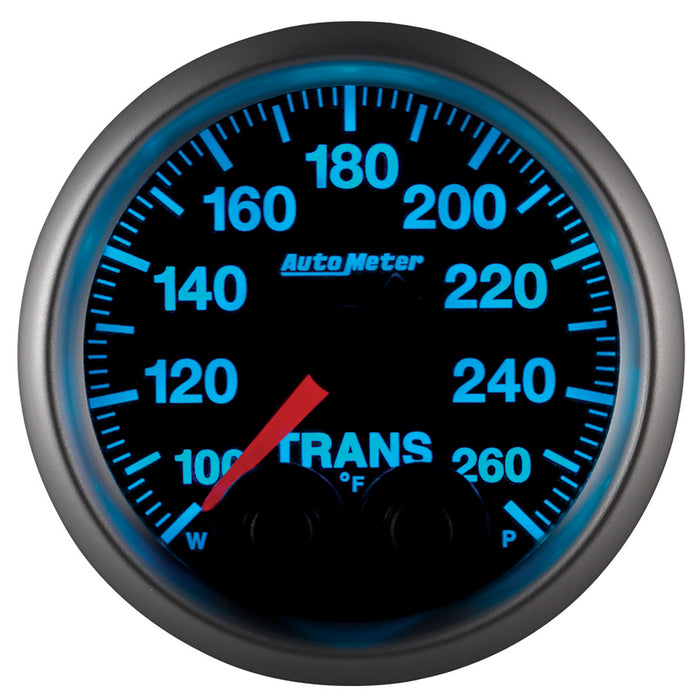

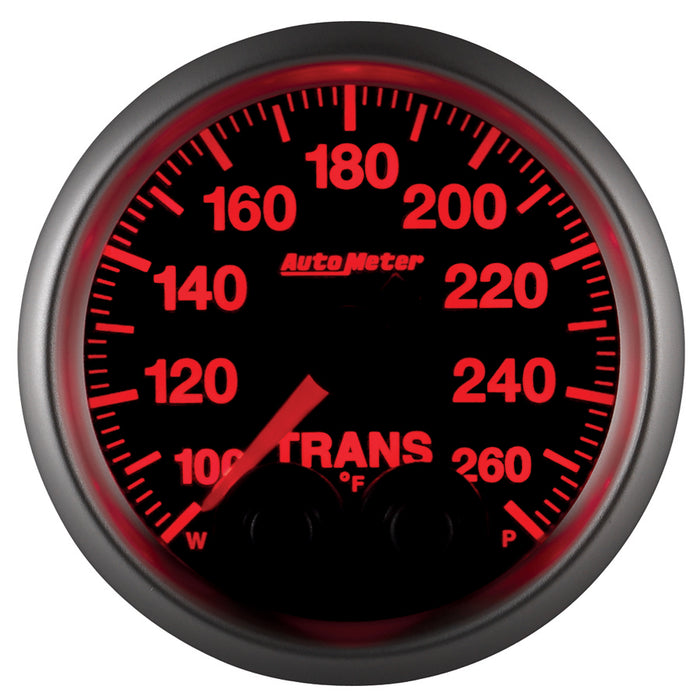

| Description_EXT | 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions |
| Description_FAB | 0-5V Output Provides ECU And Data Systems w/Vital Information |
| Description_FAB | 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions |
| Description_FAB | 7 User-Selectable Lighting Colors |
| Description_FAB | Acquire data for later review with one-touch Peak Recall functionality |
| Description_FAB | Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy While Keeping Hazardous Fluids Outside Of The Vehicle |
| Description_FAB | Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems |
| Description_FAB | Custom Programmable Activation And Deactivation Points |
| Description_FAB | Data logger 0-5V output provides ECU and data systems with vital information |
| Description_FAB | Digital Stepper Motor Provides Unmatched Accuracy |
| Description_FAB | One-Touch Peak Recall Functionality |
| Description_FAB | Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention |
| Description_FAB | Set Custom High And Low Point Alerts |
| Description_FAB | The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up |
| Description_INV | 2-1/16" TRANS TEMP, 100- 260`F, ELITE |
| Description_INV | 2-1/16in. TRANS TEMP; 100-260`F; ELITE |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | Transmission Fluid Temperature Is The Single Biggest Contributing Factor To The Lifespan Of Your Automatic Transmission. Having An Accurate, Realtime Measurement Allows You To Know When To Downshift Or When To Take Your Foot Out Of It. Whether You" Re Towing Or Simply Trying To Harness The Power Of A Built Or Boosted Motor, Autometers Digital Stepper Motor Trans Temp Gauge Will Give You The Most Accurate Possible Measurement For The Exact Temp Of Your Trans Fluid. Autometers Most Advanced 1/8" Npt Temperature Transducer Is Included As Well As A Direct Plug In Wiring Harness For Ease Of Installation. An Optional Trans Cooler Line Manifold Is Available For Another Easy Installation Option. |
| Description_MKT | Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option. |
| Description_SHO | GA 2" TRNST 260F ELI |
| Description_SHO | GA 2in. TRNST 260F E |
| Electric Or Mechanical | Electric; Digital Stepper Motor |
| Face Color | Black |
| Fitting Type | 0.375 in. NPT and 0.500 in. NPT |
| Fittings Included | Yes |
| Font Color | White |
| Gauge Size | 2.0625 in. |
| Gauge Size | 52.4mm |
| Gauge Type | Transmission Temperature |
| height | 4.5 |
| Hole Size | 0.0625 in. |
| Hole Size | 52.4mm |
| length | 4.75 |
| Lens | Flat Clear |
| Lighting Color | 7 User Selectable Colors |
| Lighting Type | LED |
| LTL | N |
| Measurement | US |
| Mounting Bracket Number | 2230 |
| Movement Type | Electric Digital Stepper Motor |
| Number Color | White |
| Outer Bezel Diameter | 2.250 in. |
| Pointer Color | Fluorescent Red |
| Sending Unit Included | Yes |
| Sending Unit Number | 2252 |
| Size | 2.3125 in. |
| Sweep | Full |
| Temperature | 100-260° F |
| Title | 2-1/16 in. TRANSMISSION TEMPERATURE, 100-260 Fahrenheit, ELITE |
| Type | Electrical |
| Voltage | 8-18 V |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov. |
| weight | 0.9 |
| width | 4.5 |
| Wire Harness Number | 5276 |
