ARB 5480100 Under Vehicle Protection Kit
by ARB
SKU ds_BHWQ_5480100
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $29.79
Original price
$1,218.57
Original price
$1,218.57
-
Original price
$1,218.57
Original price
$1,218.57
Current price
$1,188.78
$1,188.78
-
$1,188.78
Current price
$1,188.78
Availability:
4+ in stock
Description

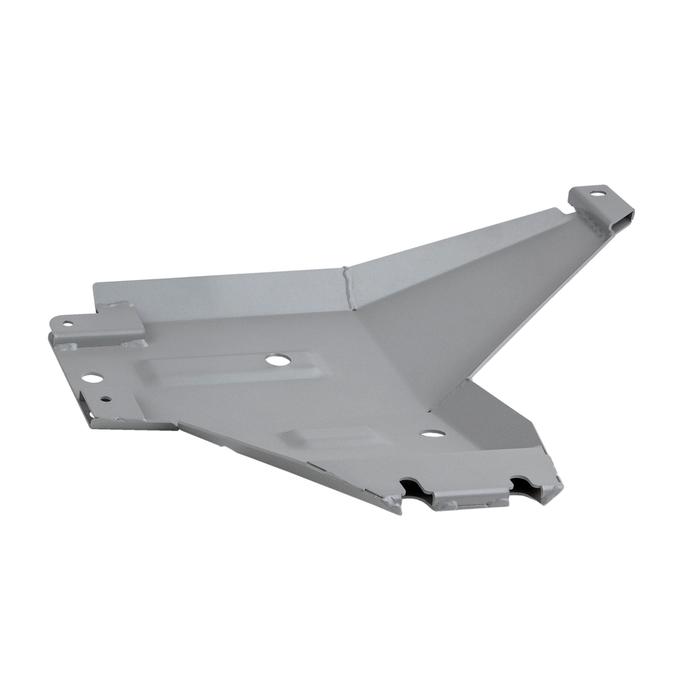

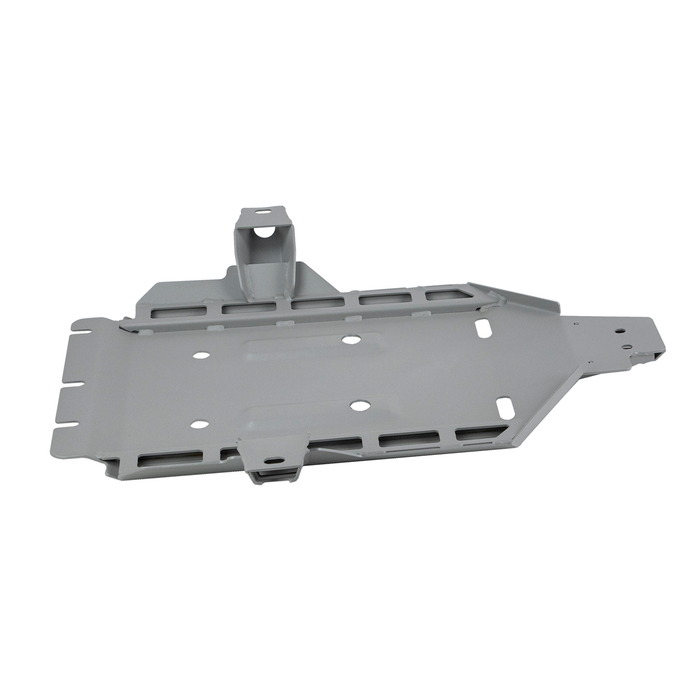

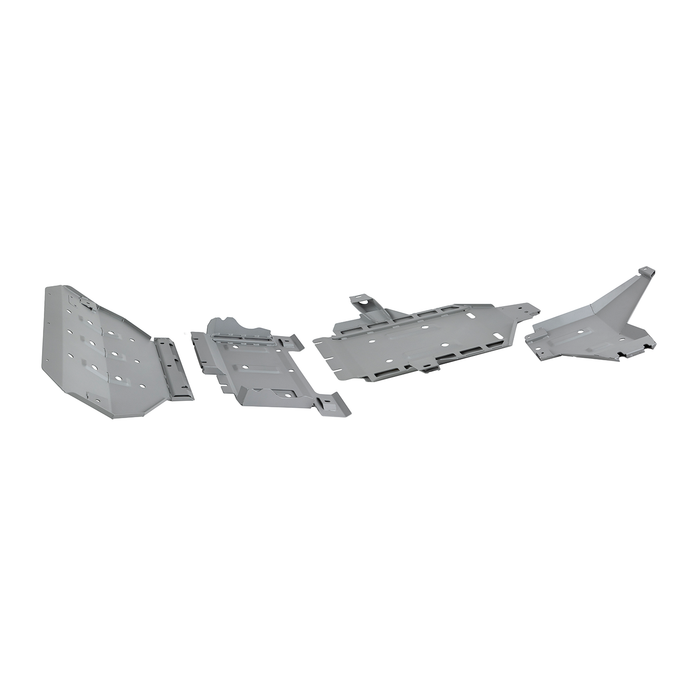

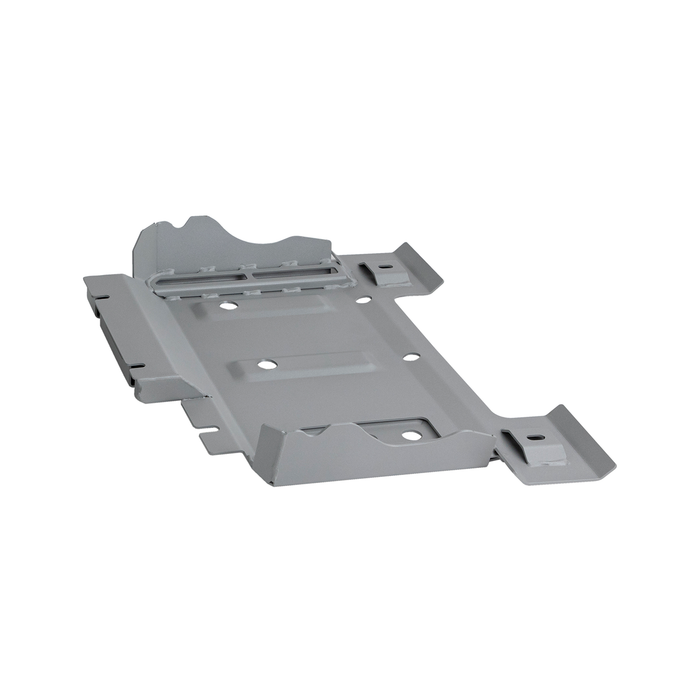

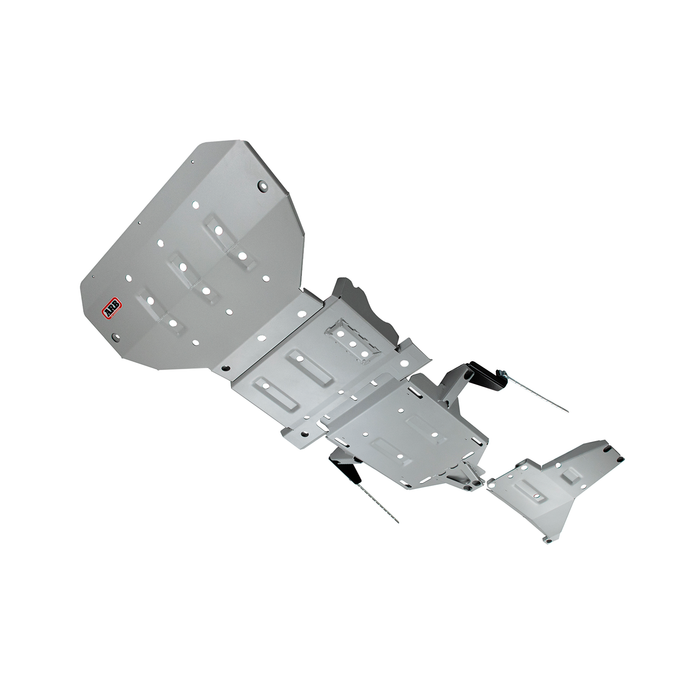

ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. The ARB UVP to suit the Ford Bronco consist of four carefully designed panels. The front, sump and transmission and transfer case panels bolt directly to the chassis to provide continuous under vehicle protection from the front bumper to the rear of the transfer case. Each UVP panel includes a return edge to add strength to the 3mm panel. To retain the strength and protection required of an ARB UVP, full vehicle servicing will require the removal and refit of panels to obtain access to drain plugs and other service points. This provides an opportunity to check for damage and buildup of dirt and foreign matter. Provision is provided to drain engine oil only with removable insert in the second panel. ARB's UVP will fit with or without an ARB front bumper. Fitment has not been confirmed with other bumper designs.
Resources
Installation InstructionsSpecifications
| Description_ASM | 2021 Ford Bronco (see Fitment Data tab) |
| Description_DEF | Skid Plate |
| Description_DES | Under Vehicle Protection |
| Description_DES | Under Vehicle Protection Kit |
| Description_EXT | ARB Under Vehicle Protection |
| Description_EXT | Designed to Protect Vital Underbody Components |
| Description_EXT | Under Vehicle Protection Kit; Protect Vital Underbody Components; 3mm Sheet Steel; Zinc-Plated; |
| Description_FAB | 3mm Press-Formed Folded Sheet Steel Adds Superior Strength |
| Description_FAB | 3mm press-formed, folded sheet steel adds superior strength |
| Description_FAB | All steel components are protected with either powder coat or zinc plating |
| Description_FAB | Components Protected w/Either Powder Coat Or Zinc Plating |
| Description_FAB | Kit Includes Illustrated Fitting Instructions |
| Description_FAB | Made From Laser Cut Sheet Steel |
| Description_FAB | Recessed Mounting Bolts Are Protected And Easy To Remove |
| Description_FAB | Recessed mounting bolts are protected and easy to remove for vehicle servicing |
| Description_FAB | Zinc Plated And Powder Coated In A Silver Textured Finish |
| Description_INV | ARB Under Vehicle Protection |
| Description_INV | UVP SUITS FORD BRONCO |
| Description_MKT | ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. The ARB UVP to suit the Ford Bronco consist of four carefully designed panels. The front, sump and transmission and transfer case panels bolt directly to the chassis to provide continuous under vehicle protection from the front bumper to the rear of the transfer case. Each UVP panel includes a return edge to add strength to the 3mm panel. To retain the strength and protection required of an ARB UVP, full vehicle servicing will require the removal and refit of panels to obtain access to drain plugs and other service points. This provides an opportunity to check for damage and buildup of dirt and foreign matter. Provision is provided to drain engine oil only with removable insert in the second panel. ARB's UVP will fit with or without an ARB front bumper. Fitment has not been confirmed with other bumper designs. |
| Description_SHO | Skid Plate |
| height | 8.0 |
| length | 45.0 |
| LTL | N |
| WARNING CA Proposition 65 | No |
| weight | 95.0 |
| width | 29.0 |
