Aeromotive Fuel System 17165 Dual Rail EFI Return Kit ?Phantom 200 & Installation Kit
SKU ds_BGPL_17165
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,299.07
-
Original price
$2,299.07
Original price
$2,299.07
$2,299.07
$2,299.07
-
$2,299.07
Current price
$2,299.07
Availability:
Out of stock
Description

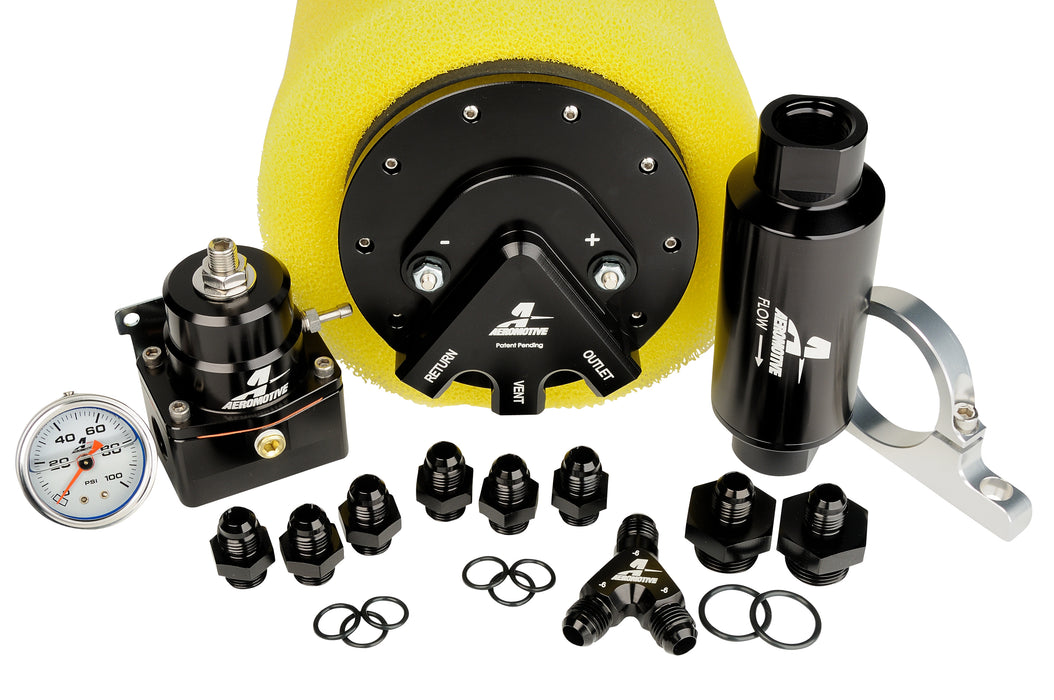

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200?LPH fuel pump.? Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 ? 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18689 Phantom 200, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 AN-06 Y-Block.
Specifications
| Description_ASC | Fuel System Phantom Kit; Includes all main fuel system components required, including 200lph pump. Creates a proper RETURN-STYLE EFI fuel system for engines with dual billet fuel rails. Does not include fuel line or hose ends. |
| Description_DEF | Fuel Pump Complete Kit |
| Description_DES | Dual Rail EFI Return Kit ?Phantom 200 & Installation Kit |
| Description_EXT | System, Fuel, Phantom 200, Return Style(Phantom 200, Filter, Filter Bracket, Regulator, Wiring Kit, Fittings, Y-Block, Gauge). |
| Description_INV | Aeromotive System/Kit |
| Description_MKT | These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200?LPH fuel pump.? Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 ? 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18689 Phantom 200, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 AN-06 Y-Block. |
| Description_SHO | System/Kit |
| height | 12.0 |
| length | 18.0 |
| LTL | N |
| weight | 1094.0 |
| width | 12.0 |
