Aeromotive Fuel System 13137 Extreme Flow EFI Regulator
SKU ds_BGPL_13137
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$474.22
-
Original price
$474.22
Original price
$474.22
$474.22
$474.22
-
$474.22
Current price
$474.22
Availability:
4+ in stock
Description

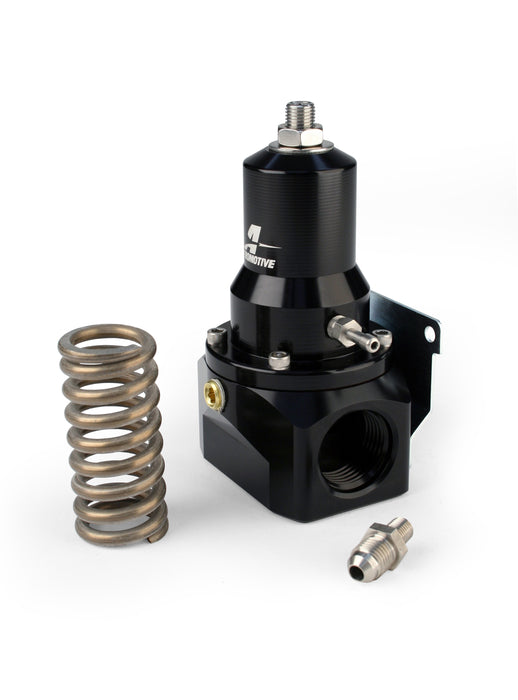

Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It?s designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500? high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Specifications
| Description_ASC | Adjustable Regulator, 30-120 PSI, (2) -12 inlets, -12 return |
| Description_DEF | Fuel Pressure Regulator |
| Description_DES | Extreme Flow EFI Regulator |
| Description_EXT | Pro Mod EFI Gear Pump Regulator, 30-120 PSI, .500 Valve, (2) -12 inlets, (1) -12 return. |
| Description_INV | Aeromotive Regulator |
| Description_MKT | Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It?s designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500? high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI. |
| Description_SHO | Regulator |
| height | 275.0 |
| length | 55.0 |
| LTL | N |
| weight | 14.0 |
| width | 55.0 |
