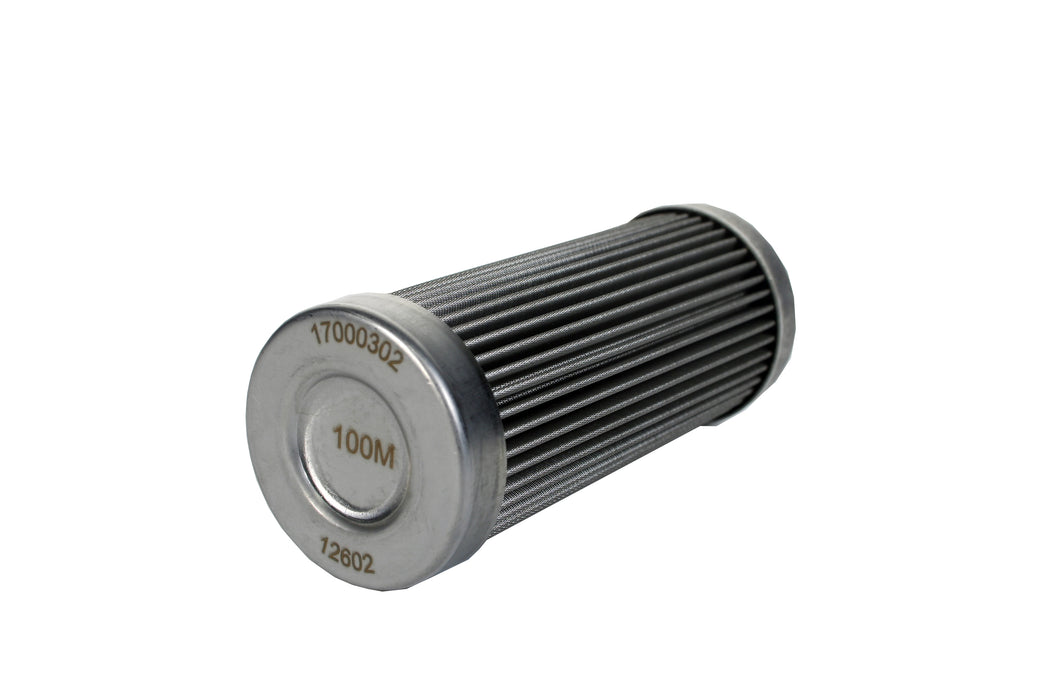

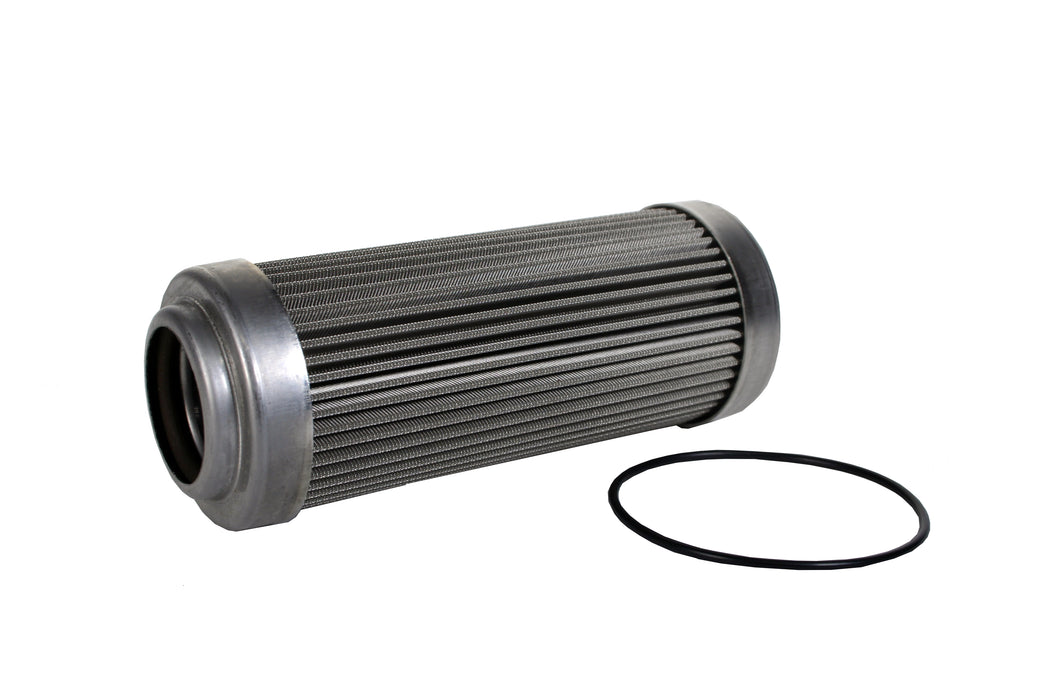

Aeromotive Fuel System 12602 100-m Stainless Element: ORB-12 Filter Housings
SKU ds_BGPL_12602
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$181.54
-
Original price
$181.54
Original price
$181.54
$181.54
$181.54
-
$181.54
Current price
$181.54
Availability:
Only 2 left!
Description
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 90-sq. inches of element surface area supports extreme flow while providing good service life. Cleanable 100-micron Stainless Steel mesh construction. Flow capacity of up to 1,600 GPH (26.6 GPM) with less than 1-PSI pressure drop. Supports up to 14,700 plus Flywheel HP, Forced Induction, on gasoline. Supports up to 10,600 Flywheel HP, Forced Induction on Ethanol. Supports up to 5,000 Flywheel HP, Forced Induction on Methanol. Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 Series Mechanical pump. Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.
Specifications
| Description_ASC | Pro Series 100-micron stainless steel replacement element. used for P/N 12302, 12332, 12309. |
| Description_DEF | Fuel Filter Element |
| Description_DES | 100-m Stainless Element: ORB-12 Filter Housings |
| Description_EXT | Replacement Element, 100-m Stainless Mesh, for 12302/12309 Filter Assembly, Fits All 2-1/2" OD Filter Housings. |
| Description_INV | Aeromotive Filter Element |
| Description_MKT | Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 90-sq. inches of element surface area supports extreme flow while providing good service life. Cleanable 100-micron Stainless Steel mesh construction. Flow capacity of up to 1,600 GPH (26.6 GPM) with less than 1-PSI pressure drop. Supports up to 14,700 plus Flywheel HP, Forced Induction, on gasoline. Supports up to 10,600 Flywheel HP, Forced Induction on Ethanol. Supports up to 5,000 Flywheel HP, Forced Induction on Methanol. Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 Series Mechanical pump. Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM. |
| Description_SHO | Filter Element |
| height | 2.0 |
| length | 913.0 |
| LTL | N |
| weight | 29.0 |
| width | 35.0 |
