Best TREMEC Manual Transmissions: Compare TKX, T-5 and Magnum Options

TREMEC Manual Transmissions include five-speed and six-speed options for different engines, vehicles and driving goals. Here is how to compare the TKX, T-5 and Magnum families, then work through the gearing, strength and swap details that determine whether a particular variant suits your build.

Key Takeaways

How the main TREMEC transmission families differ

The TKX and T-5 are five-speed families, while the T-56 and Magnum variants are six-speeds. A model name gives you a starting point, but the exact variant determines application details such as dimensions, shifter location and installation needs.

The TR-6060 is associated with the T-56 family, but an original-equipment transmission and an aftermarket Magnum are not automatically interchangeable. Compare the exact configuration rather than relying on a familiar family name.

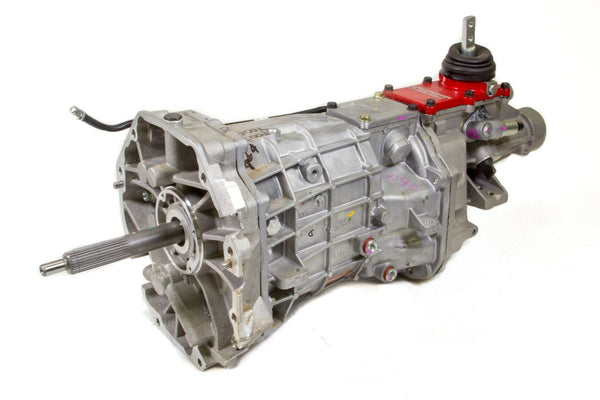

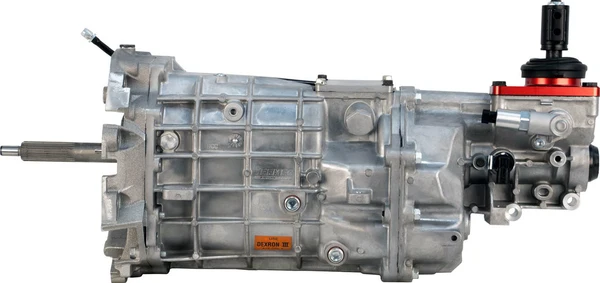

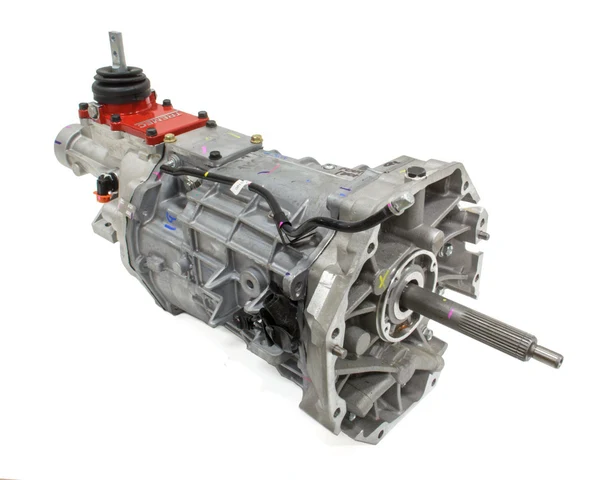

The TREMEC TUET16362 T56 Magnum-F 6-Speed for GM LS V8 F-Body is a named Magnum-F variant for a GM LS V8 F-Body application, priced at $5,656.99. Its application label makes it a useful example of why builders should identify the intended vehicle and engine combination before comparing features.

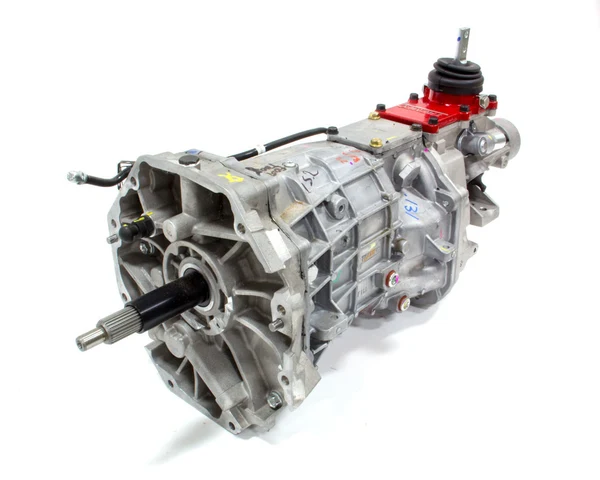

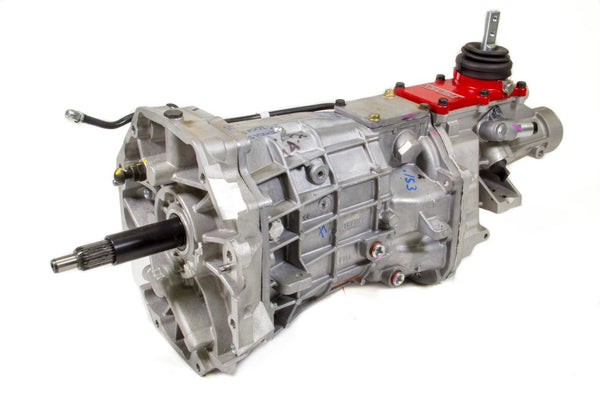

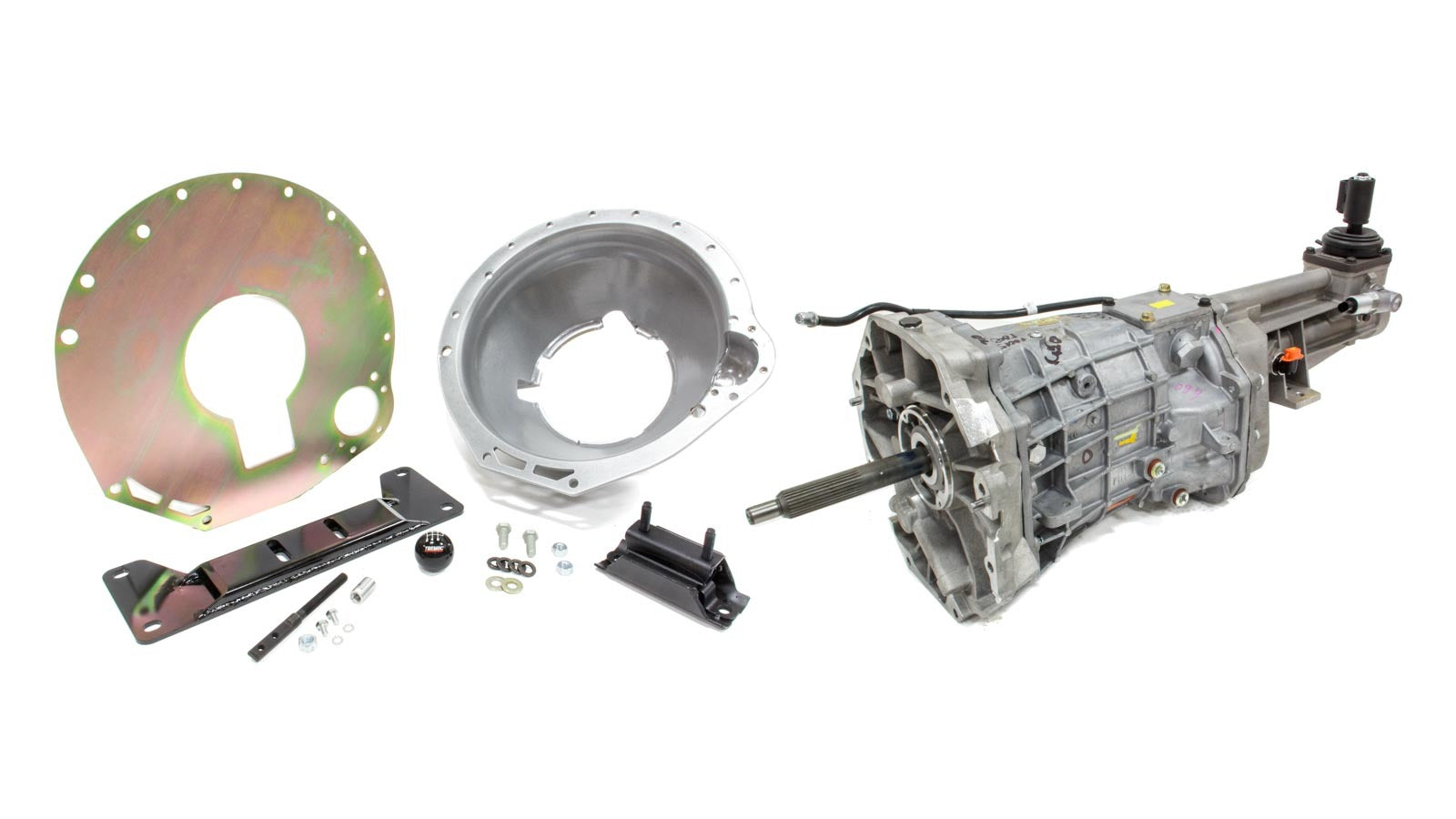

For a Ford Mod Motor, the TREMEC TUKT12021 T56 Magnum XL Trans Kit Ford Mod Motor is a separate named Magnum XL option at $7,918.99. Magnum-F and Magnum XL are distinct variants, so match their installation details to your specific build instead of assuming they interchange.

Keep OEM transmission naming separate from aftermarket swap options, and use the exact model and installation configuration when planning the build.

Choose five or six speeds around the way you drive

Choose by the full gear-ratio spread and the way you use the vehicle, not by gear count alone. A lower first gear can help the car launch, while an overdrive gear can reduce engine speed at cruising speed when it works with the engine, axle ratio and tire size.

Compare the ratio chart for the exact variant. A six-speed does not automatically improve acceleration or cruising comfort: its ratios may not suit your engine or final-drive gearing, and the extra gear only helps when it serves a purpose in the build.

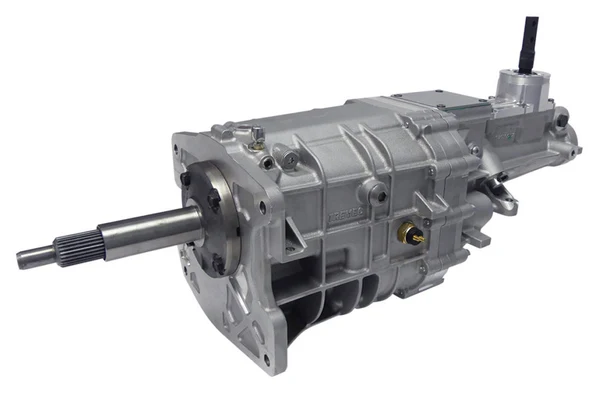

The TREMEC TCET18083 TKX 5-Speed Transmission GM 26-Spline is an aluminum five-speed with a 26-spline input and a 31-spline output, listed for GM applications. At $4,637.99, it offers a clear TKX example for builders comparing a five-speed layout with a six-speed option.

For a Ford five-speed example, the TREMEC 1352-000-251 T-5 Ford World Class Transmission has an aluminum construction, natural finish, 10-spline input and 28-spline output. At $3,239.99, it gives buyers another distinct family and input-spline configuration to consider.

A six-speed Magnum can suit a build that benefits from its specific ratio choices and installation arrangement. Weigh those advantages against available space and shifter position, especially in a classic car where the floor and console can limit placement.

Match the transmission to the engine and application

Start with the exact vehicle, engine and intended use. A broad label such as GM or Ford does not establish that the bellhousing pattern, clutch connection and complete transmission installation will suit a particular build.

Input spline count is an important part of that check because it needs to match the clutch disc. It does not, by itself, confirm the clutch, bellhousing or overall installation will work together.

The TREMEC TCET17765 TKX 5-Speed Transmission Ford 26-Spline has an aluminum construction, 26-spline input and 31-spline output. Its 26-spline input makes it a Ford TKX configuration to compare against the vehicle's clutch and application requirements, at $4,637.99.

A different Ford input option is the TREMEC TCET18086 TKX 5-Speed Transmission Ford 10-Spline, also at $4,637.99. It has a 10-spline input and 31-spline output, making the input configuration a key point of comparison for a Ford build.

This Ford TKX example shows how one model family can offer different input spline counts for different clutch connections. Keep the specific vehicle and engine combination at the centre of the choice, then build out the clutch and bellhousing match from there.

Balance transmission strength with the build

Match the transmission's published capacity to engine torque and the way the car will be driven. Vehicle weight, tire grip and hard launches all affect the loads the transmission sees, so gear count and reputation alone are poor measures of suitability.

Do not compare torque ratings across OEM and aftermarket variants unless the ratings use the same basis and conditions. A peak engine-output figure also leaves out shock loads: repeated hard launches place different demands on a drivetrain than steady street driving.

Plan the transmission, clutch and other driveline parts as a system. A compatible combination matters because one component with less capacity can limit the performance of the complete build.

Use a vehicle-specific fitment checklist

Before choosing a model, work through the fitment details against the actual vehicle and engine combination. For a classic-car swap, this step helps catch packaging conflicts that a broad model description cannot resolve.

• Engine and bellhousing: Check the engine-to-bellhousing pattern, bellhousing depth and starter arrangement together.
• Clutch and input shaft: Match the input shaft to the clutch disc spline, then account for input length, pilot support and clutch release arrangement.
• Tunnel and shifter: Compare transmission clearance and shifter location with the car's floor, shifter opening and console.
• Rear connection: Check the output shaft and yoke, driveshaft length and crossmember position against the vehicle.

All of these measurements and connections work together. A correct spline count cannot compensate for a mismatched bellhousing depth, restricted tunnel clearance or shifter position that conflicts with the interior.

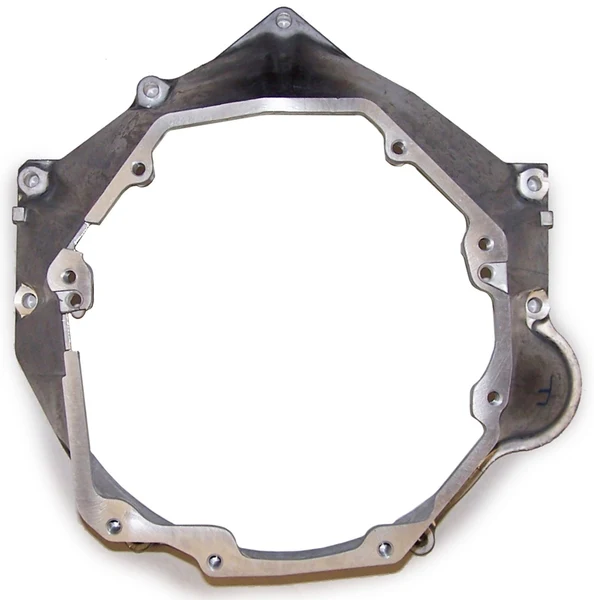

When the bellhousing is part of the swap, browse our bellhousing selection as you coordinate it with the engine, clutch and transmission. Keep the vehicle's starter arrangement and clutch release setup in the same fitment review.

Plan the supporting parts and installation details

A transmission swap involves more than the gearbox. Include the correct bellhousing, clutch components, mount or crossmember, driveshaft connection and shifter arrangement in the installation plan and budget.

Also account for reverse-light wiring and speedometer connections where applicable. Transmission variants can use different provisions, so plan controls and connections around the exact configuration being installed.

Check the shifter opening, console and interior trim before finalizing the shifter position. On a classic-car project, a small difference in placement can affect how the shifter sits in the cabin and how the surrounding trim fits.

Related model names do not promise identical dimensions or controls. Write an installation plan for the exact transmission variant, including its mounting, shifter, wiring and speedometer requirements.

Maintain the transmission with the correct fluid and service interval

Use the fluid specification for the exact transmission and application. Manual transmissions rely on fluid for lubrication and synchronizer operation, and a generic recommendation may not suit a particular design.

Check the fluid level and inspect for leaks during routine maintenance. Low fluid can compromise lubrication and contribute to wear, while the right service schedule depends on the transmission and how you use it.

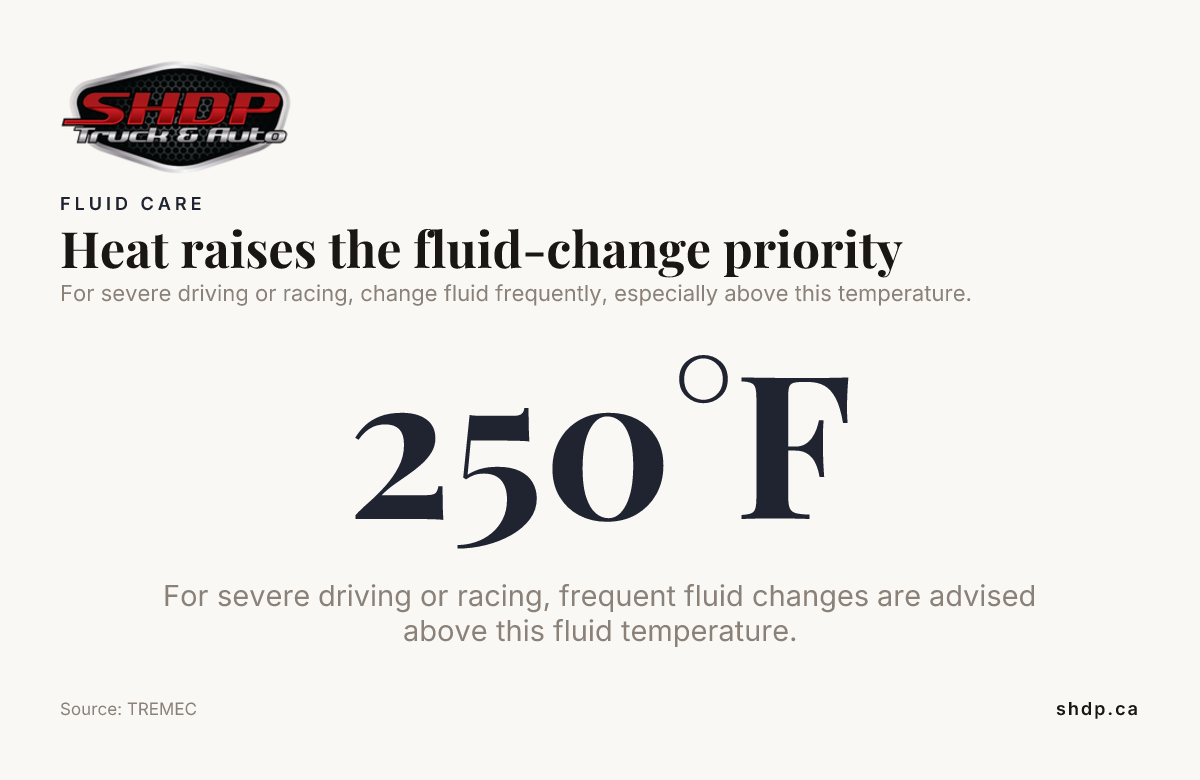

For severe driving or racing, TREMEC advises frequent fluid changes, especially when transmission-fluid operating temperatures exceed 250°F.

For severe driving or racing, change fluid frequently, especially above 250 degrees F.

Source: TREMEC

Do not carry a severe-use service interval over to every street vehicle, or apply a broad fluid recommendation without identifying the transmission. Match the fluid and maintenance schedule to the exact variant and its use.

Frequently Asked Questions

Is a TREMEC transmission suitable for a daily-driven car?

Yes, a TREMEC manual can suit a daily-driven car when its gearing and clutch setup match the engine and the traffic you regularly encounter. Pedal effort, cabin noise and how smoothly the clutch engages also shape how comfortable the car feels in everyday use.

Does a six-speed manual always improve fuel economy compared with a five-speed?

No. A six-speed only helps fuel economy when its cruising ratio keeps the engine in an efficient operating range, and driving conditions still affect real-world consumption.

What does a reverse lockout do on a manual transmission?

A reverse lockout helps prevent an unintended shift into reverse while the car is moving forward. Some systems use an electrical solenoid connected to the reverse-light circuit, so the wiring needs to match the transmission's control setup.

What can cause a manual transmission to grind after a swap?

Grinding can come from clutch drag, incorrect hydraulic adjustment or a pilot bearing that does not support the input shaft correctly. Worn synchronizers or a shifter linkage that is not moving the transmission fully into gear can also cause it.

Who manufactures TREMEC transmissions?

TREMEC manufactures manual transmissions for both original-equipment vehicles and aftermarket applications. The name covers multiple families and variants, so the brand alone does not identify the fitment or installation details.

What does double overdrive mean on a TREMEC Magnum?

Double overdrive describes a transmission with two gear ratios below a 1:1 ratio, giving the driver two higher cruising gears. The practical effect depends on the exact ratio set and how it pairs with the axle gearing and tires.

Is the TREMEC a good transmission?

TREMEC transmissions can be a good choice when the specific model is suited to the engine, vehicle, driving style and installation. Quality alone does not determine whether a particular transmission is the right fit for a build.

What is the strongest 6 speed manual transmission?

There is no single strongest six-speed manual for every application. Strength depends on the exact transmission variant and how it is used. Compare the published capacity with engine torque, vehicle weight, tire grip and launch conditions.

Which cars have a TREMEC transmission?

TREMEC transmissions are used in a range of original-equipment vehicles, and aftermarket versions are also fitted in swaps. Variants are available for GM LS V8 F-Body and Ford Mod Motor applications, but fitment depends on the exact transmission and vehicle configuration.

The right TREMEC starts with the right build plan

The best TREMEC manual transmission choice comes from matching the exact variant to your engine, application, gearing goals and installation space. Compare the TKX and T-5 five-speeds with the T-56 and Magnum six-speeds by ratio spread, fitment and drivetrain demands, then plan the clutch, bellhousing, shifter and supporting parts as one complete swap.
