Description

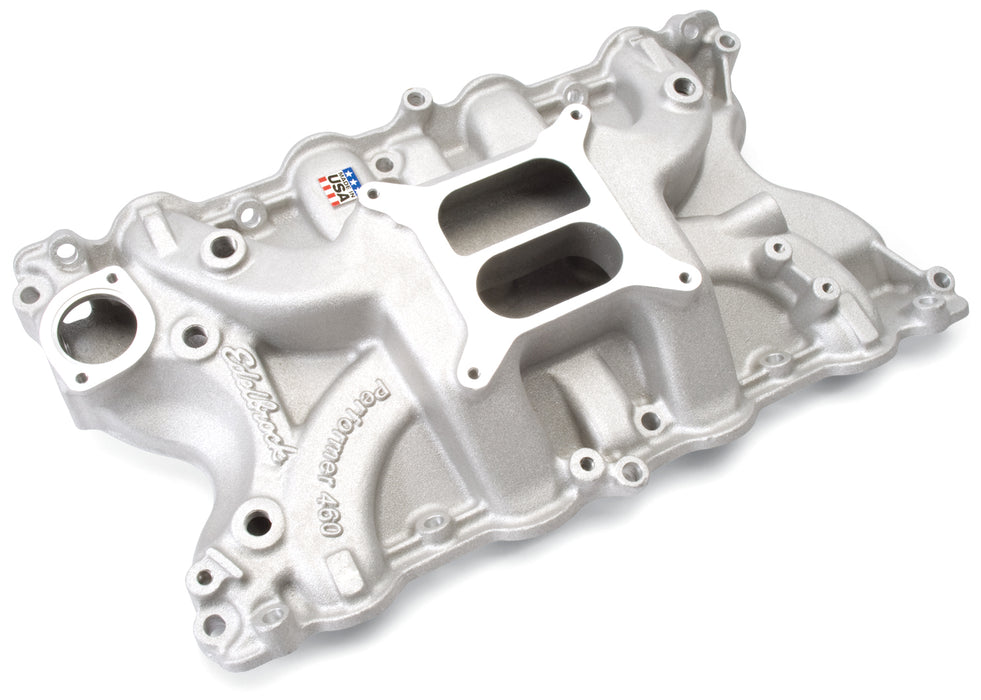

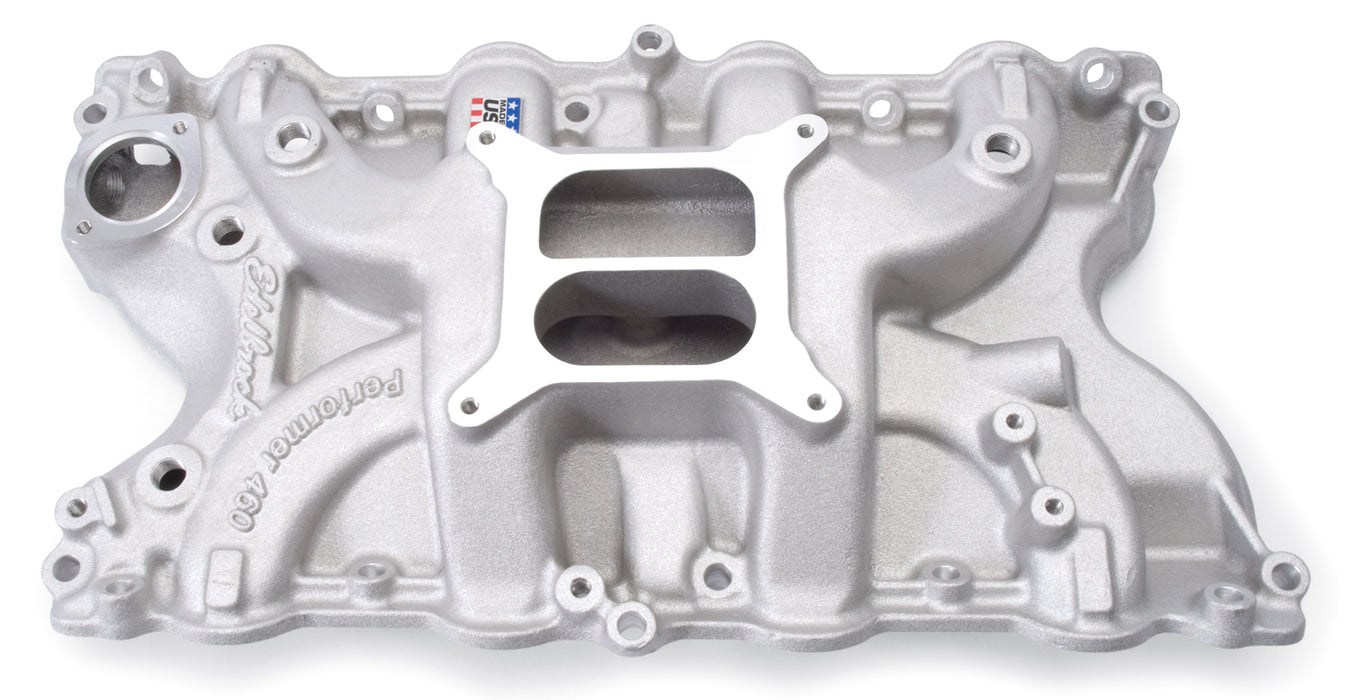

Edelbrock part #2166 Performer 460 intake manifold is designed for street 429/460 c.i.d. Ford V8's. Will not fit 429 Cobra-Jets or 1966-68 462 Lincolns and will not accept stock spread-bore carb. Will not fit 1988 and later models. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Must use stock OE EGR plate!
Specifications
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.120 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 460 Intake Manifold for Big-Block Ford 429/460 V8 Engines. Will Not Fit Cobra Jet Heads or OEM 4-bbl Carb. Accepts 4150-Style Square-Bore Carburetors. Non-EGR. Will not fit 1988 and later models. |
| Description_FAB | Accepts A/C And Alternator |
| Description_FAB | Accepts Exhaust Heated Chokes |
| Description_FAB | Accepts Late-Model Choke; Water Neck; And HEI |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | Performer BBF Intake Manifold 429-460 |
| Description_KEY | 2166; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer 460 Intake Manifold #2166 for Ford 429/460, Non-EGR, Satin Finish |
| Description_LAB | Performer 460 Intake Manifold #2166 for Ford 429/460; Non-EGR; Satin Finish |
| Description_MKT | Edelbrock part #2166 Performer 460 intake manifold is designed for street 429/460 c.i.d. Ford V8's. Will not fit 429 Cobra-Jets or 1966-68 462 Lincolns and will not accept stock spread-bore carb. Will not fit 1988 and later models. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Must use stock OE EGR plate! |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.12" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm, for automatic transmissions use #1483 and #1495 or #1844 |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-3.75", B-4.49" same as stock |
| Description_TRA | Port exit dimensions: 1.65" x 1.96" |
| Description_TRA | Recommended intake gasket: Edelbrock #7223 or Fel-Pro #MS96018 |
| Description_TRA | Replacement EGR plate gaskets: Edelbrock #3898 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7223 or Fel-Pro # MS96018 • Replacement EGR plate gaskets: Edelbrock # 3898 • Manifold height: A-3.75in.; B-4.49in. same as stock • Carb pad height: 4.12in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm; for automatic transmissions use # 1483 and # 1495 or # 1844 • Port exit dimensions: 1.65in. x 1.96in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.750 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 4.490 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Ford |
| weight | 19.2 |
| width | 14.75 |
